Quick Details
-
Brand Name:
-
HiOSO
-
Model Number:
-
FOWAY1510PFST
-
Place of Origin:
-
China
-
PoE Ports:
-
8 10/100/1000M RJ45 PoE ports
-
Uplink Ports:
-
1 1000M SFP uplink port and 1 10/100/1000M RJ45 uplink port,
-
Transimission Rate:
-
10/100/1000Mbps
-
MAC:
-
16K
-
Power:
-
DC48V(External), AC110V/220V & DC48V redundant power back up(Internal)
-
Working temperature:
-
-10~60℃
-
Warranty:
-
3 Years
-
Certification:
-
ce
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
14.8G
-
Brand Name:
-
HiOSO
-
Model Number:
-
FOWAY1510PFST
-
Place of Origin:
-
China
-
PoE Ports:
-
8 10/100/1000M RJ45 PoE ports
-
Uplink Ports:
-
1 1000M SFP uplink port and 1 10/100/1000M RJ45 uplink port,
-
Transimission Rate:
-
10/100/1000Mbps
-
MAC:
-
16K
-
Power:
-
DC48V(External), AC110V/220V & DC48V redundant power back up(Internal)
-
Working temperature:
-
-10~60℃
-
Warranty:
-
3 Years
-
Certification:
-
ce
Product Description
FOWAY1510PFST 8 1000M PoE + 1 1000M SFP+1 1000M uplink

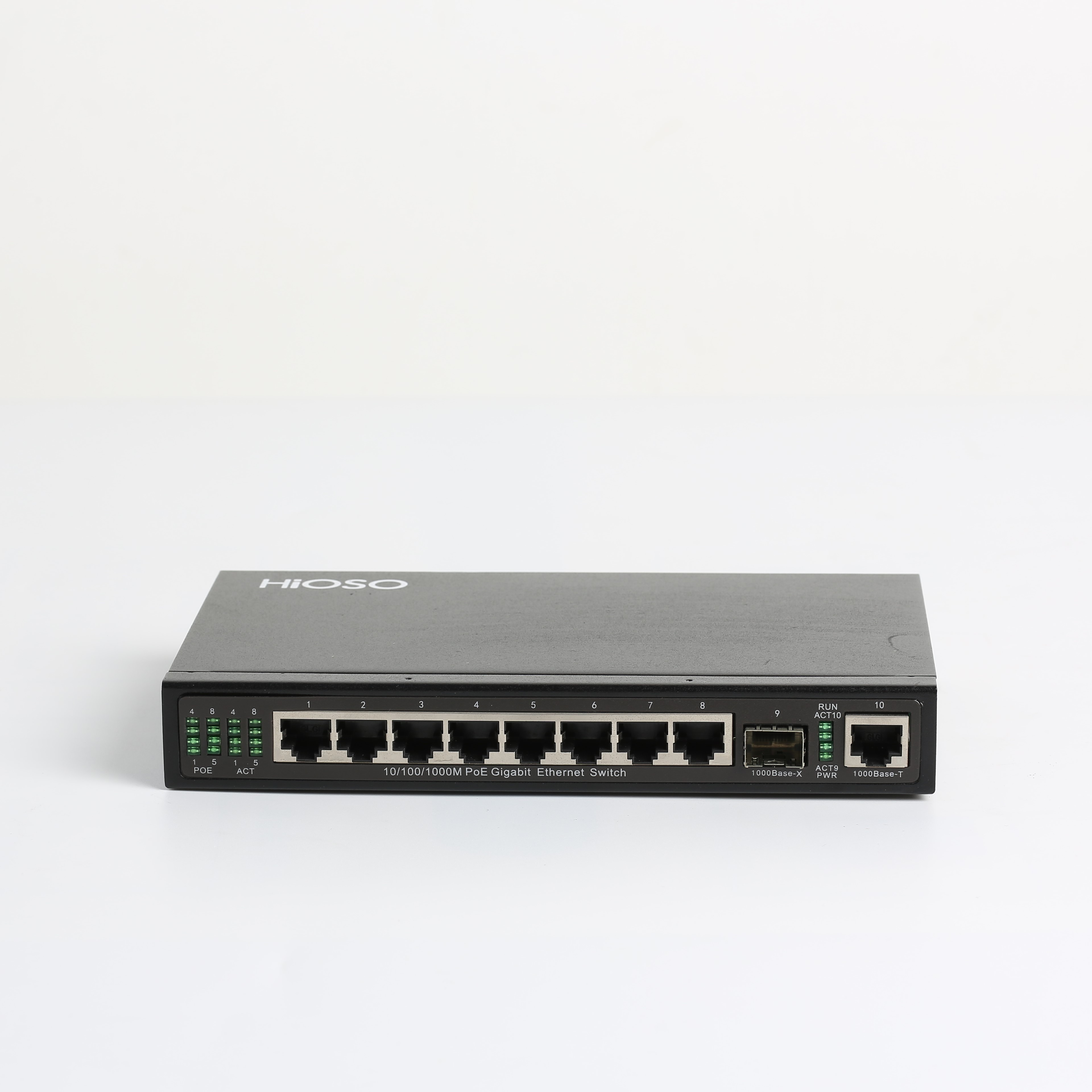

HiOSO FOWAY1510PFST is ten ports 1000M PoE Ethernet switch, with 8 10/100/1000M RJ45 PoE ports, 1 1000M SFP uplink port and 1 10/100/1000M RJ45 uplink port, include non-managed type and managed type, managed type supports web management and SNMP management(optional) .
FOWAY1510PFST supports IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards. It can auto discover the power receiving devices which support IEEE802.3af/at standard and supply power to it. To the connected devices which not support PoE, it will auto stop supplying power.
FOWAY1510PFST supports to work with IP camera, IP phone, wireless AP and other network devices, and supply power to these devices, supports to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.
Features
l Support maximum 8 10/100/1000M RJ45 PoE ports and 2 1000M SFP uplink ports
l Each PoE port supports to auto discovery the standard power receiving device
l Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
l Support 1000M port full rate, full-duplex non-blocking forwarding
l 16K MAC, 2Mbits storage and forward cache space,18G back plane bandwidth
l Each RJ45 port using anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
l Optional to support CLI,WEB or SNMP
l Managed version support VLAN, STP/RSTP/MSTP, Trunk port aggregation, IGMP, port Mirroring, port isolation, broadcast storm control, loop detection, bandwidth allocation, QinQ, etc ; SNMP supports Support LLDP, DHCP, PPPoE, ACL
l Metal casing, external power design, better for heat dissipating and installation
Technical Specification
|
Parameter
|
Specification
|
|
Standard
|
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree |
|
PoE
|
PoE ports: 8 ports
Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting |
|
Wavelength
|
SFP Module: 850nm/1310nm/1490nm/1550nm
|
|
Distance
|
100M SFP multi-mode: 2Km
Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m |
|
Port
|
8 1000M RJ45 ports (PoE optional): 10/100/1000Mbps
1 1000M SFP port uplink: 1000M SFP 1 1000M RJ45 port uplink |
|
MAC
|
16K
|
|
Buffer memory space
|
2Mbit
|
|
Bit error rate
|
<1/1000000000
|
|
MTBF
|
100000 hours
|
|
Power
|
DC48V(External power), AC110V/220V & DC48V redundant power back up(Internal power)
|
|
Power consumption
|
The whole device 7.5W, POE maximum 240W
|
|
Working
temperature |
-10~60℃
|
|
Storage temperature
|
-40~80℃
|
|
Humidity
|
5%~90% non-condensing
|
|
Dimension
|
28mm (H)×193mm(W)×119mm (D) external power
44mm (H)×276mm(W)×190mm (D) inside power |
Order Information
|
No
|
Product code
|
NMS
|
Ports
|
PoE ports
|
|
1
|
FOWAY1510PFST-8AF
|
No
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af 125W
|
|
2
|
FOWAY1510PFST
|
No
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af/at 125W
|
|
3
|
FOWAY1510PFST-240W
|
No
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af/at 240W
|
|
4
|
FOWAY1510PFSTP-8AF
|
No
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af 125W, AC220V
|
|
5
|
FOWAY1510PFSTP
|
No
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af/at 125W, AC220V
|
|
6
|
FOWAY1510PFSTP-240W
|
No
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af/at 240W, AC220V
|
|
7
|
FOWAY1510PFST-8AF
|
Yes
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af 125W
|
|
8
|
FOWAY1510PFSTM
|
Yes
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af/at 125W
|
|
9
|
FOWAY1510PFSTM-240W
|
Yes
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af/at 240W
|
|
10
|
FOWAY1510PFSTPM-8AF
|
Yes
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af 125W, AC220V
|
|
11
|
FOWAY1510PFSTPM
|
Yes
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af/at125W, AC220V
|
|
12
|
FOWAY1510PFSTPM-240W
|
Yes
|
8 10/100/1000M RJ45 + 1 1000M SFP uplink + 1 10/100/1000M uplink
|
8 PoE IEEE802.3af/at 240W, AC220V
|
