Main productions: cutter suction dredger, gold dredger, diamond dredger, gold washing plant, sand dredger and other mining equipment. We are located in Qingzhou city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including gas cutting machine, automatic welding machine, electric welder and other equipments.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
yongli
-
Dimension(L*W*H):
-
39m*9.15m*2.75m
-
Weight:
-
300t
-
Color:
-
Customer's Request
-
Engine:
-
Cummins
-
Name:
-

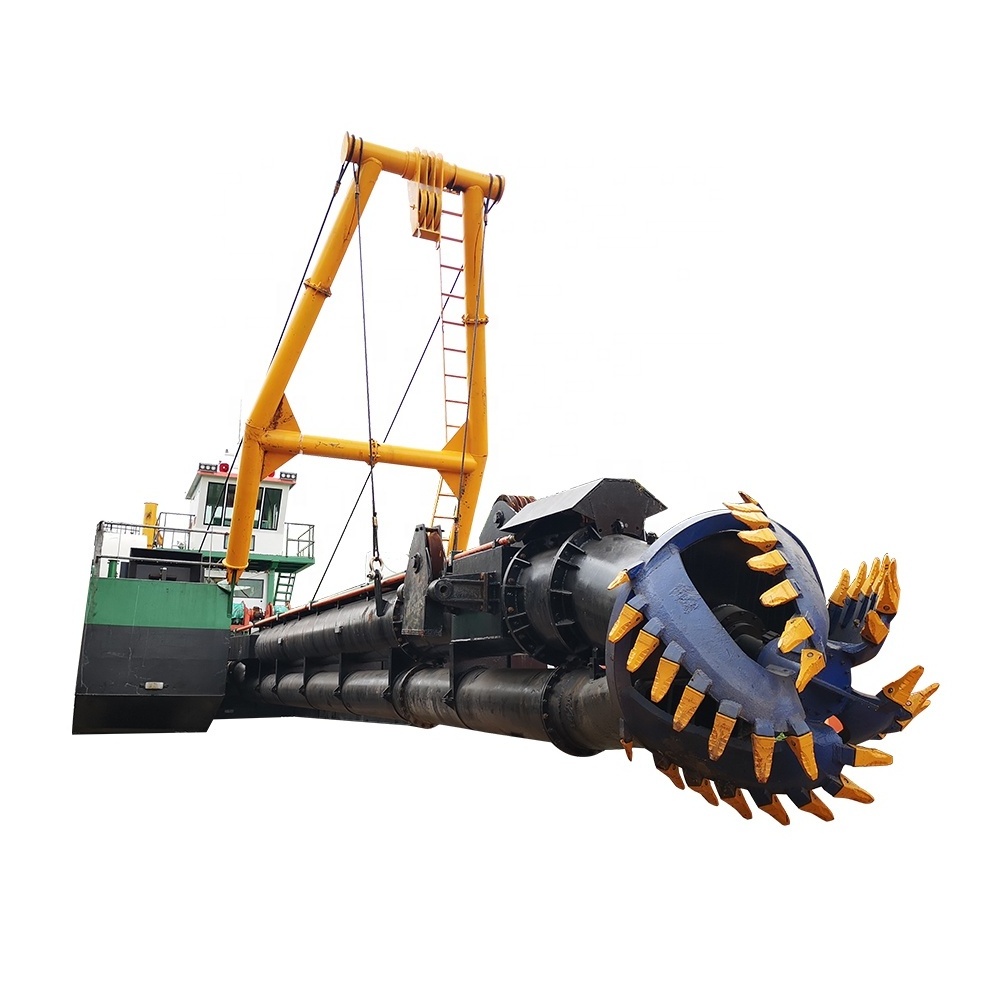

Cutter Suction Dredger
-
Structure:
-
Dismantle
-
Discharging distance:
-
1500m
-
Application:
-
Sand Dredging
-
Usage:
-
Port River Lake Sea
-
Work site:
-
Shallow Water
-
Certification:
-
iso9001
Quick Details
-
Dredging Depth:
-
15 m
-
Draught:
-
150 cm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
yongli
-
Dimension(L*W*H):
-
39m*9.15m*2.75m
-
Weight:
-
300t
-
Color:
-
Customer's Request
-
Engine:
-
Cummins
-
Name:
-
Cutter Suction Dredger
-
Structure:
-
Dismantle
-
Discharging distance:
-
1500m
-
Application:
-
Sand Dredging
-
Usage:
-
Port River Lake Sea
-
Work site:
-
Shallow Water
-
Certification:
-
iso9001
Our Company
About company
Model List
|
Model
|
Slurry capacity
|
Dredging depth
|
Discharge distance
|
Total power
|
|
CSD-200
|
500m³/h
|
10m
|
500m
|
224kw
|
|
CSD-250
|
800m³/h
|
1
2m
|
800m
|
351kw
|
|
CSD-300
|
1200m³/h
|
12m
|
1000m
|
648kw
|
|
CSD-400
|
2200m³/h
|
15m
|
1000m
|
806kw
|
|
CSD-450
|
3000m³/h
|
15m
|
1000m
|
1007kw
|
|
CSD-500
|
3500m³/h
|
15m
|
1500m
|
1193kw
|
|
CSD-550
|
5000m³/h
|
15m
|
1500m
|
1640kw
|
|
CSD-650
|
6000m³/h
|
15m
|
1500m
|
2446kw
|
Products Description
YLCSD-650
Parameter：
*Slurry capacity:6000m³/h
*Concentraction:15-20%
*Length: 39m
*Breadth:9.15m
*Height:2.75m
*Dredging depth:15-18m
*Discharge distance:0-1500m
*Total power:2246kw(optional)
*Cutter shaft power:300kw
*Slurry capacity:6000m³/h
*Concentraction:15-20%
*Length: 39m
*Breadth:9.15m
*Height:2.75m
*Dredging depth:15-18m
*Discharge distance:0-1500m
*Total power:2246kw(optional)
*Cutter shaft power:300kw
Remark：Can be customized according to customer requirements
Details Images
Cutter head
Diameter:2100mm
shaft power:392kw
RPM:0-30 r/min
Material:ZG30CrMn
Amont: 5 Pcs
Remark:cutter teeth can be replaced
Main engine
Maker: Cummins China
Model :QSK60-M
Power:1864KW
RPM :1900r/min
Model :QSK60-M
Power:1864KW
RPM :1900r/min
No. of cylinders: 16
Fuel consumption:200l/h
Remark: can be selected by customer's requirement
Dredging pump
Maker：Shijiazhuang
Model :Wn500
Water flow :6000m³/h
Solid capacity ：900-1200m³/h
Diameter of suction：650mm
Diameter of Discharge：500mm
Solid capacity ：900-1200m³/h
Diameter of suction：650mm
Diameter of Discharge：500mm
Remark: can be selected by customer's requirement
Winch
Diameter of drum ：510mm
Hydraulic motor maker ：xinhong
Model ：S3C4
Wire rope speed ：0-20m/min
Dia. Of wire rope ：28mm
Wire rope length ：200m
Hydraulic motor maker ：xinhong
Model ：S3C4
Wire rope speed ：0-20m/min
Dia. Of wire rope ：28mm
Wire rope length ：200m
Remark: can be selected by customer's requirement
Customer Photos
Packing and Transport
Remark: cutter suction dredger is dismantled, box-like structure, which can be transported easily by trucks on road or by ship on the sea.
