Quick Details
-
Material:
-
Grey Cast Iron HT250
-
Warranty:
-
50000 km or 1 year
-
Place of Origin:
-
Shandong, China
-
Car Model:
-
For Actros
-
Brand Name:
-
WINSUN
-
Product Name:
-
brake disc for Mercedes Benz
-
Standard:
-
HT250 GG25 G3000
-
Diameter:
-
430 mm
-
Height:
-
132.6 mm
-
Thickness:
-
45 mm
-
Package:
-
Neutral Package
-
Delivery Time:
-
15~45days
-
MOQ:
-
50 PCS
-
Advantage:
-
Economic
-
Solid or Vented:
-
Ventilated
Quick Details
-
OE NO.:
-
9424212112
-
Reference NO.:
-
9424212112
-
Size:
-
OEM STANDARD SIZE
-
Material:
-
Grey Cast Iron HT250
-
Warranty:
-
50000 km or 1 year
-
Place of Origin:
-
Shandong, China
-
Car Model:
-
For Actros
-
Brand Name:
-
WINSUN
-
Product Name:
-
brake disc for Mercedes Benz
-
Standard:
-
HT250 GG25 G3000
-
Diameter:
-
430 mm
-
Height:
-
132.6 mm
-
Thickness:
-
45 mm
-
Package:
-
Neutral Package
-
Delivery Time:
-
15~45days
-
MOQ:
-
50 PCS
-
Advantage:
-
Economic
-
Solid or Vented:
-
Ventilated

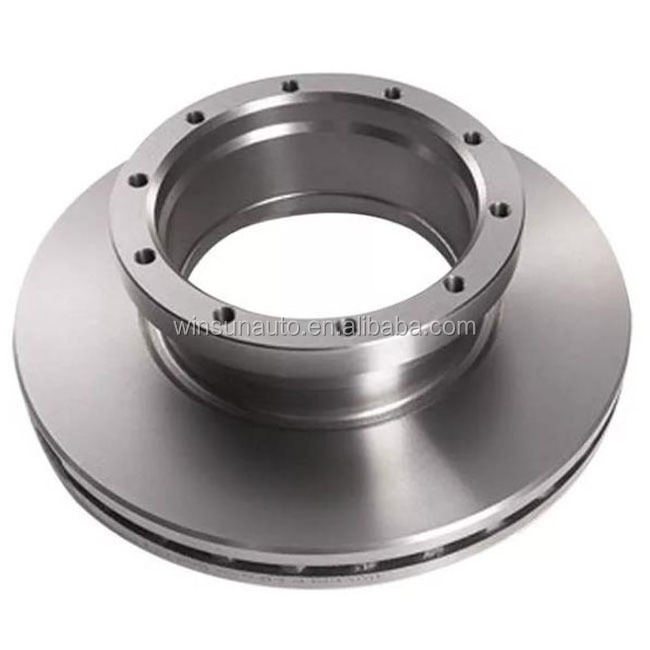

9424212112 OEM quality truck brake disc for Mercedes Benz ACTROS MP2/MP3/MP4
Product Description
Specification
Technical Parameter :
Brake Disc 942 421 12 12
* Location：Front Axle, Rear Axle
* Diameter：430 mm
* Brake Disc Thickness：45 mm
* Minimum Thickness：37 mm
* Centering Diameter：211.1 mm
* Height：132 mm
* Number Of Holes：10
* Pitch Circle Diameter：238 mm
* Solid Or Vented：V
* Weight：33.8 kg
* Diameter：430 mm
* Brake Disc Thickness：45 mm
* Minimum Thickness：37 mm
* Centering Diameter：211.1 mm
* Height：132 mm
* Number Of Holes：10
* Pitch Circle Diameter：238 mm
* Solid Or Vented：V
* Weight：33.8 kg
The material of all our brake disc, rotor and drum applies with standard G3000(America) = GG25(European) = HT250(China). meet all OE specifications for weight, configuration,and tolenrances delivering the best perfomance in the market.
Material Paragram of brake disc, rotor & brake drum:
|
Material
|
C
|
Si
|
Mn
|
P
|
S
|
C.E
|
|
G3000
|
3.1~3.4
|
1.9~2.3
|
0.6~0.9
|
≤ 0.15
|
≤ 0.15
|
3.90~4.15
|
Mechanical Properties of brake disc, rotor & brake drum:
1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS
Microstructure of brake disc, rotor & brake drum:
Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%
1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS
Microstructure of brake disc, rotor & brake drum:
Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
