Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Customized
-
Item name:
-

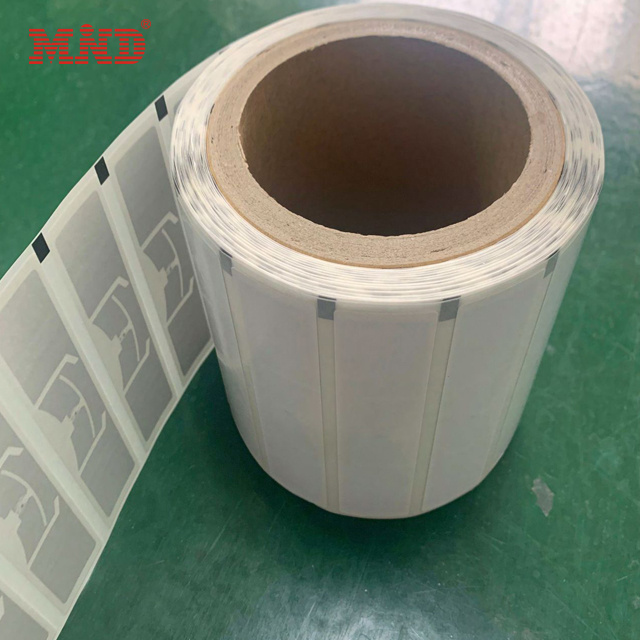

860-960 mhz Alien H9 9954 Wet Inlay Label Sticker
-
Material:
-
Pet,coated paper, dry inlay, wet inlay
-
Chip:
-
Alien H9 9954 etc.
-
Antenna:
-
Aluminum Etching, 93*19mm
-
Protocol:
-
ISO18000 6C
-
EPC Memory:
-
96-496bits
-
IC Life:
-
100,000 Programming cycles, 10 years data retention
-
Surface of Material:
-
Coated paper, PET, Synthetic paper, etc
-
Application:
-
Reusable plastic pallets/Costume label etc
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Communication Interface:
-
RFID
-
Frequency:
-
860-960mhz
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Customized
-
Item name:
-
860-960 mhz Alien H9 9954 Wet Inlay Label Sticker
-
Material:
-
Pet,coated paper, dry inlay, wet inlay
-
Chip:
-
Alien H9 9954 etc.
-
Antenna:
-
Aluminum Etching, 93*19mm
-
Protocol:
-
ISO18000 6C
-
EPC Memory:
-
96-496bits
-
IC Life:
-
100,000 Programming cycles, 10 years data retention
-
Surface of Material:
-
Coated paper, PET, Synthetic paper, etc
-
Application:
-
Reusable plastic pallets/Costume label etc
Product Details
|
Chip
|
H9
|
|
Frequency
|
860～960MHz
|
|
Material
|
Coated Paper/ PET/Synthetic paper/Thermal paper/customization
|
|
Working Mode
|
Passive
|
|
IC Life
|
100,000 Programming cycles, 10years data retention
|
|
Operating temperature/humidity
|
-25~50℃/20%~80% RH
|
|
Storage temperature/humidity
|
+23°C±5°C/ 50%±10% RH(Without condensation).
|
|
Antenna
|
Aluminum Etching, 93*19mm
|
|
Wet inlay/Label Size
|
100*38mm or customization
|
|
Printing
|
Full Color Printing, Logo, Barcode, QR code, etc
|
|
Sample
|
Sample is free for your quality test
|
|
Protocol
|
ISO/IEC 18000-6C EPC Class1 Gen2
|
|
Packaging
|
1000-5000pcs/roll, 4 rolls /carton
|
|
Place of origin
|
Chengdu,china
|
|
Application/Solution
|
Secure Admission Control/Cashless Payment Membership and loyalty programs
|
|
|
Event Access and Branding/Social Media/Retail
|
|
|
Environment/Games & Toys Location/Electronics/Trade Shows
|
|
|
Events/Call request/Business Cards
|
What are the Dry Inlay/ Wet Inlay/ Labels?
RFID Dry Inlay
Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags. RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package; Frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693. MIND has technicians and offer antenna design service to meet various customer requirements.
RFID Dry Inlay
Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags. RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package; Frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693. MIND has technicians and offer antenna design service to meet various customer requirements.
RFID RFID Wet Inlay
RFID Wet inlay contains back glue, which can be directly attached to objects. The structure is antenna + chip + chip package + glue + release paper, if no logo print, customer can use the rfid wet inlay directly without make it as white/ printed label for cost saving. Frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
MIND has technicians and offer antenna design service to meet various customer requirements.
MIND has technicians and offer antenna design service to meet various customer requirements.
RFID Label
RFID white label, RFID sticker contains both back glue and top coated paper or PET, the structure is Coated paper/PET+antenna + chip + chip package + glue + release paper. RFID label packaging can be divided into fold, roll and single product. Products can be divided into thermal printing and heat transfer printing; materials can be paper, waterproof materials and PVC or PET for choice, size diversity for customers to choose, encryption processing, personalized and coding services, thermal printing full package; frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
More details or any question can contact Shirley directly.
RFID white label, RFID sticker contains both back glue and top coated paper or PET, the structure is Coated paper/PET+antenna + chip + chip package + glue + release paper. RFID label packaging can be divided into fold, roll and single product. Products can be divided into thermal printing and heat transfer printing; materials can be paper, waterproof materials and PVC or PET for choice, size diversity for customers to choose, encryption processing, personalized and coding services, thermal printing full package; frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
More details or any question can contact Shirley directly.
