Shipping:
About 10-15 days after confirm the order
- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1220 mm
-
Travel (Y Axis)(mm):
-
2440 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
6kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCUT
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3100*2250*1900mm
-
Power (kW):
-
9
-
Weight (KG):
-
2600
-
Name:
-
atc cnc router machine Woodworking Atc CNC
-
Control system:
-
Taiwan Syntec Control System
-
Spindle:
-
6kw ATC spindle
-
Motor and driver:
-
Dorna 1500W servo motor and driver
-
Reducer:
-
France Motovario reducer
-
Vacuum table:
-
7.5kw/380v pump
-
Dust collector:
-
5.5kw/380v
-
Tool magazine:
-
12 position servo auto tool changer magazine with tool sensor
-
Inverter:
-
11kw Hpmont inverter
-
Transmission:
-
Original 30 linear rail and slider
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1220 mm
-
Travel (Y Axis)(mm):
-
2440 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
6kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCUT
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3100*2250*1900mm
-
Power (kW):
-
9
-
Weight (KG):
-
2600
-
Name:
-
atc cnc router machine Woodworking Atc CNC
-
Control system:
-
Taiwan Syntec Control System
-
Spindle:
-
6kw ATC spindle
-
Motor and driver:
-
Dorna 1500W servo motor and driver
-
Reducer:
-
France Motovario reducer
-
Vacuum table:
-
7.5kw/380v pump
-
Dust collector:
-
5.5kw/380v
-
Tool magazine:
-
12 position servo auto tool changer magazine with tool sensor
-
Inverter:
-
11kw Hpmont inverter
-
Transmission:
-
Original 30 linear rail and slider

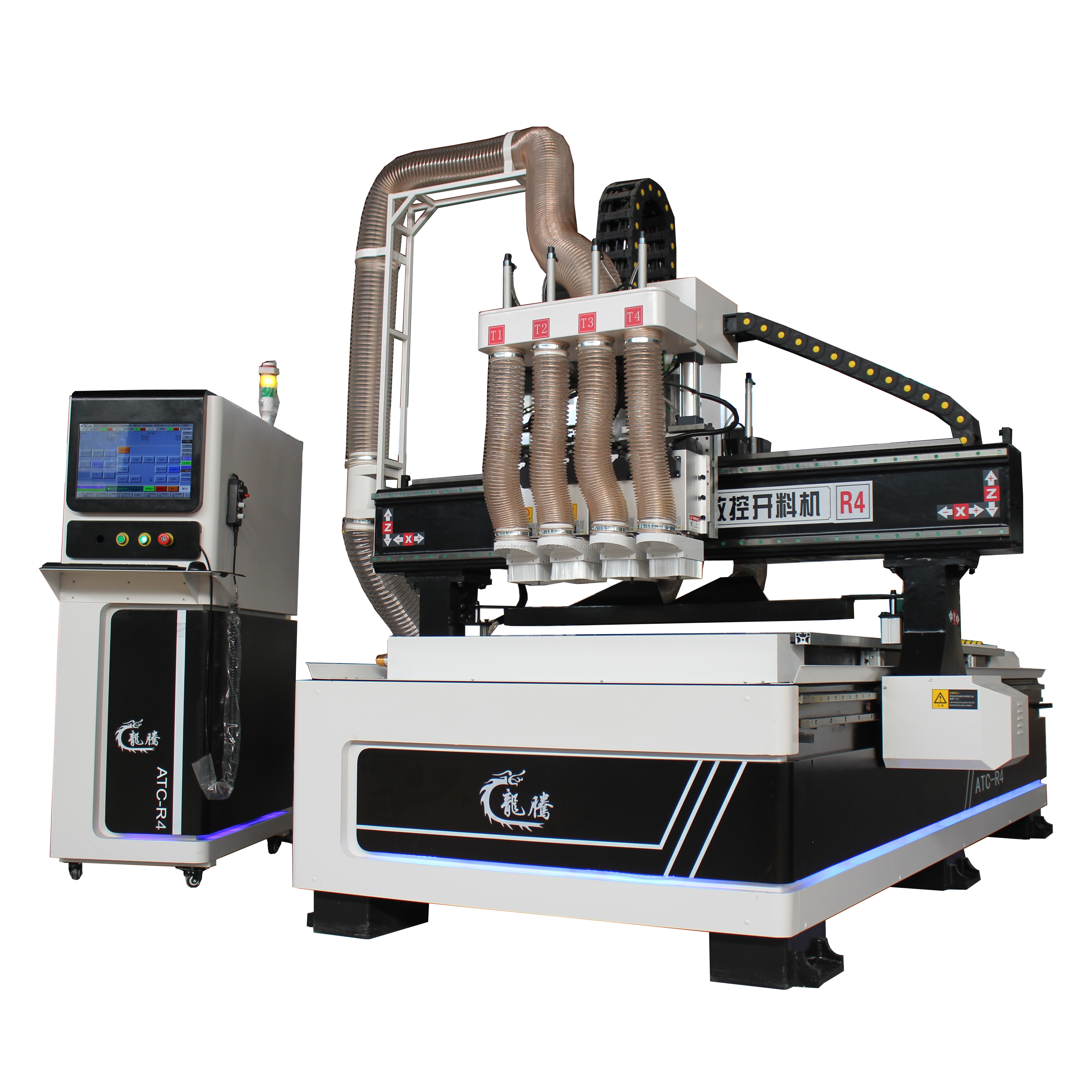

Product Description
Cheap second hand cnc 1325 router with water cooled cnc router spindle motor for cnc router 1325 atc
Product Application
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
|
Descriptions
|
Parameters
|
|
|
|
|||
|
Model
|
JCUT R4
|
|
|
|
|||
|
Working area
|
1220*2440*200mm (Customizable)
|
|
|
|
|||
|
Tool magazine
|
12 (8-16) position servo inline auto tool changer magazine with tool sensor
|
|
|
|
|||
|
Table
|
Vacuum table with 5.5kw/380V pump, super adsorption
|
|
|
|
|||
|
Spindle
|
6.5kw ATC spindle
|
|
|
|
|||
|
Spindle speed
|
0-24000RPM
|
|
|
|
|||
|
Motor and driver
|
Dorna 1500W servo motor and driver (Yaskawa, Leadshine for optional)
|
|
|
|
|||
|
X, Y axis
|
X, Y axis adopt HICK 1.5m helical rack
|
|
|
|
|||
|
Z axis
|
Z axis adopt TBI -2510 ball screw
|
|
|
|
|||
|
Linear rail
|
X, Y, Z axis adopt 30 linear rail
|
|
|
|
|||
|
Control system
|
Taiwan Syntec control system
|
|
|
|
|||
|
Inverter
|
Hpmont 11kw inverter
|
|
|
|
|||
|
Reducer
|
France Motovario reducer
|
|
|
|
|||
|
Oil lubrication system
|
Automatic oil lubrication system
|
|
|
|
|||
|
Dust collector
|
5.5kw/380V dust collector with double bag
|
|
|
|
|||
|
Auto unloading
|
Fully automatic tile horizontal push blanking with auxiliary aluminum bar stopper function
|
|
|
|
|||
|
Accuracy
|
±0.02mm
|
|
|
|
|||
|
Voltage
|
380V (Customizable)
|
|
|
|
|||
|
Machine body
|
Heavy 3.5m machine body, sealing metal plate structure with thick gantry
|
|
|
|
|||
|
Machine size
|
3600*2200*1950mm
|
|
|
|
|||
|
Net weight
|
2600kg
|
|
|
|
|||
Details Images
Vacuum table
Patent design 50MM adsorption caliber, PVC pipe connection sealing good, plate do not run
In-line tool magazine with 8 tools
8-16 tools for optional
Feeding roller
Auxiliary feeding, more labor
6.5kw GDZ ATC Spindle
Auto unloading
Rack and square rail
Samples
Product packaging
