Quick Details
-
Brand Name:
-
Lanyu
-
Model Number:
-
38mm*38mm*19mm*19mm*38mm
-
Surface Treatment:
-
Concave, smooth, gritted
-
Product name:
-
FRP Grating
-
Color:
-
Yellow, green, red, blue, black, grey, white
-
Material:
-
Fiberglass, resin
-
Mesh dimension:
-
38*38*19*19*38mm
-
Usage:
-
Walkway, platform, roof, floor, gangway
-
Sample:
-
Available
-
Feature:
-
High strength, light weight, anti-corrosion
-
Advantage:
-
High quality, reasonable price
-
MOQ:
-
1000 square meters
-
Packing:
-
By pallet, or wooden case.
Quick Details
-
Application:
-
Platform, walkway, gangway, roof, floor
-
Technique:
-
Molding
-
Place of Origin:
-
Hebei,China
-
Brand Name:
-
Lanyu
-
Model Number:
-
38mm*38mm*19mm*19mm*38mm
-
Surface Treatment:
-
Concave, smooth, gritted
-
Product name:
-
FRP Grating
-
Color:
-
Yellow, green, red, blue, black, grey, white
-
Material:
-
Fiberglass, resin
-
Mesh dimension:
-
38*38*19*19*38mm
-
Usage:
-
Walkway, platform, roof, floor, gangway
-
Sample:
-
Available
-
Feature:
-
High strength, light weight, anti-corrosion
-
Advantage:
-
High quality, reasonable price
-
MOQ:
-
1000 square meters
-
Packing:
-
By pallet, or wooden case.

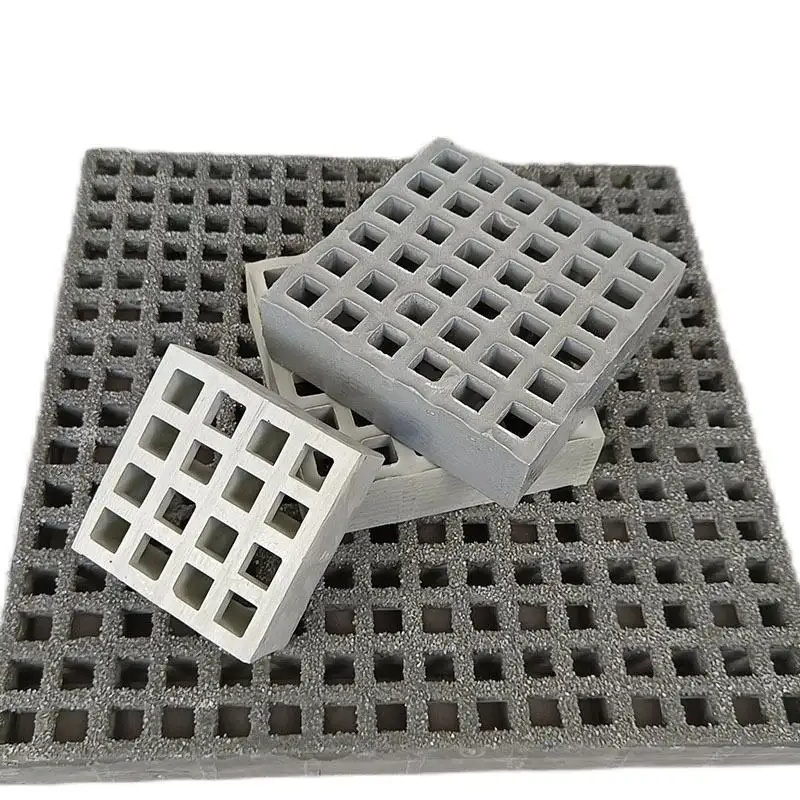

High Strength 38mm*38mm*19mm*19mm Mini Mesh FRP Grills, Fiberglass Composite FRP GRP Molded Gratings for Walkway
Feature of FRP grating
FRP IS UP TO 70% LIGHTER THAN STEEL WITH AN EXCEPTIONAL STRENGTH-TO-WEIGHT RATIO.
Our FRP grating has a high strength-to-weight ratio when compared to traditional materials like metal, concrete and wood. FRP gratings can even be strong enough to carry vehicular loads while weighing less than steel gratings.
FRP IS CORROSION RESISTANT AND REQUIRES LESS MAINTENANCE THAN STEEL.
The durability and corrosion resistance of our FRP gratings and other FRP products reduce or eliminate the need for heavy maintenance like sandblasting, scraping and painting. In fact, many our products are easily cleaned with a high-pressure wash.
PROVIDING A SAFER ALTERNATIVE TO STEEL.
The safety is our highest priority. Our FRP gratings are non-conductive and have a higher friction factor than steel, reducing the risk of electrical shocks and injuries caused by slips. FRP is the clear choice for safer structural products.
LONG SERVICE LIFE
Our gratings provide outstanding durability and corrosion resistance in demanding applications, providing improved product life over traditional materials. The longevity of OUR products provide cost savings over the product’s life cycle. Installed costs are less because of the ease of installation.
LOW INSTALLATION COST
Steel installation can be time consuming and equipment intensive. Our gratings can be easily and quickly cut with ordinary hand tools. Welding or hot work is not necessary with FRP. Our fiberglass gratings are lightweight and can be installed easily with bolts and clips. Installation of FRP material can be done without using heavy equipment and machinery, requiring less manpower.
LIGHT WEIGHT
The lightweight property of our grating results in products that weigh considerably less than steel. The density of steel is four times higher than that of FRP, and steel gratings are two to two-and-a-half times heavier than FRP gratings. FRP’s lighter weight allows easy removal for access below floor level. The reduction in weight that our products provide can save on material transit costs and installation costs.
|
Specification(mm)
|
Panel size(mm)
|
Weight(kg)
|
Customized
|
|
38*38*25
|
1220*3660
|
54
|
Accepted
|
|
38*38*30
|
1220*3660
|
70
|
|
|
38*38*38
|
1220*3660
1000*4007
|
88
81
|
|
|
50*50*50
|
1220*3660
|
98
|
|
|
19*19*38*38*30
|
1075*3626
|
72
|
|
|
38*38*65
|
1030*4040
|
141
|
|
|
40*40*40
|
1010*4040
|
81
|
|
|
19*19*38*38*38
|
1220*3660
|
92
|
|
|
25*25*50*50*30
|
1220*3660
|
62
|
|
Common Used Resin Type:
General Purpose Ortho Polyester (Type O): Cost-effective alternative to vinyl ester and isophthalic polyester products.
Isophthalic Polyester (Type 1): A good choice for environments where chemical splashes and spills are a common occurrence.
Vinyl Ester (Type V): Developed to withstand the harsh chemical environments found in chemical, waste treatment, and metal plating plants.
Tailoring type
FRP micro mesh grating is considered to be the most suitable product for applications where durability, as well as aperture sizes of the product, are critical considerations. With an opening size of 8mm. FRP mini mesh grating is the best decking option for structures where small objects falling through and high heels are variables.
Our factory produces FRP gratings with different dimension, welcome your inquiry, we would provide our best price.
Package and Transportation
FRP gratings are packed with pallet or wooden case.
