Quick Details
-
Output Power:
-
7kW/11kW/22kW
-
Input Voltage:
-
ac230v/400v
-
Product name:
-

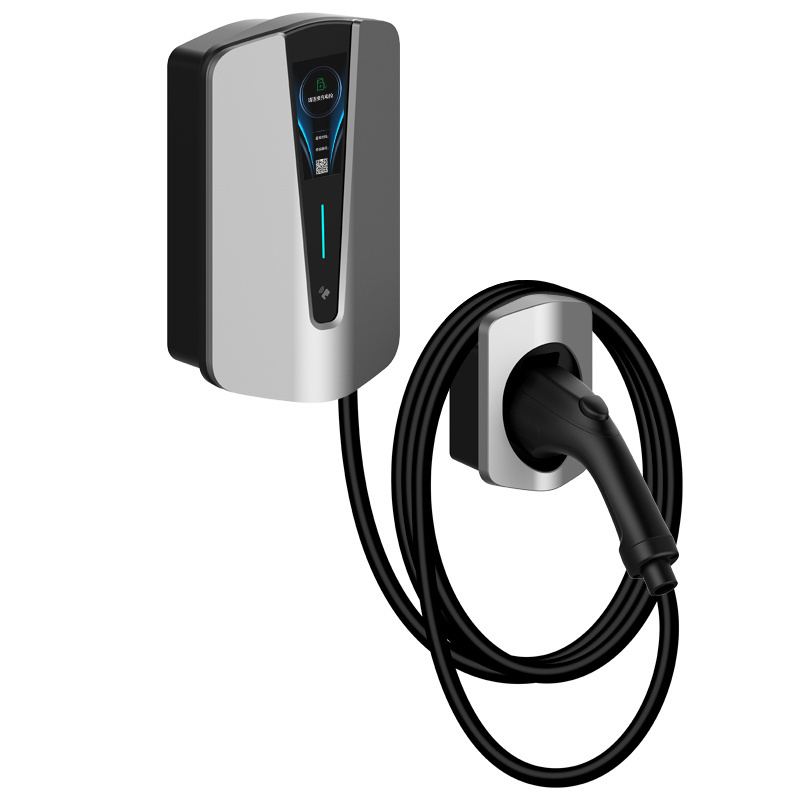

EV Charging Station (WallBox)
-
Output voltage:
-
AC 230V/400V
-
Rated Power:
-
7 KW/22KW
-
Phase:
-
Single Phase
-
Mounting:
-
Pole/wall-mounted
-
Function:
-
Screen Display
-
Color:
-
Customized Color
-
Type:
-
Wallbbox EV Charging
-
Rated Output Power:
-
7.6kw
-
Application:
-
AC Home Charging
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GW8
-
Brand Name:
-
OEM
-
Output Power:
-
7kW/11kW/22kW
-
Input Voltage:
-
ac230v/400v
-
Product name:
-
EV Charging Station (WallBox)
-
Output voltage:
-
AC 230V/400V
-
Rated Power:
-
7 KW/22KW
-
Phase:
-
Single Phase
-
Mounting:
-
Pole/wall-mounted
-
Function:
-
Screen Display
-
Color:
-
Customized Color
-
Type:
-
Wallbbox EV Charging
-
Rated Output Power:
-
7.6kw
-
Application:
-
AC Home Charging
Details Images
Products Description
|
Specification
|
Model
|
7KW
|
11KW
|
22KW
|
||
|
Input
|
Power Supply
|
L+N+PE
|
L1+L2+L3+N+PE
|
L1+L2+L3+N+PE
|
||
|
|
Rated voltage
|
AC 230V
|
AC 400V
|
AC 400V
|
||
|
|
Rated current
|
32A
|
16A
|
32A
|
||
|
|
Frequency
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
||
|
Output
|
Output voltage
|
AC 240V
|
AC 400V
|
AC 400V
|
||
|
|
Output current
|
32A
|
16A
|
32A
|
||
|
|
Rated power
|
7KW
|
11KW
|
22KW
|
||
|
User interface
|
Cable length
|
5M
|
|
|
||
|
|
Outer case
|
PC9010
|
|
|
||
|
|
LED indicator
|
Green/blue/red (blue - standby; green - charger connected to the vehicle, flashing - charging; red - abnormal)
|
|
|
||
|
|
Emergency stop
|
include
|
|
|
||
|
Security
|
RCD
|
A+DC6mA
|
|
|
||
|
|
Ingress Protection
|
IP65
|
|
|
||
|
|
Surge Protection
|
IK10
|
|
|
||
|
|
Electrical Protection
|
Overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant
protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection, vehicle specification level protection vehicle and protective personnel |
|
|
||
|
|
Warranty
|
15 months
|
|
|
||
|
|
Cooling mode
|
Natural cooling
|
|
|
||
|
Environment
|
Installation
|
Wall-mount/Pole-mount
|
|
|
||
|
|
Working Temperature
|
-30℃~+50℃
|
|
|
||
|
|
Storage temperature
|
-40℃~+80℃
|
|
|
||
|
|
Operating humidity
|
5%~95% no moisture condensation or frost
|
|
|
||
|
|
Working Height
|
<2000M
|
|
|
||
|
Specifications
|
Product Dimension
|
23*16*7.5cm
|
|
|
||
|
|
Package Dimension
|
47*24*25.5cm
|
|
|
||
|
|
Net Weight
|
2.5KG
|
|
|
||
|
|
Gross Weight
|
3.5KG
|
|
|
||
|
Other
|
Efficiency
|
≥98
|
|
|
||
|
|
Insulation resistance
|
≥10MΩ
|
|
|
||
|
|
Power of control module
|
≤7W
|
|
|
||
|
|
Terminal
|
include
|
|
|
||
