Quick Details
-
Brand Name:
-
KOWINT
-
Model Number:
-
KWT-12S1P 38.4V 100Ah
-
Battery Size:
-
LiFePO4
-
Place of Origin:
-
China
-
Weight:
-
28kg, 28kg
-
The charging ratio:
-
0.2-1C
-
The discharge rate:
-
0.5-1C
-
Product name:
-

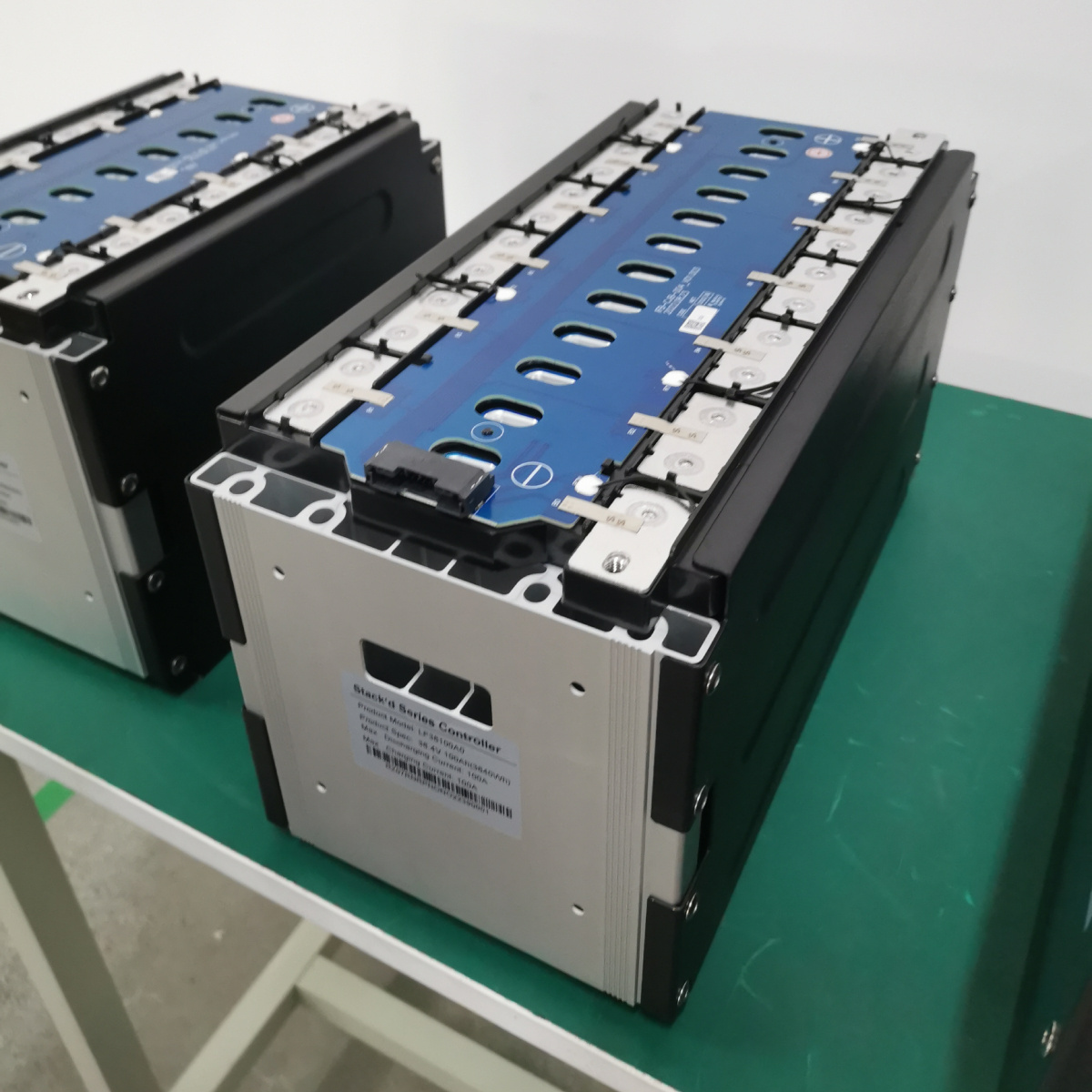

12S1P 38.4V 100Ah Battery Module
-
Nominal Voltage:
-
38.4V
-
Capacity:
-
100Ah
-
Voltage Range:
-
30-43.2V
-
Max Charge Rate:
-
≤1C
-
Dimension:
-
372*213*83mm
-
Max. Charge/Discharge Current:
-
100A
-
Cycle life:
-
4000times
-
Operation Temp.:
-
-10~55℃
-
Certification:
-
MSDS,UN38.3,CE,FCC
Quick Details
-
Storage Type:
-
0-45℃
-
Anode Material:
-
LFP
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
KOWINT
-
Model Number:
-
KWT-12S1P 38.4V 100Ah
-
Battery Size:
-
LiFePO4
-
Place of Origin:
-
China
-
Weight:
-
28kg, 28kg
-
The charging ratio:
-
0.2-1C
-
The discharge rate:
-
0.5-1C
-
Product name:
-
12S1P 38.4V 100Ah Battery Module
-
Nominal Voltage:
-
38.4V
-
Capacity:
-
100Ah
-
Voltage Range:
-
30-43.2V
-
Max Charge Rate:
-
≤1C
-
Dimension:
-
372*213*83mm
-
Max. Charge/Discharge Current:
-
100A
-
Cycle life:
-
4000times
-
Operation Temp.:
-
-10~55℃
-
Certification:
-
MSDS,UN38.3,CE,FCC
Specification
|
Item
|
Value
|
Note
|
|
Cell Brand
|
REPT
|
|
|
Nominal Capacity
|
100Ah
|
1C@RT
|
|
Nominal Voltage
|
38.4V
|
|
|
Actual Voltage Range
|
30V-43.2V
|
|
|
Rated Discharge Current
|
≤100A
|
Typical Value=50A
|
|
Peak Discharge Current
|
≤200A
|
@5s
|
|
Rated Charge Current
|
≤100A
|
Typical Value=50A
|
|
Peak Charge Current
|
≤200A
|
@10s
|
|
Operating Temperature
|
-10℃~55℃
|
|
|
Dimension(L*W*H)
|
372*213*83mm
|
|
|
Cathode Material
|
LFP
|
|
|
Weight
|
28kg
|
|
|
Cycle life
|
≥4000 times
|
|
