Quick Details
-
Input:
-
4 FTA tuner + 4 RF tuner with 4*CAM CI slot
-
RF input type:
-
Selectable DVB-S/S2 or DVB-T2 Mode, 4 Tuners/modules, total 3 modules
-
Output:
-
4 carrier DVB-C or DVB-T, 4*IP MPTS
-
BISS descrambling:
-
mode 1 & BISS-E
-
Multiplexing:
-
Quad separate MUX
-
Scrambling:
-
Support 4 Group of CAS Scrambling for DVB-C QAM
-
QAM Encoding standard:
-
EN300 429& ITU-T J.83 Annex A/B
-
Feature:
-
FTA and Encrypted satellite channels to RF out Transmodualtor
-
CI CAM slot:
-
Encrypted paid channels
-
Product name:
-
satellite tv modulator
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibvision
-
Model Number:
-
QAM6248plus (CI slot)
-
Input:
-
4 FTA tuner + 4 RF tuner with 4*CAM CI slot
-
RF input type:
-
Selectable DVB-S/S2 or DVB-T2 Mode, 4 Tuners/modules, total 3 modules
-
Output:
-
4 carrier DVB-C or DVB-T, 4*IP MPTS
-
BISS descrambling:
-
mode 1 & BISS-E
-
Multiplexing:
-
Quad separate MUX
-
Scrambling:
-
Support 4 Group of CAS Scrambling for DVB-C QAM
-
QAM Encoding standard:
-
EN300 429& ITU-T J.83 Annex A/B
-
Feature:
-
FTA and Encrypted satellite channels to RF out Transmodualtor
-
CI CAM slot:
-
Encrypted paid channels
-
Product name:
-
satellite tv modulator

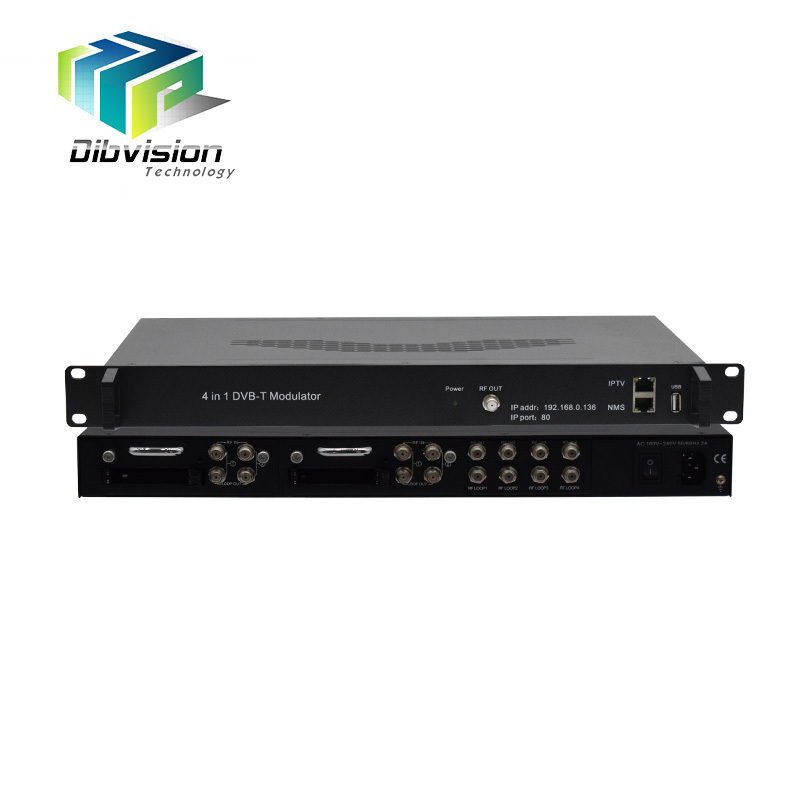

QAM6248Plus Provides a highly flexible solution for delivery of any FTA Satellite DVB-S2 and Terrestrial DVB-T2 Signals, IPTV content all encoding and Resolution of video can be simultaneously output over IP and RF(DVB-C/T), No Needs to wire new cables as it shares the existing antenna coax cables to deployed with Analog TV network.
QAM6248Plus Big advantage, it works with 128 UDP/RTP IP IGMP2.0 source and Up to 12 Clear DVB-S2 or DVB-T2 Transponders inputs together. Integrate All in One Multiplexer and Scrambling MPEG-TS out Over 4 adjacent RF Channels as mirrored of 4 MPTS over LAN network.It is also characterized with high integrated, high performance and breakthrough price.
Features
1. Distribute FTA Channels over RF (DVB-T/C) to an unlimited number of TVs
2. Support Quad Tuners per module and Up to 3 modules and 128 IP over UDP/RTP inputs in 1RU Chassis
3. Selectable any combination of 4 ways in Three RF modules Plug in: ① 3*DVB-S2; ② 3* DVB-T2; ③ 2*DVB-S2+1*DVB-T2; ④ 2*DVB-T2+1*DVB-S2
4. Simultaneous video output in RF over coax and IP over Ethernet
5. Support 4 Group of DVB-Simulcrypt CAS Scrambling for DVB-C QAM
6. BISS mode 1 & BISS-E
7. 4 separate multiplexing and Up-converter modulating adjacent carrier out
8. LCN (Logical Channel Number) support
9. DVB-C (EN300 429) and ITU-T J.83A/B supported
10. PSI/SI editing & inserting
11. PID Remapping & Filtering
12. Support PCR correct and PCR interval adjusting
13. Superior Shoulders and Excellent modulation quality MER
14. Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours
15. Easy-to-Use System Management via Web
16. Log information printing
Lowest Cost per channel - Breakthrough Price !
Main Applications
|
Input Interfaces
|
|
|
||
|
|
4 FTA Tuners In/Loopout per Module
|
|
||
|
|
Up to 3 Modules(12 FTA RF Ports)
|
|
||
|
|
Selectable DVB-S/S2 or DVB-T2 Mode
|
|
||
|
|
F-female type Connecter
|
|
||
|
|
128 IP input over UDP and RTP ,RJ45 Port
|
|
||
|
|
SPTS/MPTS,≦850Mbps per port
|
|
||
|
|
Multicast(IGMP2.0/3.0)/Unicast,IPTV Sync
|
|
||
|
DVB-S/S2 Mode
|
Input Frequency
|
950-2150Mhz
|
||
|
|
Symbol rate
|
2~45Mbauds(DVB-S QPSK)
1~45Mbauds(DVB-S QPSK) 2~30Mbauds(DVB-S2 8PSK) |
||
|
|
Signal Strength
|
- 65 ~ -25dBm
|
||
|
|
FEC Demodulation
|
1/2, 2/3, 3/4, 5/6, 7/8(DVB-S QPSK)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10(dvb-s2 QPSK/8PSK) |
||
|
|
Roll Off
|
0.20; 0.25; 0.35 (Only DVB-S)
|
||
|
|
Demodulation Mode
|
QPSK, 8PSK (Only DVB-S2)
|
||
|
|
Input Impedance
|
75 Ω
|
||
|
|
Number of RF Ports
|
4
|
||
|
DVB-T/T2 Mode
|
Frequency Range
|
30MHz-1000Mhz
|
||
|
|
Bandwidth
|
6Mhz, 7Mhz, 8Mhz
|
||
|
|
Level
|
-87 ~ -20dBm
|
||
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
||
|
|
FEC Demodulation
|
1/2, 2/3, 3/4, 5/6, 7/8
|
||
|
|
Guard Interval
|
1/4, 1/8, 1/16, 1/32
|
||
|
|
Number of RF Ports
|
4
|
||
|
Multiplexing
|
|
|
|
Maximum PID Remapping
|
180 input per channel ,PID remapping by automatically or manually
|
|
|
PSI/SI
|
SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert
Accurate PCR adjusting PCR PID Sync |
|
|
Scrambling(Only for DVB-C)
|
|
|
|
Simul-Crypt CAS number
|
4
|
|
|
Scrambling algorithm
|
DVB-CSA
|
|
|
Table update
|
CAT/PMT
|
|
|
ECMG interface
|
TCP
|
|
|
EMMG interface
|
TCP/UDP
|
|
|
EMM bandwidth
|
0~3Mbps/TS
|
|
|
General RF Modulation
|
|
|
||
|
Connector
|
F-Type, 75 Ω
|
|
||
|
Ports
|
1 RF ports per module
|
|
||
|
Output Return Loss
|
14 dB
|
|
||
|
RF frequency
|
50~960MHz, 1KHz step
|
|
||
|
Number of RF Channels
|
4
|
|
||
|
DVB-C Mode
|
QAM Encoding
|
EN300 429& ITU-T J.83 Annex A (DVB), Annex B
|
||
|
|
MER
|
≥40db
|
||
|
|
Bandwidth
|
6Mhz(Annex B) or 8 Mhz(Annex A)
|
||
|
|
Symbol Rate
|
5.0Msps~7.0Msps, 1ksps stepping
|
||
|
|
QAM Constellations
|
16/32/64/128/256QAM(Annex A)
64/256QAM(Annex B)
|
||
|
|
RF output level
|
-25~ -1dBm (82~107 dBµV), 0.1db step
|
||
|
DVB-T Mode
|
Standard
|
EN300744
|
||
|
|
FFT mode
|
2K
|
||
|
|
Bandwidth
|
6Mhz, 7Mhz, 8Mhz
|
||
|
|
Constellation
|
QPSK, 16-QAM, 64-QAM
|
||
|
|
Guard Interval
|
1/4, 1/8, 1/16, 1/32
|
||
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
||
|
|
MER
|
≥42 dB
|
||
|
|
RF output level
|
-28~ -3dBm (80~105 dBµV), 0.1db step
|
||
|
Stream output
|
|
|
|
|
MPTS IP out Configurable mirroring per QAM
|
|
|
|
TSoIP encapsulation UDP/RTP, 1*GbE Port
|
|
|
|
7x188 Bytes per TS packet
|
|
|
|
Filter Null Packet
|
|
|
|
Source TS select: Scrambled, No Scrambled
|
|
|
|
BISS descrambling mode 1, BISS-E
|
|
|
System function
|
|
|
|
|
Web Network management
|
|
|
|
English language
|
|
|
|
Ethernet software upgrade
|
|
|
|
Save/Restore/Facture Set/Backup/Load Setting
|
|
|
Environment
|
|
|
|
Dimension(W×L×H)
|
482mm×300mm×44mm(1RU)
|
|
|
Approx weight
|
4kg
|
|
|
Temperature
|
0~45℃(Operation); -20~80℃ (Storage)
|
|
|
Voltage range
|
100 to 120/200 to 240V AC ±10%; 50/60Hz
|
|
|
Power consumption
|
﹤30W
|
|
|
|
|
|
