Quick Details
-
Weight (KG):
-
500
-
Voltage:
-
220-380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OCPACK
-
Dimension(L*W*H):
-
(L)3770*(W)670*(H)1450mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Modle packaging type:
-
Food Triple Biscuit Packaging Machine Alfajores Candy Packing Machine
-
Products heigh:
-
Max.55mm
-
Packing speed:
-
50-230bags/min
-
Film roll width:
-
Max.250mm
-
Film roll length:
-
Max.280mm
-
The biggest roll diameter:
-
Max.300mm
-
Packaging film material:
-
OPP/CPP,OPP/CE,MST/PE, PET ETC.
-
Power:
-
220V,50/60HZ,2.4KVA
-
Net weight/Gross Weight:
-
850kg/950kg
Quick Details
-
Function:
-
FILLING, Labeling, Sealing, SLITTING, Wrapping
-
Packaging Type:
-
Bags, CANS, case, Film, Foil, Pouch, Stand-up Pouch
-
Packaging Material:
-
Paper, Plastic, Heat-sealing film
-
Weight (KG):
-
500
-
Voltage:
-
220-380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OCPACK
-
Dimension(L*W*H):
-
(L)3770*(W)670*(H)1450mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Modle packaging type:
-
Food Triple Biscuit Packaging Machine Alfajores Candy Packing Machine
-
Products heigh:
-
Max.55mm
-
Packing speed:
-
50-230bags/min
-
Film roll width:
-
Max.250mm
-
Film roll length:
-
Max.280mm
-
The biggest roll diameter:
-
Max.300mm
-
Packaging film material:
-
OPP/CPP,OPP/CE,MST/PE, PET ETC.
-
Power:
-
220V,50/60HZ,2.4KVA
-
Net weight/Gross Weight:
-
850kg/950kg
Products Description
|
Technical specifications
|
|
|
|
|
||||
|
Type
|
250B
|
350B
|
450B
|
|
||||
|
Film width
|
Max.250mm
|
Max.350mm
|
Max.450mm
|
|
||||
|
Bag length
|
65~190mm/120mm~280mm
|
|
130~450mm
|
|
||||
|
Bag width
|
30~110mm
|
50~160mm
|
50~180mm
|
|
||||
|
Product height
|
Max.40mm
|
Max.45mm
|
Max.80mm
|
|
||||
|
Film roll diameter
|
Max.320mm
|
|
|
|
||||
|
Packing rate
|
40~230bags/min
|
|
30~180bags/min
|
|
||||
|
Machine weight
|
410KG
|
490KG
|
550KG
|
|
||||
Application
>What do you want to pack?
Suitable for packing regular objects, such as bread, biscuits, moon cakes, cereal bars, ice cream,Vegetables, chocolate, rusks,tableware, lollipops, etc.

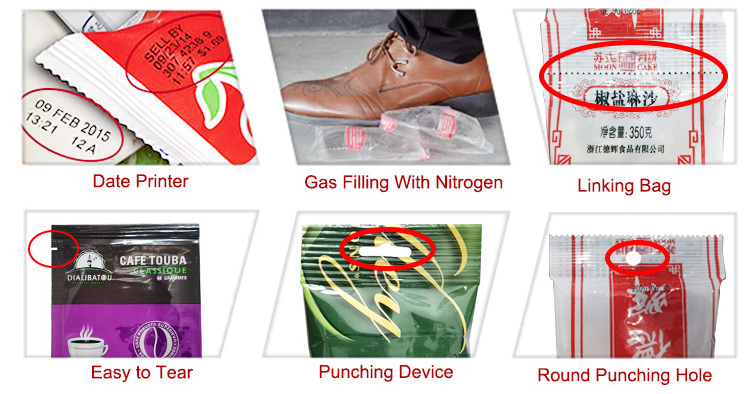

Optional Devices
The packaging machine has date coding,fills the package with nitrogen,makes the linking bag,makes the easy tearing and pinches the package.

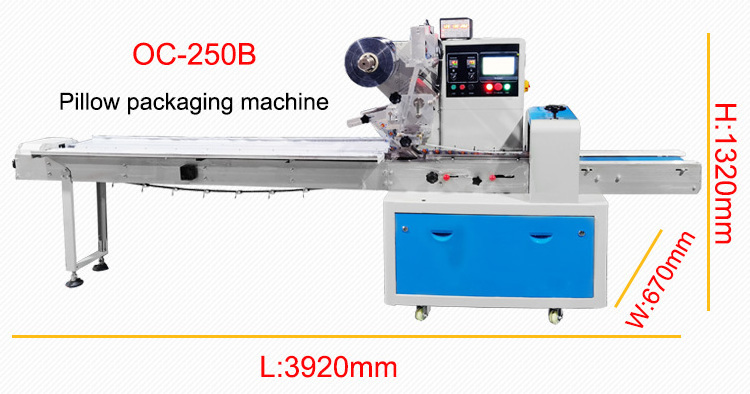

Machine display
7-day process
①
Guide demand
②
Design packaging machine
③Assembly packaging machine
④Inspection packaging machine
⑤Pack and ship
⑥After-sales service
