20 meter tower mast manual telescoping pole vehicle mounted crank mast

20 meter tower mast manual telescoping pole vehicle mounted crank mast

FOB Reference Price: Get Latest Price

≥1 Sets

US $2591.2

≥5 Sets

US $2536.58

≥10 Sets

US $2487.56

≥20 Sets

US $2365.28

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: 20 meter tower mast manual telescoping pole vehicle mounted crank mast

Material:: Aluminium Alloy

Surface treatment:: Anodic oxidation+painting

Color:: army green

Extened Height:: 20m( 49.3ft)

Retracted height:: 2.95m(8.06ft)

Max Head-load:: 10kg

Lift Type:: hand winch lift

Fixed type:: Ground-mounted model

ODM/OEM:: Acceptable

Quick Details

Brand Name:: Talents,aluminum alloymast

Model Number:: TAL-M20-2.95-10-A

Place of Origin:: Tianjin, China

Product name:: 20 meter tower mast manual telescoping pole vehicle mounted crank mast

Material:: Aluminium Alloy

Surface treatment:: Anodic oxidation+painting

Color:: army green

Extened Height:: 20m( 49.3ft)

Retracted height:: 2.95m(8.06ft)

Max Head-load:: 10kg

Lift Type:: hand winch lift

Fixed type:: Ground-mounted model

ODM/OEM:: Acceptable

Product Description

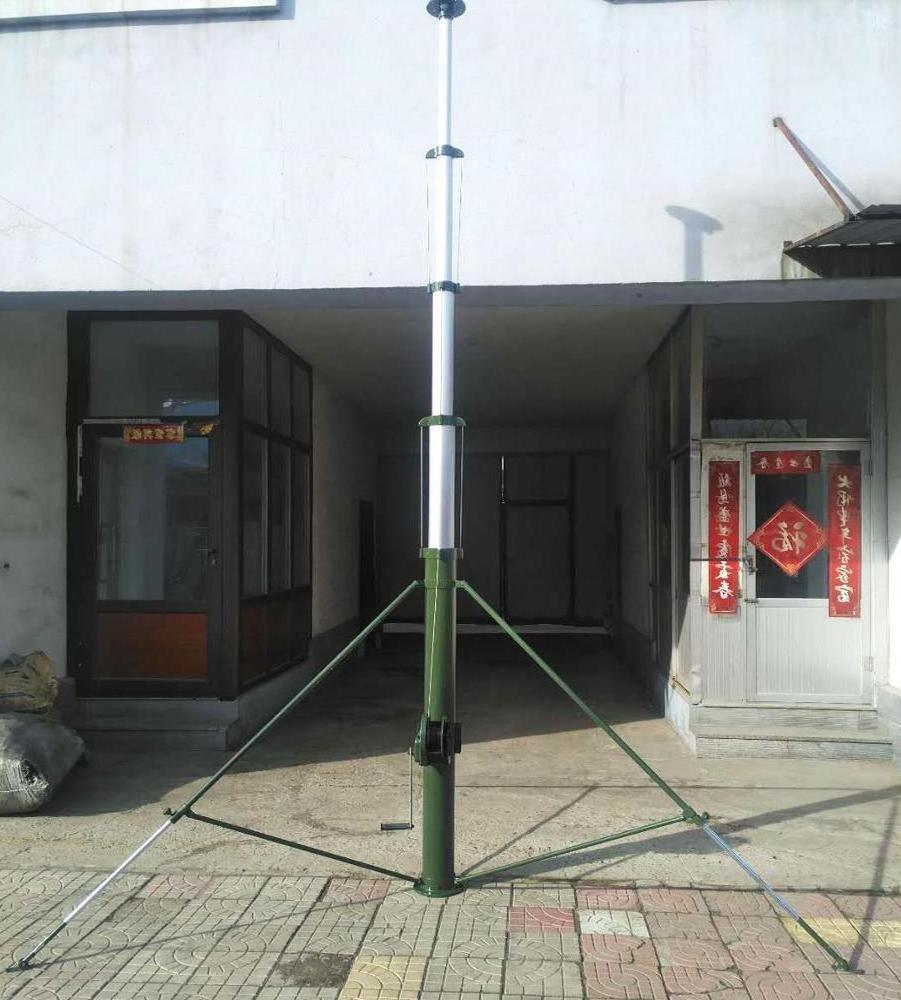

manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle

situation.
Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
no rain go in.
The mast available extended height is 2m to 35m.The payload up to 300kg from 5kg.
It can help lamplight,camera,ham radio,photography,antenna.......
It can be used on the ground or vehicle mounted or the wall......

Specification

Specification 20 meter tower mast manual telescoping pole vehicle mounted crank mast
Model No.	TAL-M20-2.95-10-A
Extended height	20.0m
Retracted height	2.95m
Max head-load	10kg
Mast self weight( without tripod)	around 90kg
Mast sections No.	9sections
Section No.& tube OD*Wall thickness	1#130/5mm 2#105/2.5mm 3# 90/2.0mm 4# 80/2.0mm 5# 70/2.0mm 6# 60/2.0mm 7# 50/2.0mm 8# 40/2.0mm 9# 30/2.0mm

Acessories
Mount model	Ground fixed type---without tripod
Accessories	handle lifting bar----------------------------------------1p Top flange--------------------------------------------------1pc Guy wire-----------------------------------------------------3pcs Guy stakes--------------------------------------------------3pcs stainless steel stakes------------------------------------3pc Ground anchors-------------------------------------------3pcs tripod-----------------------------------------------------------1pc

Details

Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile

If you have other accessories requirement, please contact us separately .

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Packing & Delivery

20 meter tower mast manual telescoping pole vehicle mounted crank mast

Packed into a Plywood case.

Mast and accessories will be packed into a plywood case.

inner matainnig parts will be filled with foam.

Gross weight is around 95kg

Measurement:245*45*50cm

if special request on the packge, we can do it for you.

Certifications

Other Specification

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube range(mm)	Self weight (kg)	Max.payload (kg)
TAL-M3-1-20	3	3	1.0	70-90	15	20
TAL-M4-1.5-30	4	3	1.5	50-80	15	30
TAL-M4-1-20	4	3	1.0	70-90	16	20
TAL-M4-1.6-10	4	3	1.6	60-80	14	10
TAL-M5-1.65-10	5	4	1.65	50-80	17	10
TAL-M5-1.2-15	5	5	1.2	40-90	20	15
TAL-M5-1.5-60	5	5	1.5	50-90	20	60
TAL-M5-1.7-100	5	6	1.7	60-130	35	100
TAL-M6-1.7-10	6	5	1.7	50-90	21	10
TAL-M6-1.5-100	6	6	1.5	60-130	40	100
TAL-M6-1.3-60	6	7	1.3	40-130	32	60
TAL-M7-1.8-30	7	7	1.8	40-105	23	30
TAL-M8-1.5-20	8	8	1.5	40-130	34	20
TAL-M9-1.8-40	9	7	1.8	40-105	25	40
TAL-M9-1.8-30	9	7	1.8	40-105	25	30
TAL-M9-1.8-100	9	7	1.8	60-160	43	100
TAL-M9-1.9-5	9	7	1.9	30-90	25	5
TAL-M10-1.95-10	10	7	1.95	30-90	26	10
TAL-M10-2-40	10	7	2	30-105	31	40
TAL-M12-2.2-10	12	7	2.2	30-90	28	10
TAL-M12-2.1-15	12	7	2.1	30-90	28	15
TAL-M12-2-40	12	8	2.2	40-130	44	40
TAL-M15-2.45-10	15	8	2.45	30-105	33	10
TAL-M15-2.6-35	15	9	2.6	30-130	40	35
TAL-M15-2.5-200	15	7	2.5	70-200	200	70
TAL-M16-2.6-10	16	8	2.6	30-105	35	10
TAL-M18-2.7-10	18	9	2.7	30-130	47	10
TAL-M18-3.2-30	18	9	3.2	30-130	48	30
TAL-M18-3.7-100	18	7	3.7	50-130	47	100
TAL-M20-2.95-10	20	9	2.95	30-130	55	10
TAL-M20-3.20-20	20	8	3.20	40-130	58	20
TAL-M22-3.15-10	22	9	3.15	30-130	58	10
TAL-M25-3.4-10	25	10	3.4	30-150	72	10
TAL-M25-3.5-250	25	10	3.5	80-280	90	250
TAL-25-3.6-20	25	9	3.6	40-150	71	20
TAL-M30-3.85-10	30	10	3.85	30-150	84	10
TAL-M35-4.5-25	35	10	4.5	40-180	130	25

Workshop

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
