Quick Details
-
Productivity:
-
14M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wanshan
-
Weight:
-
2500 kg
-
Dimension(L*W*H):
-
4200*1700*1650
-
Product name:
-
Trailer Concrete Pump
-
Keyword:
-
Portable Concrete Pump
-
Application:
-
Construction Projects
-
After Warranty Service:
-
Spare parts supply
-
Engine:
-
diesel
-
Max Aggregate Size:
-
30MM
-
Diameter of pipe:
-
80/100/125mm
-
Concrete pump type:
-
Diesel Concrete Pump Machine
-
Name:
-
Mobile Concrete Mixing Pump
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
60M
-
Max. horizontal conveying distance:
-
150M
-
Productivity:
-
14M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wanshan
-
Weight:
-
2500 kg
-
Dimension(L*W*H):
-
4200*1700*1650
-
Product name:
-
Trailer Concrete Pump
-
Keyword:
-
Portable Concrete Pump
-
Application:
-
Construction Projects
-
After Warranty Service:
-
Spare parts supply
-
Engine:
-
diesel
-
Max Aggregate Size:
-
30MM
-
Diameter of pipe:
-
80/100/125mm
-
Concrete pump type:
-
Diesel Concrete Pump Machine
-
Name:
-
Mobile Concrete Mixing Pump

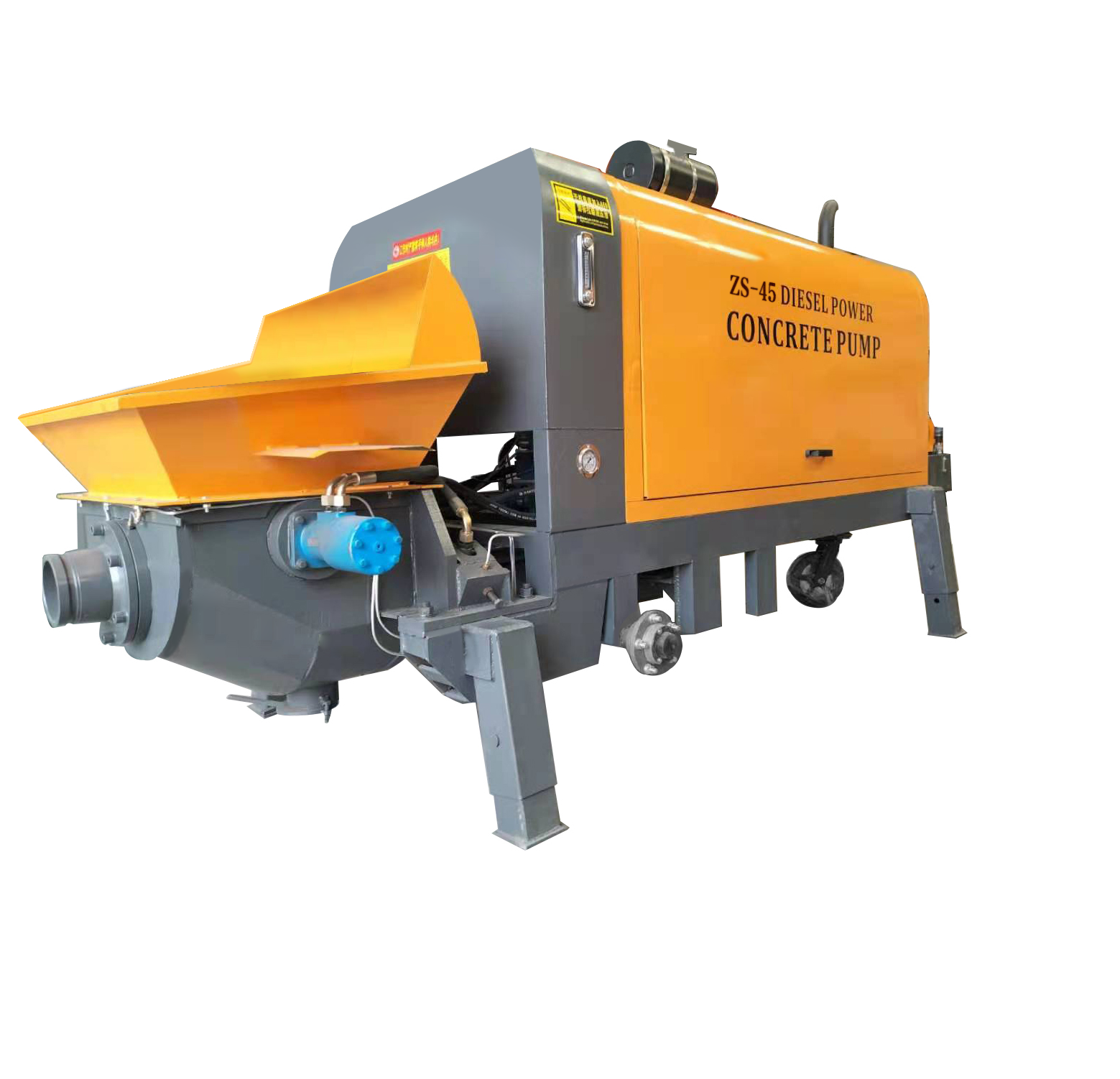

Product Description
Concrete pump is an important equipment in construction engineering. It is mainly used to transport concrete/mortar to a higher or farther distance.
Use scene, building, bridge, foundation, pavement and other places requiring concrete pouring.
Product Display
Specification
|
Metric dimensions specifications
|
|
|
|
|
||||
|
Model
|
XK-15
|
ZS23 DIESEL
|
XK-30
|
ZS30
|
||||
|
Weight (KG)
|
600
|
8000
|
1300
|
1000
|
||||
|
Aggregate size (MM)
|
＜20
|
＜20
|
＜30
|
＜30
|
||||
|
Conveying pipe diameter (MM)
|
Φ80
|
Φ80
|
Φ100/Φ80
|
Φ100/Φ80
|
||||
|
Dimension (M)
|
2.3*0.7*1.1
|
2.7*1.1*1.2
|
3.0*1.2*1.3
|
2.9*1.4*1.5
|
||||
|
Conveying height (M)
|
15-20
|
10-20
|
40-80
|
20-30
|
||||
|
Conveying distance (M)
|
40-50
|
40-60
|
80-160
|
100-200
|
||||
|
Power (KW)
|
15
|
31.5HP
|
30
|
41HP
|
||||
|
Theoretical efficiency (M³/H)
|
6-8
|
6-10
|
10-15
|
7-12
|
||||
|
Metric dimensions specifications
|
|
|
|
|
||||
|
Model
|
XK-37
|
zs35
|
ZS40
|
|
||||
|
Weight (KG)
|
1500
|
1400
|
1700
|
|
||||
|
Aggregate size (MM)
|
＜30
|
＜30
|
＜30
|
|
||||
|
Conveying pipe diameter (MM)
|
Φ100/Φ80
|
Φ100/Φ80
|
Φ100/Φ80
|
|
||||
|
Dimension (M)
|
3.8*1.5*1.6
|
3.4*1.4*1.5
|
3.5*1.6*1.8
|
|
||||
|
Conveying height (M)
|
50-100
|
20-50
|
30-90
|
|
||||
|
Conveying distance (M)
|
100-200
|
80-130
|
100-180
|
|
||||
|
Power (KW)
|
37kw
|
58.5HP DIESEL 4102
|
85HP DIESEL 4105
|
|
||||
|
Theoretical efficiency (M³/H)
|
12-16
|
10-16
|
15-20
|
|
||||
|
Metric dimensions specifications
|
|
|
|
|
||||
|
Model
|
XK-45
|
XK-50
|
ZS-50 Diesel
|
ZS-60Diesel
|
||||
|
Weight (KG)
|
2300
|
2500
|
2200
|
2980
|
||||
|
Aggregate size (MM)
|
＜30
|
＜40
|
＜30
|
＜40
|
||||
|
Conveying pipe diameter (MM)
|
Φ100/Φ80
|
Φ100/Φ80
|
Φ100/Φ80
|
Φ100/Φ120
|
||||
|
Dimension (M)
|
4.7*1.5*1.6
|
4.2*1.5*1.6
|
3.6*1.2*1.5
|
4.2*1.4*1.5
|
||||
|
Conveying height (M)
|
80-150
|
100-180
|
80-120
|
100-150
|
||||
|
Conveying distance (M)
|
180-250
|
200-300
|
150-250
|
200-300
|
||||
|
Power (KW)
|
45
|
55
|
Diesel 4108 72KW
|
Diesel 6105 130KW
|
||||
|
Theoretical efficiency (M³/H)
|
20-25
|
30-40
|
18-25
|
30-40
|
||||
Advantage: Hot Sale Horizontal 20Meters Concrete Line Pump High Opinion Concrete Mixer With Pump For Building Use
1. The three-pump open system is adopted, and the hydraulic circuit does not interfere with each other, and the system runs.
2.The optimally designed hopper is easy to clean and has better suction performance.
3. With remote control function, the operation is safer and more convenient.
4. All parts and components adopt the national standard, and the interchangeability is good.
Concrete Line Pump
All our machines are presented with related accessories, and the price of our concrete pumps definitely has a market advantage
