Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ADB
-
Model Number:
-
3623c
-
Usage:
-
Wardrobe slide, cabinet slide, shoe cabinet slide
-
name:
-
Heavy-duty slides for high-deep cabinets, heavy-duty sliding cabinets
-
Specifications:
-
400mm,450mm,500mm
Quick Details
-
Application:
-
Kitchen, Bathroom
-
Design Style:
-
Contemporary
-
Material:
-
Cold rolled steel + nylon
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ADB
-
Model Number:
-
3623c
-
Usage:
-
Wardrobe slide, cabinet slide, shoe cabinet slide
-
name:
-
Heavy-duty slides for high-deep cabinets, heavy-duty sliding cabinets
-
Specifications:
-
400mm,450mm,500mm

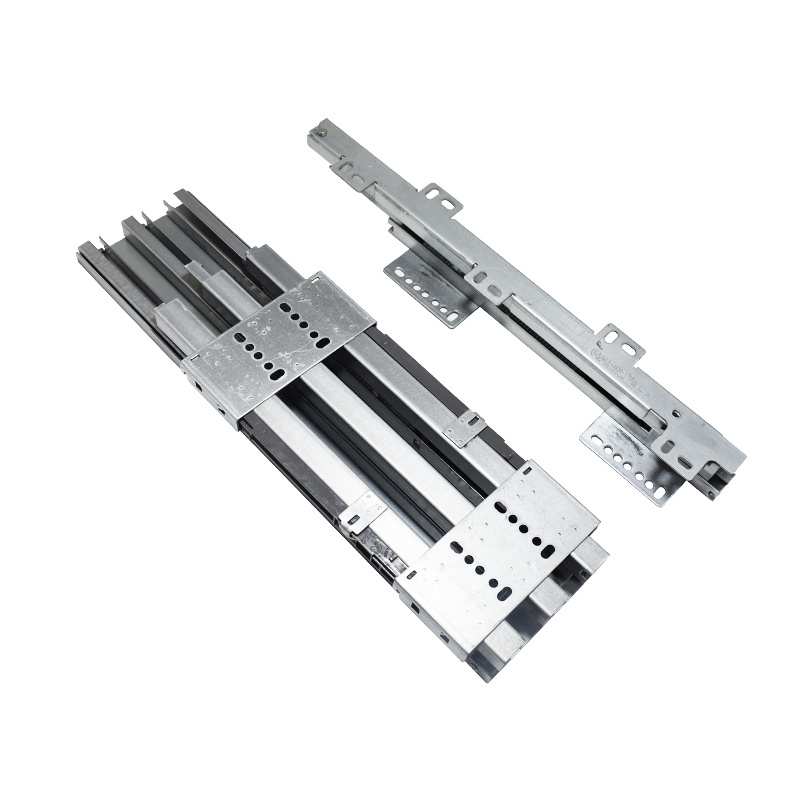

HEAVY SLIDING RAIL
Easily Solve Your Worries And Can Be Installed In Various
Tall Cabinets To Easily Store And Save Space
○
●
○
DOUBLE DAMPING BUFFER ROD
The Design Of The Double Damping Buffer Rod Makes
The Sliderail More Silent And The Buffer Closure
Design Prevents Hands From Being Caught
○
●
○
EFFECT DISPLAY
The Upper And Lower Pails Are Equipped
With Hydraulic Damping Buffers
Push Down The Cabinet To Slowly
When You Want To Close The Cabinet
And Automatically Close
The Force Is More Even!
○
●
○
BUFFER DEVICE
Suitable For Allkinds Of Home
Impro Vementandtoolingoccasions
○
●
○
PRODUCT INFORMATION
Life Customization /One Stop Shopping
○
●
○
|
Name
|
Heavy Rail For High And Deep Cabinet
|
Material
|
Cold Rolled Steel + Nylon
|
||
|
Model
|
400/450/500
|
Features
|
Damping Buffer
|
||
|
Installation Position
|
Cabinet Top And Bottom
|
Product Color
|
Galvanized
|
||
|
Applicable Scene
|
Wardrobebookcase,Locker，Cupboard，Etc
|
|
|
||
UPPER RAIL SIZE (450MM )
Slide rail height 44.7mm
○
●
○
LOWER RAIL SIZE(450MM)
the height of slide rail is 43.8mm total length 802mm
○
●
○
LOWER RAIL SIZE(450MM)
PARAMETER INFORMATION
○
●
○
|
name
|
model
|
contraction length
|
pull out length
|
depth of mobile cabinet
|
depth of fixed cabinet
|
weight bearing
|
|
high vertial cabinet heavy slide
|
400
|
430mm
|
405mm
|
420mm
|
>440mm
|
80kg
|
|
|
450
|
480mm
|
455mm
|
470mm
|
>490mm
|
80kg
|
|
|
500
|
530mm
|
505mm
|
520mm
|
>540mm
|
80kg
|
