Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ORICTION
-
Certification:
-
ISO9001
-
Car Make:
-
RENAULT
-
Model Number:
-
20" x 20"
-
density:
-
2
-
color:
-
brown
-
width:
-
20"
-
length:
-
20"
-
thickness:
-
10mm
Quick Details
-
OE NO.:
-
Form
-
Size:
-
508
-
Material:
-
non asbestos
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ORICTION
-
Certification:
-
ISO9001
-
Car Make:
-
RENAULT
-
Model Number:
-
20" x 20"
-
density:
-
2
-
color:
-
brown
-
width:
-
20"
-
length:
-
20"
-
thickness:
-
10mm
F riction Sheet
Quick Details
Place of Origin: Ningbo, China (Mainland)
Brand Name: ORICTION
Product: Non Asbestos Woven Laminated Flat Friction Sheet
Name: Friction sheet
Certificate: ISO9001:2008
Wear Rate (cm3/N.m) at 100C: 0. 31 X 10-7
Wear Rate (cm3/N.m) at 150C: 0.35 X 10-7
Wear Rate (cm3/N.m) at 200C: 0.37 X 10-7
Wear Rate (cm3/N.m) at 2 50C: 0.39 X 10-7
Wear Rate (cm3/N.m) at 3 00C: 0.41 X 10-7
Wear Rate (cm3/N.m) at 35 0C: 0.42 X 10-7
Normal thickness: 5-3 5mm ( 3/16- 1 2/5inch)
Normal width: 5 0 8mm (20inch)
N ormal length: 508mm (20inch)
Max temp: 4 25 Degree C
Product Description

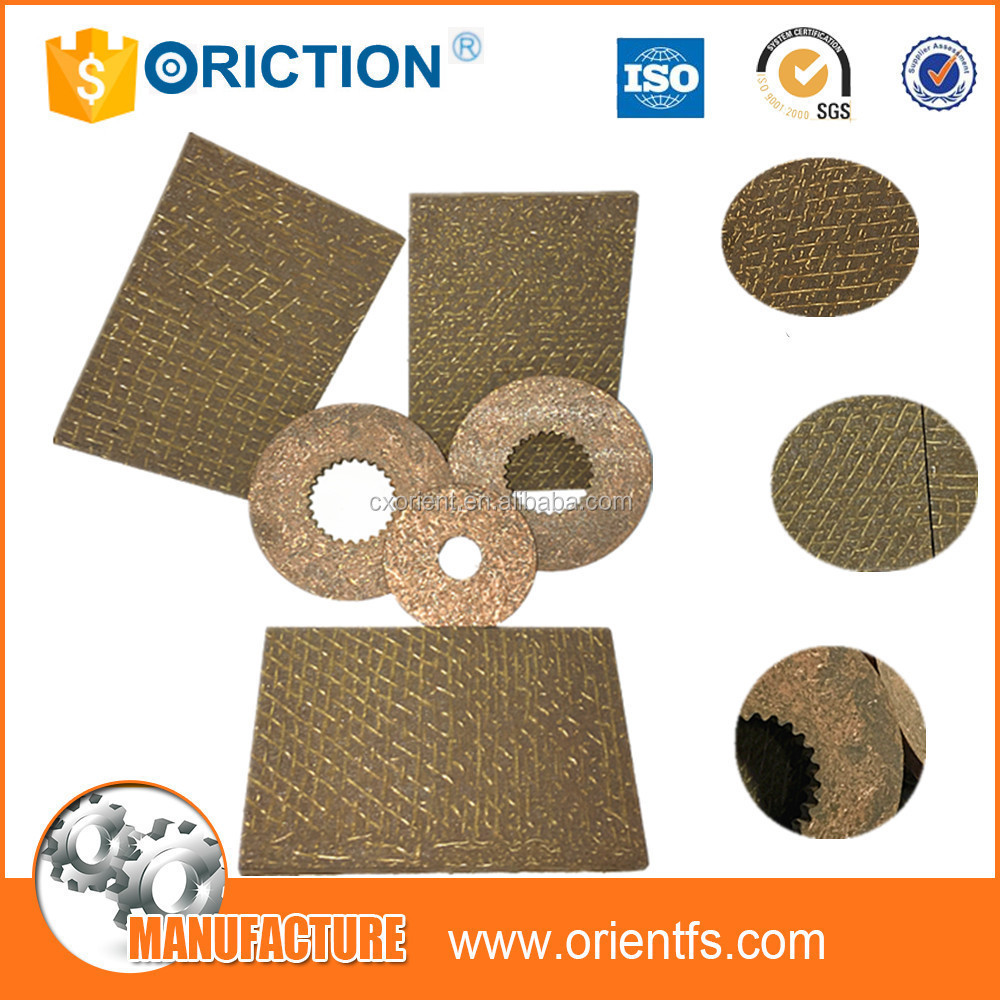

Description of Non Asbestos Woven Laminated Flat Friction Sheet :
Orient Non Asbestos Woven Laminated Sheet with exceedingly high hardness and strength. The material is woven from Kevlar and other synthetic fabric yarns containing brass wire. After being impregnated with special resin and pressed into rigid flat sheet, the material shows outstandingly good resistance to wear and compression and excellent stability. O ur friction sheet can be processed into gear-shaped brake parts due to its high hardness and strength. It can be installed in industrial brake and clutch system, power transmission system and electric magnetic brake engine.
Features of
Non Asbestos Woven Laminated Flat Friction Sheet
:
1.
Stable friction coefficient
2. Low wear rate
3. High tensile strength
4. Exactly flat
Data Sheets of Non Asbestos Woven Laminated Flat Friction Sheet :
Wear Performance
|
Interface Temperature |
Friction coefficient |
Wear rate(CM3/NM) |
|
100°C |
0.40—0.65 |
<0. 31 ×10-7 |
|
150°C |
0.3 7 —0.6 3 |
≤ 0.35 ×10-7 |
|
200°C |
0.3 5 —0.6 2 |
≤ 0.37 ×10-7 |
|
2 50°C |
0.3 4 —0.6 1 |
≤ 0.39 ×10-7 |
|
3 00°C |
0.3 4 —0.60 |
≤ 0.41 ×10-7 |
|
35 0°C |
0.3 3 —0.60 |
≤ 0.42 ×10-7 |
Note: Other S ize, C olor, and M aterial can be manufactured according to your request.
