Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
3000 KG
-
Power (kW):
-
10
-
Applicable Industries:
-
Furniture, wood, woodworking, office
-
Brand:
-
JYC
-
Application:
-
Wood door, office furniture, composite panels, box panel
-
Working Principle:
-
High Frequency Heating
-
Advantage:
-
Shorten heating time and save energy consumption
-
HF power:
-
10KW
-
Working size:
-
1600mm*800mm
-
Maximum pressure:
-
20T
-
After-sales Service:
-
Online support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JYC
-
Machine Type:
-
HF composite veneer press
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
3000 KG
-
Power (kW):
-
10
-
Applicable Industries:
-
Furniture, wood, woodworking, office
-
Brand:
-
JYC
-
Application:
-
Wood door, office furniture, composite panels, box panel
-
Working Principle:
-
High Frequency Heating
-
Advantage:
-
Shorten heating time and save energy consumption
-
HF power:
-
10KW
-
Working size:
-
1600mm*800mm
-
Maximum pressure:
-
20T
-
After-sales Service:
-
Online support

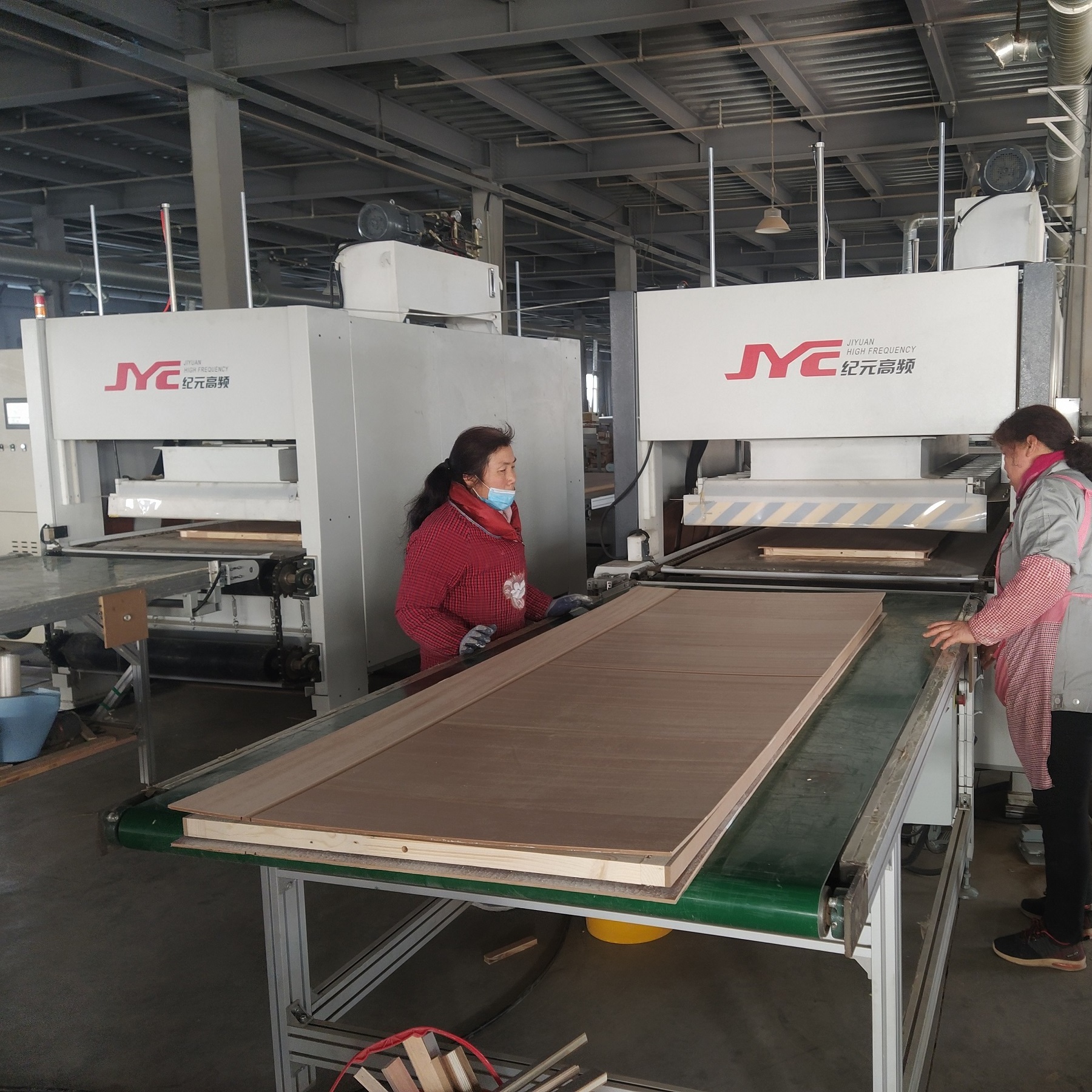

JYC High Frequency Wood Laminated Press Machine (Pass-through type)
Sample & Application
Suitable for
office furniture countertops, three-layer solid wood composite panels, composite door veneers, wooden box panel composites
.
|
Model No.
|
GJT1608-Y20-JY
|
GJT2513-Y50(100)-JY
|
GJT2813-Y50(100)-JY
|
||
|
Power
|
AC 380V,50Hz,3phases 5wires
|
|
|
||
|
HF Power
|
10KW/20kw
|
20KW/50KW
|
20KW/50KW
|
||
|
Frequency
|
6.78MHz-27.12MHz
|
|
|
||
|
Working size
|
1600mm*800mm
|
2500mm*1250mm
|
2800mm*1250mm
|
||
|
Max pressure
|
20T
|
50T/100T
|
50T/100T
|
||
Features:
1. High-frequency heating composite process, safe, reliable, and stable;
2. high-frequency heating, good uniformity, like skin surface temperature,
not easy to deform
;
3. The thickness of the composite panel is
2-12mm
, and the heating efficiency is the same
4. Can be
single or double-sided compound heating
, free to switch;
5. Pass through-type in, out of the material, can be used alone or connected to other machines;
6. One-time heating, no need for subsection, small footprint.
We can provide customized services according to the different needs of customers.
Foshan Jiyuan High frequency woodworking Equipment Co., Ltd, brand JYC was established in 1993. And has been committed to the research and development, manufacturing, and sales of high-frequency(radio-frequency) dielectric heating technology and equipment.
Our main products include HF (RF) generator, HF board edge gluing press series, HF frame assembly series, HF wood vacuum dryer series, HF bending wood press series, HF laminate press series , etc. And these machines are widely used furniture, flooring, wood-based panels, packaging, musical instruments, handicrafts, bamboo processing, plastics, textiles, food, chemicals and many other industries and fields. Our machine has served thousands of domestic and foreign wood enterprises, as well as China and abroad have more than 20 related professional universities, that use JYC's school-use experimental equipment. We have a professional technical team and can provide expert-level technical services, 24-hour online.
JYC will continue to provide the most professional and intelligent high-frequency woodworking machinery for global wood industry users to create the greatest value for users.
Our main products include HF (RF) generator, HF board edge gluing press series, HF frame assembly series, HF wood vacuum dryer series, HF bending wood press series, HF laminate press series , etc. And these machines are widely used furniture, flooring, wood-based panels, packaging, musical instruments, handicrafts, bamboo processing, plastics, textiles, food, chemicals and many other industries and fields. Our machine has served thousands of domestic and foreign wood enterprises, as well as China and abroad have more than 20 related professional universities, that use JYC's school-use experimental equipment. We have a professional technical team and can provide expert-level technical services, 24-hour online.
JYC will continue to provide the most professional and intelligent high-frequency woodworking machinery for global wood industry users to create the greatest value for users.
1. Advantage of our company
Rich tech experience
: JYC was established in 1993 and has a long search and development history in
high frequency technology;
Source factory : Focus on HF woodworking machines with reliable quality.
After-sale warranty : Perfect after-sale service.
2. How long is your delivery time?
Regular products, the delivery time of 20-30 days, customized products,
delivery time to be the specific actual situation.
3. Payment method
Primary payment method: T/T. Other payment terms can negotiate.
4. Guarantee & After-sale Service?
One year warranty freely (except under artificial circumstances) , and provide life-long maintenance.
5. If I need to customize different working sizes, can you help us produce them?
Yes, we can according to your needs, custom-made corresponding equipment, provide a full range of technical services.
high frequency technology;
Source factory : Focus on HF woodworking machines with reliable quality.
After-sale warranty : Perfect after-sale service.
2. How long is your delivery time?
Regular products, the delivery time of 20-30 days, customized products,
delivery time to be the specific actual situation.
3. Payment method
Primary payment method: T/T. Other payment terms can negotiate.
4. Guarantee & After-sale Service?
One year warranty freely (except under artificial circumstances) , and provide life-long maintenance.
5. If I need to customize different working sizes, can you help us produce them?
Yes, we can according to your needs, custom-made corresponding equipment, provide a full range of technical services.
