Quick Details
-
Model Number:
-
WLTRH
-
Name:
-
Olive Rubber Hose
-
Material:
-
Synthetic Rubber with steel wire
-
Diameter:
-
152mm-1300mm
-
Working pressure:
-
0.4MPa to 2.5MPa
-
Working temperature:
-
-20 to 40 degree
-
Advantages:
-
Wear resistance
-
Feature:
-
Corrosion resistance
-
Application:
-
Mining Sand other flow with solids
-
Connection:
-
Flange
-
Keywords:
-
Rubber hose
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Olive Hose
-
Model Number:
-
WLTRH
-
Name:
-
Olive Rubber Hose
-
Material:
-
Synthetic Rubber with steel wire
-
Diameter:
-
152mm-1300mm
-
Working pressure:
-
0.4MPa to 2.5MPa
-
Working temperature:
-
-20 to 40 degree
-
Advantages:
-
Wear resistance
-
Feature:
-
Corrosion resistance
-
Application:
-
Mining Sand other flow with solids
-
Connection:
-
Flange
-
Keywords:
-
Rubber hose
Products Description

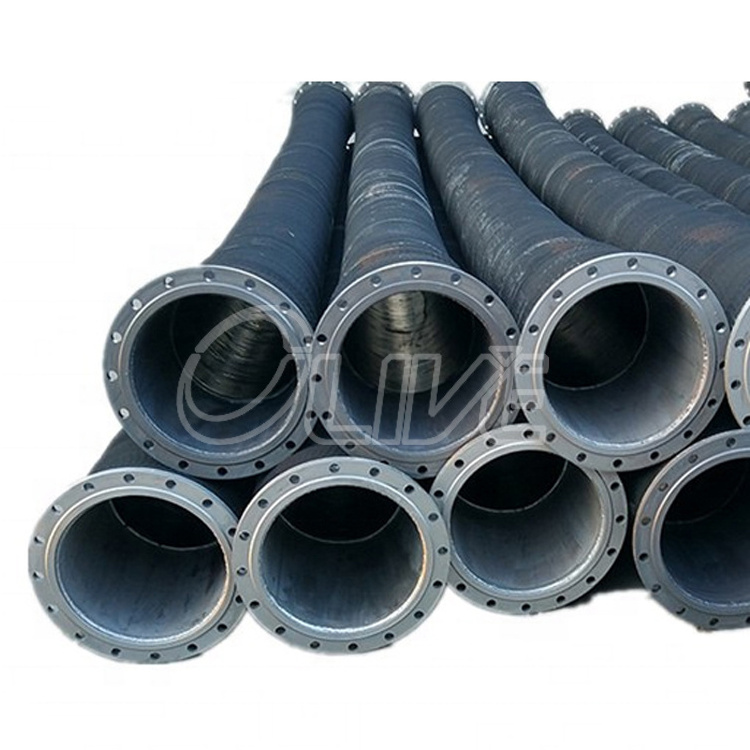

- Customized Suction Dredg Rubber Hose -
|
Tube
|
NR, BR, SBR
|
|
Reinforcement
|
High tensile strength fabrics
|
|
Cover
|
NR, CR
|
|
Ideal Working Temperature
|
-20℃ to 80℃
|
|
Safety Factor
|
3:1
|
|
Application
|
Installed in between the pump and cutter of the dredger,suction the slurry.Suction hose&Armored hose with HB steel ring in,suitable for limestone,granite,coral,and mineraletc.
|
|
Advantages
|
High Abrasion Resistance
|
|
|
Light Weight
|
|
|
Oil and Heat Resistant
|
|
|
Flexible,easy to bending
|
|
Size
|
I.D.
|
W.P.
|
Length
|
|||
|
8inch
|
200mm
|
15bar~20bar
|
11.8m
|
|||
|
10inch
|
250mm
|
15bar~20bar
|
11.8m
|
|||
|
12inch
|
300mm
|
15bar~20bar
|
11.8m
|
|||
|
16inch
|
400mm
|
15bar~20bar
|
11.8m
|
|||
|
20inch
|
500mm
|
15bar~20bar
|
11.8m
|
|||
|
24inch
|
600mm
|
15bar~20bar
|
11.8m
|
|||
|
26inch
|
650mm
|
15bar~20bar
|
11.8m
|
|||
|
30inch
|
750mm
|
15bar~20bar
|
11.8m
|
|||
|
32inch
|
800mm
|
15bar~20bar
|
11.8m
|
|||
|
34inch
|
850mm
|
15bar~20bar
|
11.8m
|
|||
|
NOTE: ED900mm&1200mm, other parameters are by your requirements.
|
|
|
|
|||
