- Product Details
- {{item.text}}
Quick Details
-
Capacity:
-
2000kg
-
Use:
-
Industrial Warehouse Storage Racking
-
Material:
-
Q235 Steel
-
Product name:
-

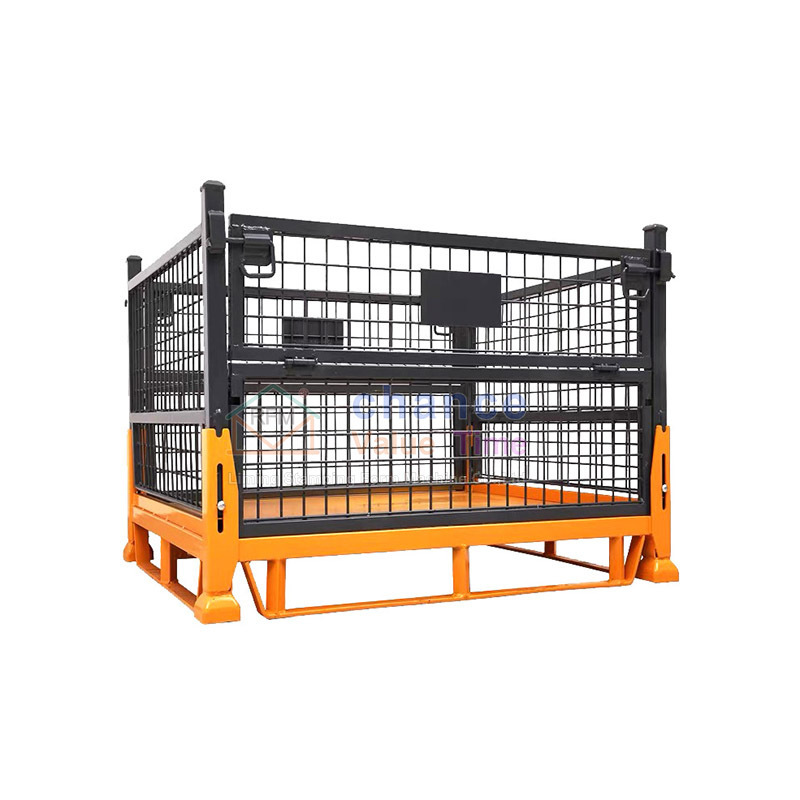

Metal pallet box
-
Feature:
-
Strong load-bearing, long service life
-
Color:
-
Can be customized
-
Surface treatment:
-
Electrostatic Powder Coating
-
Stackable quantity:
-
4 layers
-
External Dimension:
-
customizable
-
Internal Dimension:
-
customizable
-
Finish:
-
Hot dip galvanized
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Lockheer
-
Model Number:
-
LK-QQ-B07
-
Capacity:
-
2000kg
-
Use:
-
Industrial Warehouse Storage Racking
-
Material:
-
Q235 Steel
-
Product name:
-
Metal pallet box
-
Feature:
-
Strong load-bearing, long service life
-
Color:
-
Can be customized
-
Surface treatment:
-
Electrostatic Powder Coating
-
Stackable quantity:
-
4 layers
-
External Dimension:
-
customizable
-
Internal Dimension:
-
customizable
-
Finish:
-
Hot dip galvanized
Specification of box pallet
| Model No. | LK-QQ-B07 |
| Exterior Dimension | 1330*1120*1125 mm |
| Interior Dimension | 1270*1060*984 mm |
| Inside Cubic Capacity | 1.32 CU.M |
| MAX Payload | 1500 kg |
| Stacking Capacity | In transit:2/Static:4 |
| Loaded in1x40'GP | 144 SET |
| Finish | Hot-dip galvanized |
| Special feature | 1 .Material spcc/ss400 |
| 2.Surface treatment: electro galvanized or paint coating with high anti-corrosion performance & compliant with environment protect trend. | |
| 3.Can be assembled and discharged by one person only without assistant tools | |
| 4.Three (3) stacking capacity in storage | |
| 5.Special for transportation and storage of liquid ketchup and other foodstuffs. |
1. What kind of finish do you provide for your goods?
---A. Electro galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B. Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
2. What is the loading capacity?
---In general, we have a light duty(100~300kg) model, medium duty(400~800kg) model and
heavy duty(1000~1700kg) model available for your choice.
3. Which product can be used in cold storage?
---Mobile rack, wire container, and roll cage are all widely used in cold storage.
4.I like your design, but couldn‘t find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
5.I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
6.I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment.
7.What is the minimum quantity I can order?
--1x20'GP - qty is variable depending on the size
8.What is your average production lead time?
--2-3 weeks against formal order and deposit.
9.Do I get any guarantee from your company?
-5 years warranty in the case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot-dip galvanized).
