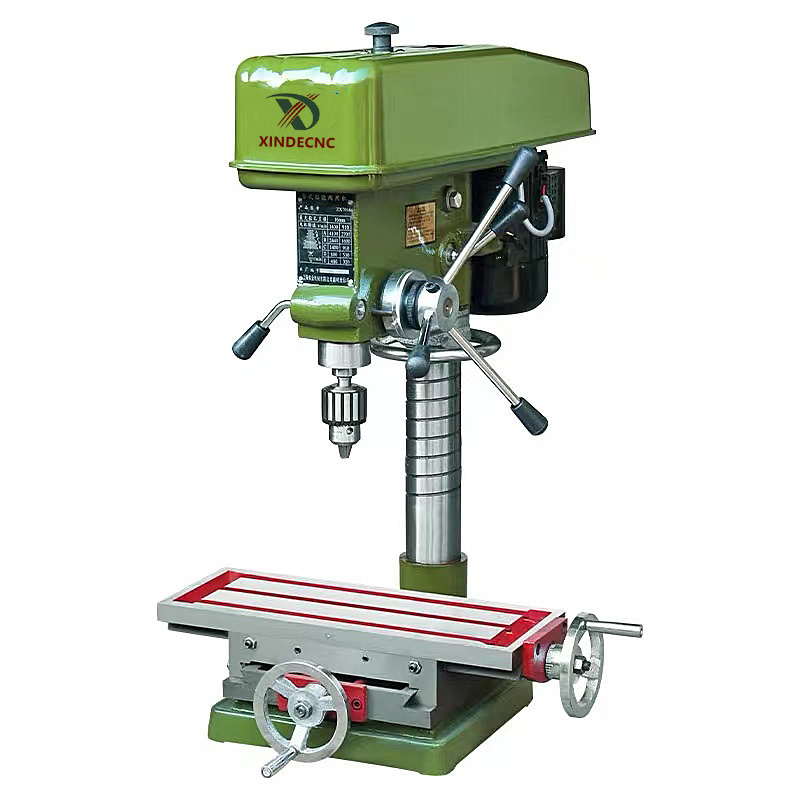

Small Z516column-type cross-table vertical milling and drilling machine. Various specifications can be customized.
Small Z516column-type cross-table vertical milling and drilling machine. Various specifications can be customized.
Small Z516column-type cross-table vertical milling and drilling machine. Various specifications can be customized.
Small Z516column-type cross-table vertical milling and drilling machine. Various specifications can be customized.
Small Z516column-type cross-table vertical milling and drilling machine. Various specifications can be customized.
Small Z516column-type cross-table vertical milling and drilling machine. Various specifications can be customized.
Small Z516column-type cross-table vertical milling and drilling machine. Various specifications can be customized.
Small Z516column-type cross-table vertical milling and drilling machine. Various specifications can be customized.

Small Z516column-type cross-table vertical milling and drilling machine. Various specifications can be customized.

FOB Reference Price: Get Latest Price
≥1 Pieces
US $549
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Brand Name:
Tengzhou Xinde CNC Machine Tool Co., Ltd
Model Number:
Z516
Voltage:
220/380v
Dimension(L*W*H):
790*440*960
Weight (KG):
56 KG
Marketing Type:
Hot Product 2024
Keyword:
VerticalDrilling Machine
Machine type:
Vertical Drilling Milling
After-sales Service Provided:
Engineers
Application:
Metal Processing
Usage:
Metal Drilling Milling
Max. drilling dia.:
16mm
Function:
Tapping Holes
Spindle speed range:
480-4100rpm
Spindle speed series:
5
Total height:
1037mm

Quick Details

type:
Pillar Drilling Machine
Max. Drilling Dia. (mm):
16/20/25/32
Range of Spindle Speed(r.p.m):
480 - 4100 r.p.m
Place of Origin:
Shandong, China
Brand Name:
Tengzhou Xinde CNC Machine Tool Co., Ltd
Model Number:
Z516
Voltage:
220/380v
Dimension(L*W*H):
790*440*960
Weight (KG):
56 KG
Marketing Type:
Hot Product 2024
Keyword:
VerticalDrilling Machine
Machine type:
Vertical Drilling Milling
After-sales Service Provided:
Engineers
Application:
Metal Processing
Usage:
Metal Drilling Milling
Max. drilling dia.:
16mm
Function:
Tapping Holes
Spindle speed range:
480-4100rpm
Spindle speed series:
5
Total height:
1037mm
Product description: 1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reamingmilling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blindand deep hole is very convenient. Widely used in machinery manufacturing, workshop production andconstruction processing, etc.. 2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, widespeed range, high speed operation, novel appearance, convenient maintenance and so on.
model
Z512
Maximum drilling diameter
12.7mm
Column diameter
70mm
Maximum stroke of spindle
100mm
Distance from spindle centerline to column surface
193mm
Maximum distance from spindle end to worktable
326mm
Maximum distance from spindle end to base
556mm
Spindle taper
B16
Spindle speed range
480-4100rpm
Spindle speed series
5
Intermediate work surface dimensions
265x265mm
Effective dimensions of base work surface
250x300mm
Total height
1037mm
electric motor
370/550w
Rated voltage
220/380v
Gross weight/net weight
115/92kg
Packaging size (length x width x height)
790x440x960
Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
