Quick Details
-
Tube Contracting Cycle (s):
-
3 - 5
-
Max. Tube Contracting Length (mm):
-
100
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DLX
-
Year:
-
2022
-
Power (kW):
-
4
-
Weight (KG):
-
300
-
Product name:
-
Wire Rope Swaging Machine Hydraulic Crimping Machine Hose
-
Power:
-
4kW
-
Model:
-
DLX-51
-
Speed:
-
1400R/MIN
-
Scale accuracy:
-
0.02mm
-
Crimping outer diameter:
-
5-80mm
-
Machine weight:
-
230KG
-
Dimensions:
-
750*500*1000mm
-
Key words:
-
Tube End Forming Machines
-
Type:
-
Tube End Forming Machine Hydraulic Horse Pipe Crimping Machine
Quick Details
-
Max.Shrinking Capacity (Thickness)(mm):
-
4 mm
-
Marketing Type:
-
New Product 2022
-
Max.Shrinking Capacity (Diameter)(mm):
-
80 mm
-
Tube Contracting Cycle (s):
-
3 - 5
-
Max. Tube Contracting Length (mm):
-
100
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DLX
-
Year:
-
2022
-
Power (kW):
-
4
-
Weight (KG):
-
300
-
Product name:
-
Wire Rope Swaging Machine Hydraulic Crimping Machine Hose
-
Power:
-
4kW
-
Model:
-
DLX-51
-
Speed:
-
1400R/MIN
-
Scale accuracy:
-
0.02mm
-
Crimping outer diameter:
-
5-80mm
-
Machine weight:
-
230KG
-
Dimensions:
-
750*500*1000mm
-
Key words:
-
Tube End Forming Machines
-
Type:
-
Tube End Forming Machine Hydraulic Horse Pipe Crimping Machine

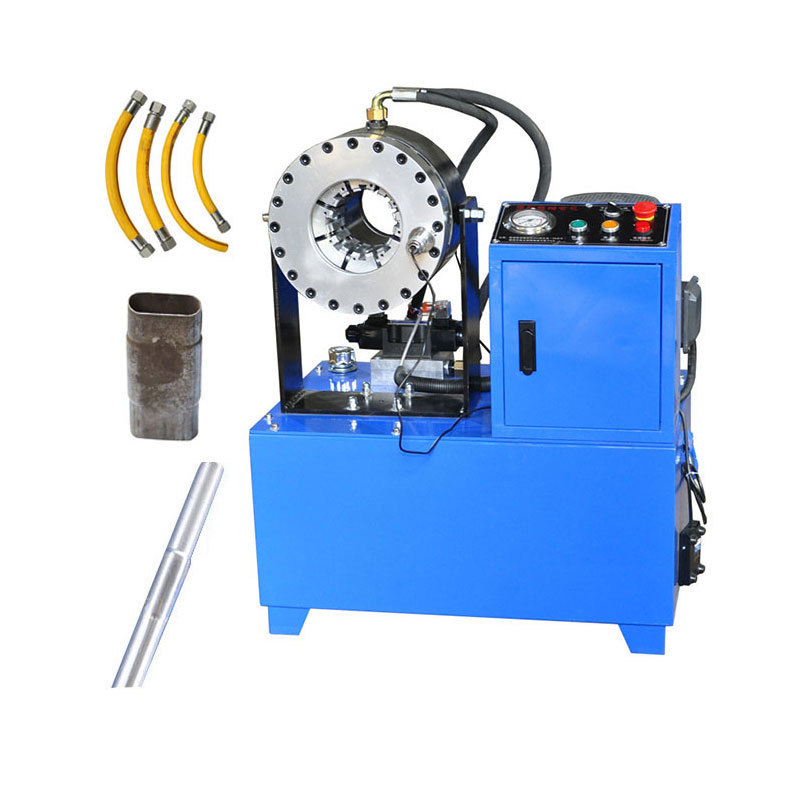

Factory Sales Automatic Hydraulic Electric Tube End Forming Machine Wire Rope Swaging Machine Hydraulic Crimping Machine Hose
Professional automatic big opening size hose ferrule crimping machine
Hose crimping machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.
model: | DLX-51 |
Voltage: | 380V 50Hz three-phase |
Power: | 4kW (oil pump motor) |
Crimping outer diameter: | 5-80mm (customizable) |
Maximum buckle pressure: | 400T |
Speed: | 1400R/MIN |
Oil pump displacement: | 15ML/Rad |
Machine weight: | 230KG |
Scale accuracy: | 0.02mm |
Rated pressure: | 25MPa |
Withholding speed: | 3-5 s/time |
Dimensions: | 750*500*1000mm |
Packing a nd Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
