Quick Details
-
Brand Name:
-
Ainuok
-
Voltage:
-
Customized Voltage
-
Power (kW):
-
22kw
-
Weight (KG):
-
110 KG
-
Item:
-
wood pellet mill
-
Name:
-
wood and feed pellet mill
-
Application:
-
Animal Feed/Bio fuels/Sawdust Pellet
-
Usage:
-
making crude fiber materials into pellets
-
model:
-
AKK-300
-
power:
-
22kw
-
output:
-
500-700kg/h
-
Power Supply:
-
diesel engine/gasoline/motor/PTO driven
-
Certification:
-
CE,ISO
-
Package:
-
Wooden Case
Quick Details
-
Pellet Diameter (mm):
-
2.5 - 12
-
Output (kg/h):
-
200 - 300 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ainuok
-
Voltage:
-
Customized Voltage
-
Power (kW):
-
22kw
-
Weight (KG):
-
110 KG
-
Item:
-
wood pellet mill
-
Name:
-
wood and feed pellet mill
-
Application:
-
Animal Feed/Bio fuels/Sawdust Pellet
-
Usage:
-
making crude fiber materials into pellets
-
model:
-
AKK-300
-
power:
-
22kw
-
output:
-
500-700kg/h
-
Power Supply:
-
diesel engine/gasoline/motor/PTO driven
-
Certification:
-
CE,ISO
-
Package:
-
Wooden Case

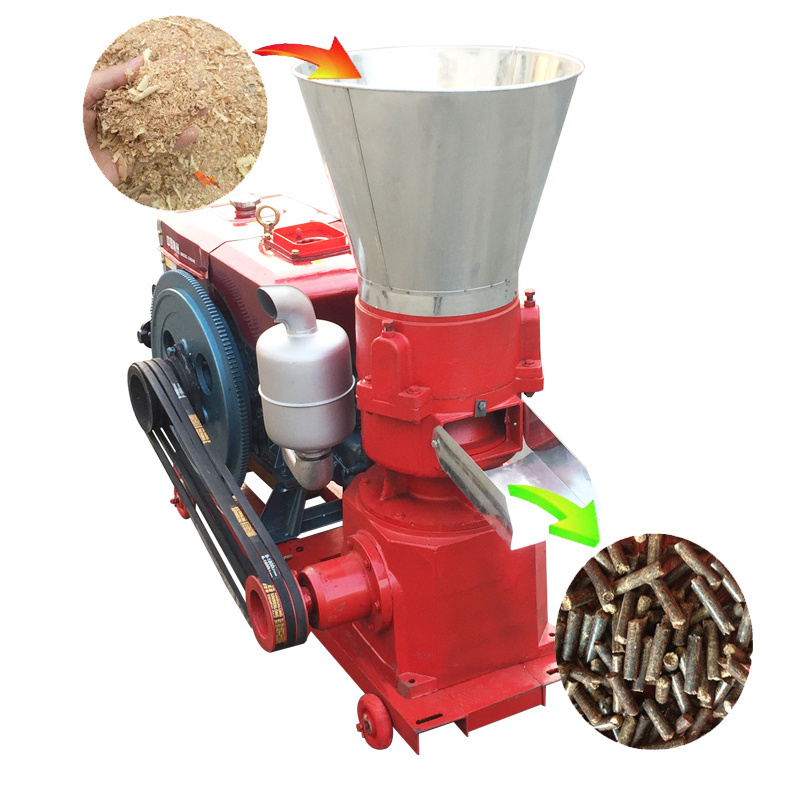

1.high efficiency wood granules making machine sawdust pellet maker feed extruder machine for farming,is mainly used for making crude fiber materials into pellets.can not only make wood pellet for fuel,but also can make feed pellet for animals.
2.Electric engine,Diesel engine,PTO drive and Gasoline engine type are for option. Welcome to contact us for free catalog ,details and price list.
3.Function:
1).Granule/pellet for the fish, chicken, Animal for animal feed.
2).Can be used for Making biomass, sawdust pellet,for bio fuels.
4. F eatures :
1).Powered by both diesel engine ,gasoline and motor,PTO driven
2).Direct Connection of motor shaft and belt drive
3).Can run smoothly with few noises.
4).Pellet Machine can equipped wheel,move around
5).Machine can be used for making wood pellet , also make feed pellet .
4.Raw material:
| 1)sawdust, rice husk,straw,grass,crop stalks etc. biological fertilizer, animal manure |
| 2)Moisture required: 10-15% |
| 3)Size:3-5 mm |
Final Pellet:
The Pellet Diameter is Dia 2mm, 4mm, 6mm, 8mm, 10mm, 12mm, etc,At option.
5.Processing of Pellet Machine
1). Crushing ( Make the raw materials to be sawdust )
2). Conveyor (Delivery material into dryer machine )
3). Dryer Machine ( If the raw materials has too much moisture)
4). Conveyor ( Delivery material into pellet machine )
5). Pelletizing ( Convert sawdust into Pellets )
6). Cooling and packing ( Cooling pellet ,and packed pellet into bag for selling )
6.Data Parameter:
|
Model No. |
Weight(Kg) |
Power(KW) |
Output(/h) |
| AKK-125 | 35 | 3 | 80-100 |
| AKK-150 | 40 | 4 | 90-150 |
| AKK-210 | 110 | 7.5 | 200-300 |
| AKK-230 | 150 | 11 | 350-450 |
| AKK-260 | 190 | 15 | 400-500 |
| AKK-300 | 400 | 22 | 500-700 |
| AKK-360 | 600 | 22 | 700-800 |
| AKK-400 | 750 | 30 | 900-1200 |
|
AKK-400 (DIESEL) |
55HP | ||
| AKK-500 | 800 | 42 | 1200-1600 |
Package: 1set/ctn/plastic wrap/
wooden
box.
Delivery: Within 7 days after order confirmed.
Payment: T/T, Western Union, Paypal, Trade Assurance payments.
