Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Type:
-
rice vegetable sugar super fine powder grinder
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine material:
-
stainless steel 304
-
Usage:
-
chemical, Food Used
-
Production capacity:
-
20-80kg/h
-
Output size:
-
80-600
-
main speed:
-
5800r/min
-
weight:
-
1000kg
-
feeding size:
-
<10mm
Quick Details
-
Machinery Capacity:
-
100-1000kg/h
-
Brand Name:
-
wantong
-
Weight:
-
1000 KG
-
Place of Origin:
-
Jiangsu, China
-
Type:
-
rice vegetable sugar super fine powder grinder
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine material:
-
stainless steel 304
-
Usage:
-
chemical, Food Used
-
Production capacity:
-
20-80kg/h
-
Output size:
-
80-600
-
main speed:
-
5800r/min
-
weight:
-
1000kg
-
feeding size:
-
<10mm

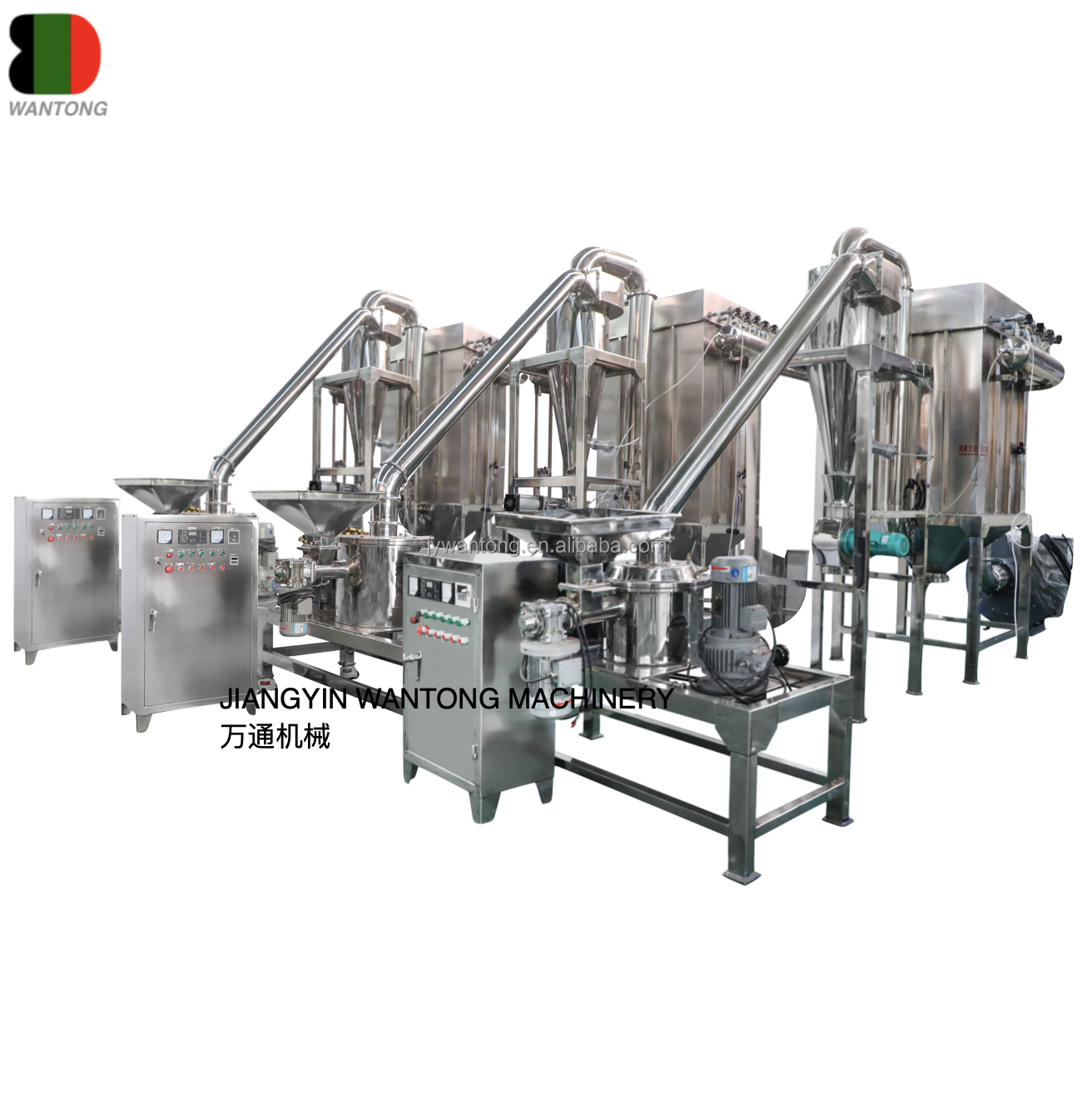

WFJ MHJ spice leaf herbs aromatic powder grinding mill machine processing line for legumes
Main Uses:
The machine made up of main engine, auxility engine and electric-box, featuring winnowing without sieve or mesh, ever granule size, continuous operation, etc. The machine reaches advanced world-level and is widely used for material grinding in chemical and foodstuff industries, etc.
Working Principle:
Materials are transported into smashing mesh via screw conveyor, then crushed by the high-speed revolving razor blade. With the negative pressure, materials will be transported into cyclone separator, ejected by pass-breezing machine. Without the powder float in whole production line the powder float in the sky.
The machine made up of main engine, auxility engine and electric-box, featuring winnowing without sieve or mesh, ever granule size, continuous operation, etc. The machine reaches advanced world-level and is widely used for material grinding in chemical and foodstuff industries, etc.
Working Principle:
Materials are transported into smashing mesh via screw conveyor, then crushed by the high-speed revolving razor blade. With the negative pressure, materials will be transported into cyclone separator, ejected by pass-breezing machine. Without the powder float in whole production line the powder float in the sky.
Technical Parameters:
Model WFJ-15 WFJ-20 WFJ-30 WFJ-60 WFJ-80
Capacity (kg) 20~100 50~200 100~400 200~800 300~1000
Feed size (mm) <10 <10 <12 <12 <12
Output size (mesh) 80-320 (adjustable)
Motor power (kw) 13.37 18.37 42.5 77.5 96
Spindle speed (rpm) 5800 4200 3800 3200 2800
Weight (kg) 850 1000 1300 2500 3000
Overall size(L*W*H)(mm)
4500*1250*2700 6000*1250*2900 7100*1300*3650 8000*2300*4500 8500*2500*4600
The above is our technical data. We can also design and manufacture different varieties upon customer's request.
