Quick Details
-
Mounting Type:
-
Installation hole connection
-
Description:
-

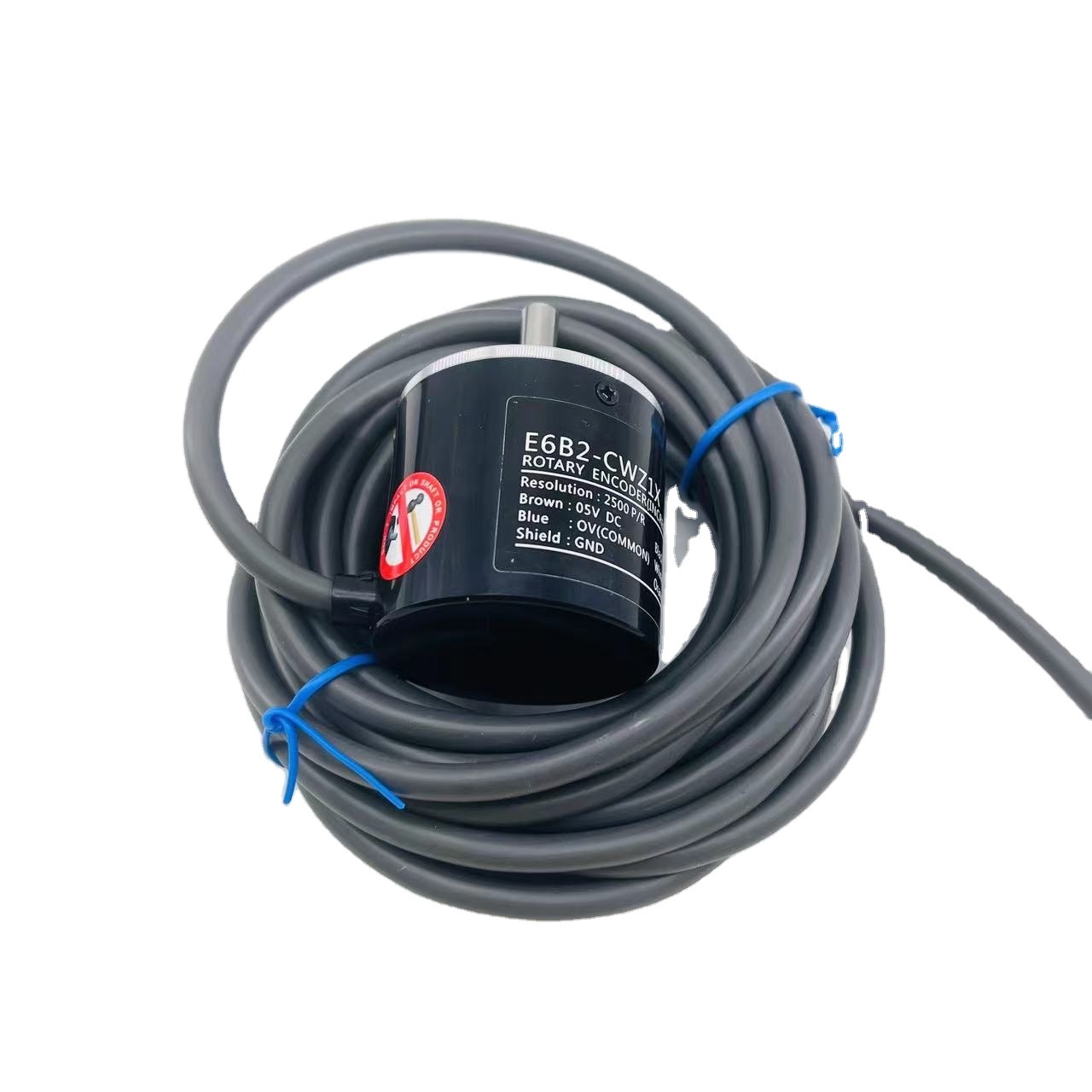

2-M3 deep 8 installation hole, Rotary encoder
-
Model Number:
-
E6B2
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
HUAYUE
-
Theory:
-
Based on photoelectric effect
-
Output:
-
A,B,Z,A-,B-,Z-
-
Weight:
-
0.5kg(gross weight)0.35kg(net weight)
Quick Details
-
Use:
-
Measuring displacement and velocity
-
Series:
-
E6B2
-
Features:
-
encoder with display to speed
-
Mounting Type:
-
Installation hole connection
-
Description:
-
2-M3 deep 8 installation hole, Rotary encoder
-
Model Number:
-
E6B2
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
HUAYUE
-
Theory:
-
Based on photoelectric effect
-
Output:
-
A,B,Z,A-,B-,Z-
-
Weight:
-
0.5kg(gross weight)0.35kg(net weight)
Model Code
|
|
E6B2-CWZ6C
|
E6B2-CWZ1X
|
E6B2-CWZ5G
|
E6B2-CWZ5B
|
||
|
supply voltage
|
DC5V-5%~24V+15%
|
DC5V±5%
|
DC12V-10%~24V+15%
|
DC12V-10%~24V+15%
|
||
|
Consumption current
|
below 80mA
|
below160mA
|
below 100mA
|
|
||
|
Pulse/Resolution
|
10;20;30;40;50;60
100;200;300;360;
400;500;600;720;
800;1000;1024;
1200;1500;1800;
2000.
|
10;20;30;40;
50;60;100;
200;300;360;400;500;600;1000;1024;
1200;1500;
1800;2000.
|
10;20;30;40;50;60;
100;200;300;360;
400;500;600;720;
800;1000;1024;1200;
1500;1800;2000;3600.
|
100;200;360;
500;600;1000;
2000.
|
||
|
Output Phase
|
ABZ
|
ABZA-B-Z-
|
ABZ
|
ABZ
|
||
|
output form
|
NPN
|
Linear driver
|
complementary output
|
PNP
|
||
|
Maximum response frequency
|
100kHZ
|
|
|
50kHZ
|
||
|
Maximum allowable speed
|
6000r/min
|
|
|
|
|||
|
Output phase difference
|
The phase difference between phase A and phase B is 90 ± 45 °
|
|
|
|
|||
|
Starting torque
|
Below 0.98mN · m
|
|
|
|
|||
|
Moment of inertia
|
Below 1X10
-6
kg· m
2
|
|
|
|
|||
|
Shaft loading
|
Radial: 30N Axial: 20N
|
|
|
|
|||
|
Ambient temperature
|
-10 to + 70°C
|
|
|
|
|||
|
Ambient humidity
|
35 to 85%RH
|
|
|
|
|||
Product Introduction
Professional components
Original NMB bearing, pulse stable
Good performance, high rotational speed, and long product life
Excellent wire
Stable current transmission with shielded wires
Stronger anti-interference ability, without causing disturbances
Wiring Instructions
Product drawings
Hot products
Solid shaft encoder, outer diameter 58mm, shaft diameter 8mm
Pulse: 10-50000ppr
Output signals: voltage output, NPN collector open circuit output, PNP output, totem pole output (push pull output), drive output
Working voltage: 5V, 8-24V, 10-30V,12V
Encoder with display meter bracket, wheel display speed or distance
Pulse: 10-20000ppr
Output signals: voltage output, NPN collector open circuit output, PNP output, totem pole output (push pull
output), drive output
output), drive output
Working voltage: 5V, 8-24V, 10-30V,12V
