Quick Details
-
Model Number:
-
DP-FP-2500A
-
Weight (KG):
-
3600
-
Power (kW):
-
5.5
-
Name:
-
3d fence mesh panel welding machine
-
Model:
-
DP-FP-2500A
-
Wire diameter:
-
3-6mm
-
Mesh width:
-
Max.2.5m
-
Mesh Length:
-
Max.3.2m
-
Welding speed:
-
Max.80 times/min
-
Line wire feeding:
-
Pre-straightened&pre-cut
-
Cross wire feeding:
-
Pre-straightened&pre-cut
-
Weight:
-
3.6T
-
Bending way:
-
Manual
Quick Details
-
Wire Diameter (mm):
-
3 - 6 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Rongkuai
-
Model Number:
-
DP-FP-2500A
-
Weight (KG):
-
3600
-
Power (kW):
-
5.5
-
Name:
-
3d fence mesh panel welding machine
-
Model:
-
DP-FP-2500A
-
Wire diameter:
-
3-6mm
-
Mesh width:
-
Max.2.5m
-
Mesh Length:
-
Max.3.2m
-
Welding speed:
-
Max.80 times/min
-
Line wire feeding:
-
Pre-straightened&pre-cut
-
Cross wire feeding:
-
Pre-straightened&pre-cut
-
Weight:
-
3.6T
-
Bending way:
-
Manual

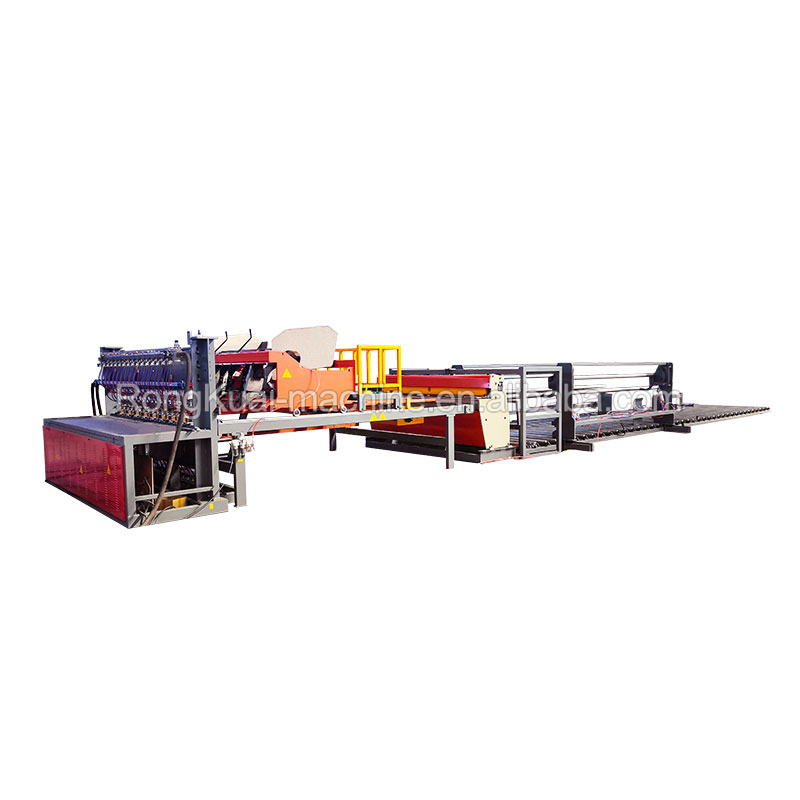

China factory price high-speed automatic production line 3d fence mesh panel welding machine manufacturer for sale
The automatic high-speed 358 clear vu anti climb fence panel wire mesh welding machine adopts European welding technology and many famous brand electric parts, the main motor connects with the main axis direction, and a Panasonic servo motor controls the mesh pulling.
The machine can weld fence panel mesh, 3D fence sheet mesh, Anti-climb/cut mesh, 358 fence panel mesh, etc.
| Model | RKM-FP-3000AN | RKM-FP-3200A+ |
| Wire diameter | 2.5-6mm | 2.5-6mm |
| Line wire space | 50-300mm | 76.2-300mm |
| Crosswire space | Min. 25mm | Min. 12.7mm |
| Mesh width | Max. 2500mm | Max. 3200mm |
| Mesh length | Max. 3200mm | Max. 4000mm |
| Welding electrodes | 48 PCS | 44PCS |
| Welding transformer | 150kva*6pcs | 150kva*11pcs |
| Welding speed | Max. 80-100 times/min | Max. 120 times/min |
| Line wire feeding | Pre-straightened & pre-cut | |
| Cross wire feeding | Pre-straightened & pre-cut | |
| Bending way | Manual | Manual |
| Weight | 4T | 5.4T |
- We can design the machine according to your wire diameter, mesh hole size, and width.
1. Welding Part—Same Design with European Machine
- One SMC air cylinder controls one welding point. guarantees welding quality.
- The upper and lower welding electrodes are water-cooling types, increasing the service life of welding electrodes.
- Upper copper wires connect the upper electrode and the lower electrode. Lower copper plates connect lower electrodes and welding transformers.
- The SMC electromagnetism valves.
- Cast water-cooling welding transformers.
- Separate control technology.
2. Wire Feeding System
- Line wire feeding - Automatic feeding
- Cross wire feeding - Automatic feeding
3. Automatic Mesh Pulling System
- Panasonic (Japan) servo motor 2kw&planetary reducer to control mesh pulling, high precision, immense power.
- The up & down of the pulling a hook is controlled by SMC (Japan) air cylinders.
- PLC adjusts the mesh pulling distance (cross-wire space) on the touch screen.
4. Electric Parts
-
The reliable control system is the electrical system from Panasonic, Schneider, ABB, and Igus.
- Welding parameters can be changed through the touch screen.
5. Mesh Bending Machine
The 3d fence panel is used in the home, garden, yard, playground, industry, agriculture, building, transportation, minefield, cultivation, enclosure fence, decoration, machine protection, etc.
1. Strength Factory Certification
2. After-sales Service
We provide inspection videos , installation videos , manuals , layout drawings , machine testing , online after-sales service , etc.
