Quick Details
-
Brand Name:
-
Original
-
Model Number:
-
FTDI FT232RL FT232 Module
-
Place of Origin:
-
Guangdong, China
-
Shielding:
-
Other
-
Supply Voltage:
-
3.3V/5V
-
Condition:
-
New
-
is_customized:
-
Yes
-
condition:
-
new
Quick Details
-
USB Type:
-
Standard
-
Material:
-
PVC, TPE
-
Connector:
-
USB 2.0 Connector
-
Brand Name:
-
Original
-
Model Number:
-
FTDI FT232RL FT232 Module
-
Place of Origin:
-
Guangdong, China
-
Shielding:
-
Other
-
Supply Voltage:
-
3.3V/5V
-
Condition:
-
New
-
is_customized:
-
Yes
-
condition:
-
new
Specification:

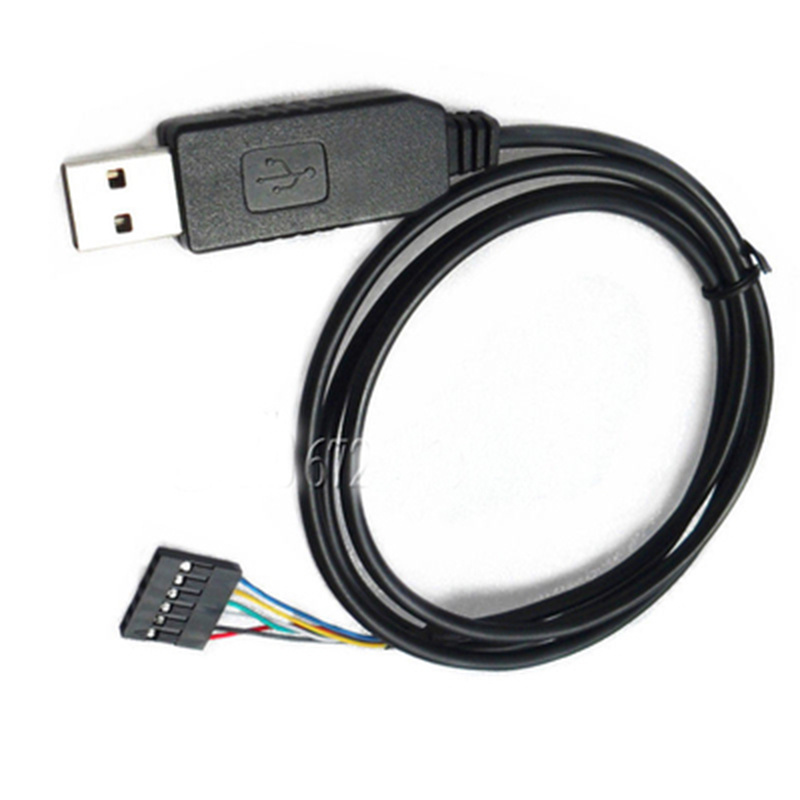

FTDI based USB to TTL Serial Cable are designed using the the standard FT232RL chipset.
The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.
RX and TX OUT
The cables are available with a 6-way SIL, 0.1" connector
TTL levels is 3.3V
The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232RQ USB to Serial
UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect
devices with a TTL level serial interface to USB
Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB
connector end of the cable. The other end of the cable comes with a selection of different connectors supporting various applications .
Cables are FCC, CE, RoHS compliant and are available at TTL levels 3.3V.
Cables are available with either a 6-way SIL,0.1”pitch connector,
(intended for use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended connections
The USB side of the cable is USB powered and USB 2.0 full speed compatible.
Each cable is 1.0m long and supports a data transfer rate up to 1 Mbaud
-
Red wire: 5V
-
Black wire: GND
-
White wire: RXD
-
Green wire: TXD
-
Yellow wire: RTS
-
Blue wire: CTS
Shipping Included:
-
1PCS*6pin FTDI FT232RL USB to Serial adapter module USB TO TTL RS232 Arduino Cable
