Quick Details
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
toyon
-
Model Number:
-
TD/TE120700-H
-
Voltage:
-
110v 220v 48V 24V
-
Bearing Type:
-
Ball
-
Brand:
-
Toyon
-
weight:
-
1830g
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Refrigeration and ventilation
-
Electric Current Type:
-
EC DC
-
Mounting:
-
FREE STANDING
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
toyon
-
Model Number:
-
TD/TE120700-H
-
Voltage:
-
110v 220v 48V 24V
-
Bearing Type:
-
Ball
-
Brand:
-
Toyon
-
weight:
-
1830g
Model TD/TE120700-H

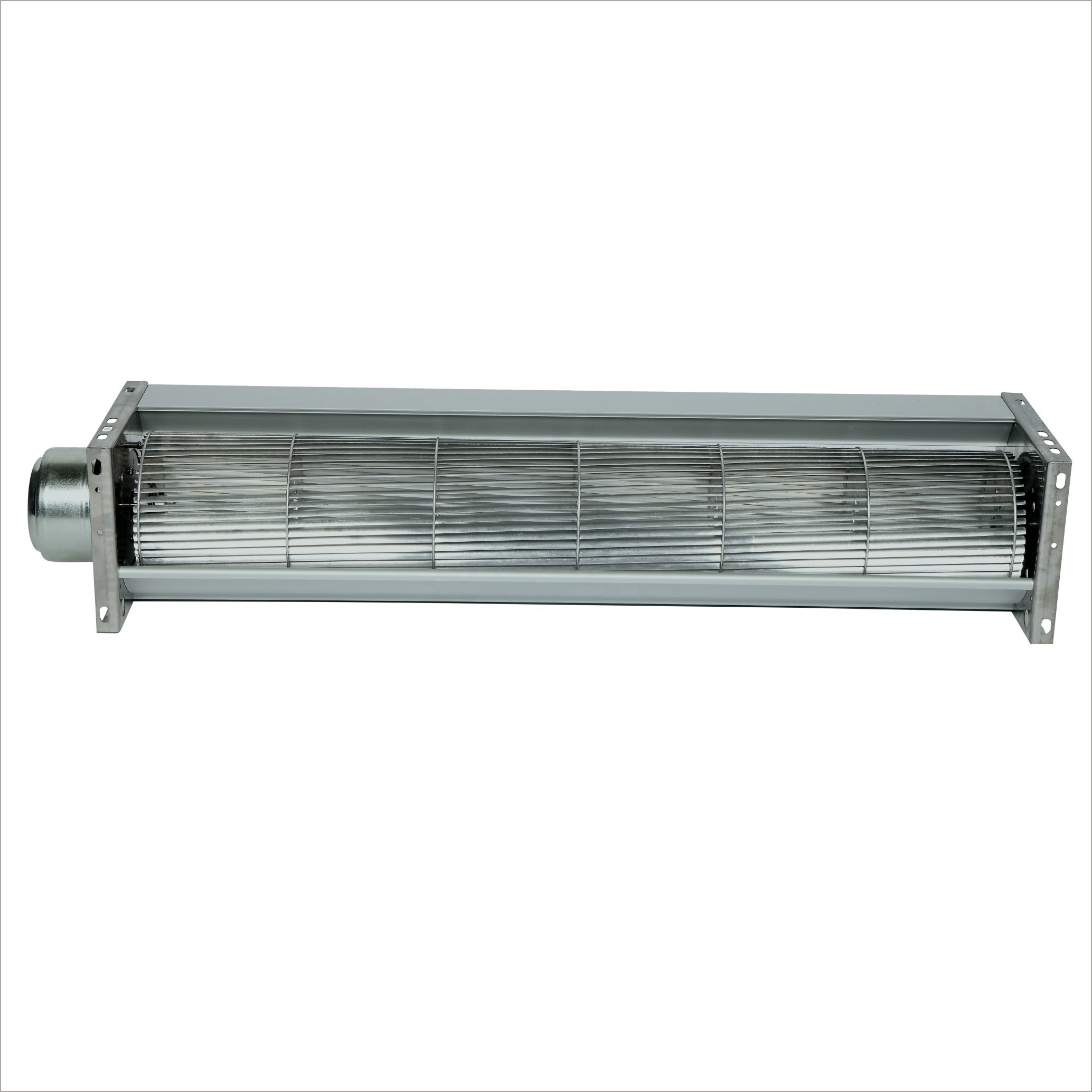

120mm aluminum wheel EC DC cross flow fan
Advantages:
1. 100% pure copper motor, high efficiency
2. Japan NMB ball bearing, Energy saving, Longer motor life
3.OEM, Best solution provider. Professional motor design can realize more silent effection and superior performance.
Product Description
Voltage : 110V 220V 24v 48v
Insuation:Class B
Certifications:UL/CE/UL/CCC
Function options: FG signal; PWM Speed control; RD function; Thermal Control; CW and CCW;
Type of protection: IP42~IP66
Operation Temperature:-20~70 degree
Control input:0~10VDC
Product conforming to standard:EN 60950-1
Interference immunily acc.to EN6100-6-2
Material: PA66 UL-94 V0 / ABS/ Metal Sheet
Fan spec
| Model | Bearing System | Rated Voltage V | Rated voltage(VDC) | Current(A) | Speed(RPM) | Air Flow(M3/H) | Static Pressure(mmH20) | Noise Level(DBA) | Weight(g) |
| TE12070001HB-H | BALL | 110V | 85-130 | 0.8 | 1000 | 1113 | 2.5 | 55 | 1830 |
| TE12070002HB-H | BALL | 220V | 85-265 | 0.4 | 1000 | 1113 | 2.5 | 55 | 1830 |
| TD12070048HB-H | BALL | 48V | 24-57 | 1.0 | 1000 | 1113 | 2.5 | 55 | 1830 |
| TD12070024HB-H | BALL | 24V | 20-28.4 | 1.18 | 1000 | 1113 | 2.5 | 55 | 1830 |
