Quick Details
-
Model Number:
-
L707E
-
Pressure Range:
-
0-20m..200mH2O, others on request
-
Length type:
-
0-50m for the short type/50-200m for the long type
-
Accuracy:
-
≤±0.5%F.S @25℃
-
Output signal:
-
4~20 mA; 0.5~4.5 V Non-Ratio metric; RS485 Modbus RTU
-
Power supply:
-
12~30V DC; 5VDC+10%; 8~30VDC
-
Response time:
-
≤10ms
-
Electronic connection:
-
Fixed cable and water proof IP68
-
Temperature compensation:
-
0°C~50°C (Full temp span 1%F.S. Accuracy)
-
Product Name:
-
silicon pressure level sensor for borehole level measurement
-
Application:
-
Water Oil Air Pressure measurement
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Macsensor
-
Model Number:
-
L707E
-
Pressure Range:
-
0-20m..200mH2O, others on request
-
Length type:
-
0-50m for the short type/50-200m for the long type
-
Accuracy:
-
≤±0.5%F.S @25℃
-
Output signal:
-
4~20 mA; 0.5~4.5 V Non-Ratio metric; RS485 Modbus RTU
-
Power supply:
-
12~30V DC; 5VDC+10%; 8~30VDC
-
Response time:
-
≤10ms
-
Electronic connection:
-
Fixed cable and water proof IP68
-
Temperature compensation:
-
0°C~50°C (Full temp span 1%F.S. Accuracy)
-
Product Name:
-
silicon pressure level sensor for borehole level measurement
-
Application:
-
Water Oil Air Pressure measurement

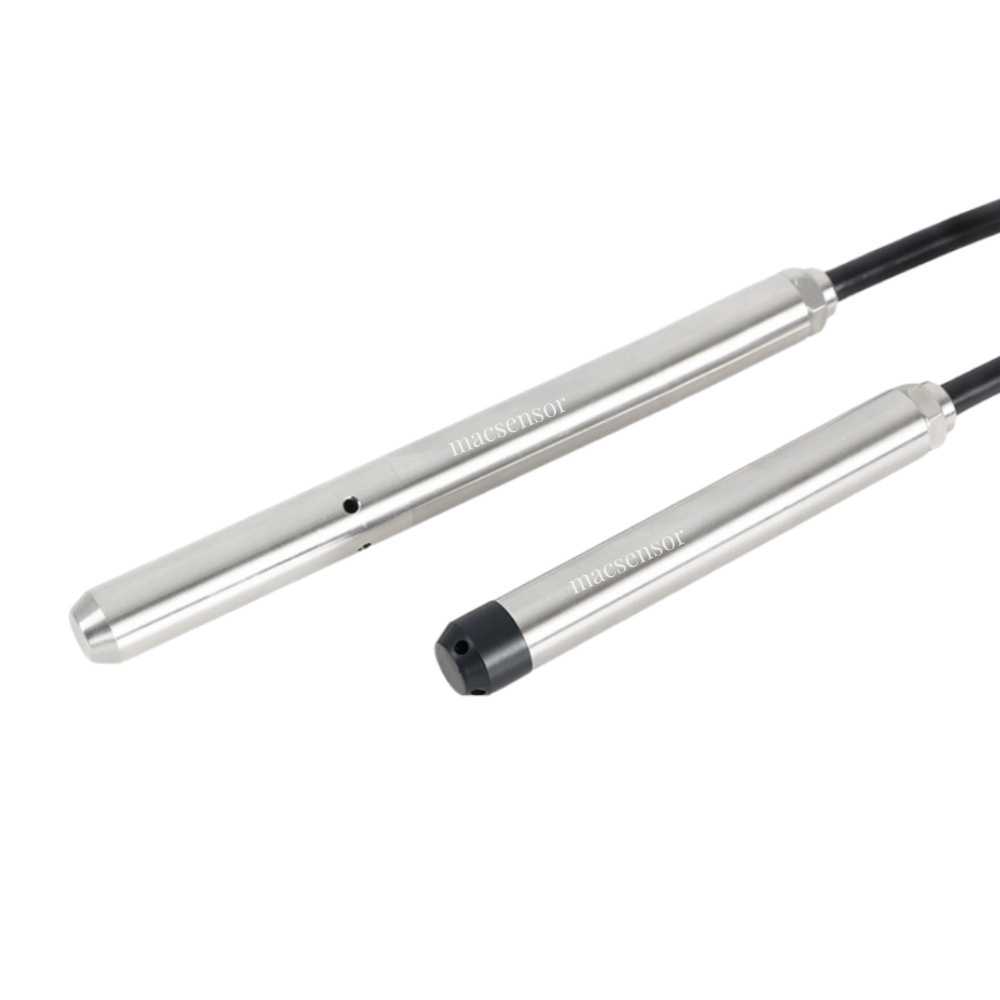

OEM Piezo-resistive silicon pressure level sensor for borehole level measurement
L707E has a 16mm diameter compact size, lightweight and good stability; it can be used for water or liquid measurement and control of medicine, metallurgy, electricity, mining, city water supply and drainage and hydrology, etc.
07E is a fully sealed submersible level transducer/transmitter. It is made by building highly stable and reliable 316L stainless steel diaphragm pressure sensors and a highly accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide the user with easy and convenient application in the local working place. The special cable connects with housing, and can be immersed in the media for a long time. It features lightning protection, surge protection, electrostatic protection, polarity protection and over-voltage protection. With a new anti-frequency conversion DC pump design added, it allows being used in a wider range of complex working conditions.
Product Feature
Accuracy:≤+0.5%F.S
Wide working temperature scope
Advanced digital temperature compensation
High-quality Sputter thin film sensors
1.5 times range standard overload
3 times range burst pressure
IP68 waterproof, it can be submerged in water for more than 10 years
| Model | L707E | |||||
| Pressure Range | 0-20m..200mH2O, others on request | |||||
| 0-50m for the short type/50-200m for the long type | ||||||
| Overload | 150% F.S. | |||||
| Burst Pressure | 300% F.S. | |||||
| Accuracy | ≤±0.5%F.S @25℃ | |||||
| Long Stability | Standard: 0.1%F.S±0.05% | |||||
| Working Temp | -30C~70°C | |||||
| Storage Temp | -40°C~85°C | |||||
| Temperature Compensation | 0°C~50°C (Full temp span 1%F.S. Accuracy) | |||||
| Medium compatible | Compatible with 316L Stainless Steel | |||||
| Electronic Wire | 2-wire | 3-wire | 4-wire | |||
| Output | 4~20 mA | 0.5~4.5 V Non-Ratio metric | RS485 Modbus RTU | |||
| Power Supply | 12~30V DC | 5VDC+10% | 8~30VDC | |||
| Life time | ≥100,000,000 pressure cycles | |||||
| Temp. Drift | ≤1.0%F.S(0-50°C);≤1.5%F.S(-10-0°C and 50-70C) | |||||
| Electronic connection |
Fixed cable and water proof IP68(5 layer grade seal, water proof cover+2 grade
Rectangular ring + 0-ring seal+ sealant+ Encapsulating compound ) |
|||||
| Cable | 3 types of cable optional: | |||||
| Filter | 1. With a stainless steel filter, 2. With a nylon filter . | |||||
| Response time | ≤10ms | |||||
| Pressure Type | Gauge pressure, absolute pressure optional | |||||
| Certificate approving | CE Certificate. | |||||
| EMC Standard |
EN 61326-1:2013; EN 61326-2-3:2013
EN 61000-6-2:2005; EN61000-6-4:2007+A1 |
|||||
How to order sensors?
To recommend a suitable pressure sensor for you, please kindly confirm the following questions before ordering:
1. Measuring range?
2. Signal Output
3. What's the application? Measuring Medium? Water or air or oil or others?
4. Other special requirements?
The price here is just for reference. Each product will be customized based on your project demand , please send an inquiry to get the optimized product solutions and the best price. Please leave your email address so that our sales engineer can offer one-to-one service for you!
