Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leedercnc
-
Voltage:
-
AC220V/380V-50HZ/60HZ
-
Dimension(L*W*H):
-
4000*2200*1900mm
-
Weight (KG):
-
1800
-
Product name:
-
Cnc Router Machine foam engraving machine
-
Working area:
-
1500x3000mm
-
Spindle power:
-
4.5kw/ 6kw / 9 KW
-
Spindle type:
-
Air Cooling Spindle
-
Inverter:
-
Fuling
-
Motor:
-
Servo Motor
-
Control system:
-
Nc-studio/Mach3/DSP Controller
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Table Surface:
-
Aluminum T-slot(Vacuum Table
Quick Details
-
Working Table Size(mm):
-
1500×3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leedercnc
-
Voltage:
-
AC220V/380V-50HZ/60HZ
-
Dimension(L*W*H):
-
4000*2200*1900mm
-
Weight (KG):
-
1800
-
Product name:
-
Cnc Router Machine foam engraving machine
-
Working area:
-
1500x3000mm
-
Spindle power:
-
4.5kw/ 6kw / 9 KW
-
Spindle type:
-
Air Cooling Spindle
-
Inverter:
-
Fuling
-
Motor:
-
Servo Motor
-
Control system:
-
Nc-studio/Mach3/DSP Controller
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Table Surface:
-
Aluminum T-slot(Vacuum Table
Products Description

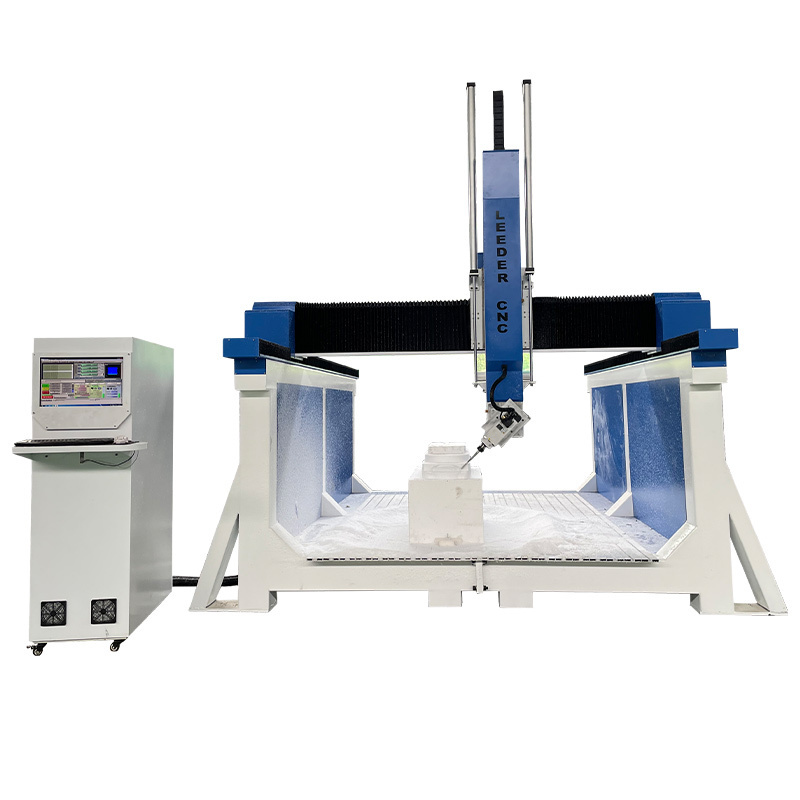

Heavy Structure Table Steel Plate Table 4 Axis 180 Degree Rotary For 3d Model Car Fiberglass Car Boat Milling Machine
Feature
# Adopt industrial heavy-duty structure design, ensure the strength and rigidity of the machine body.
# Split type structure, convenient for machine assemble and transportation.
# Large working area, enough for 4 axis or 5 axis working.
# Adopt Taiwan Hiwin/PMI high precision linear rail, moving smooth and high accuracy.
# High specifications, to ensure machine powerful performance
Application
1.
Woodworking
: wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments,etc;
2. Advertising : billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox
mold, stamp, mould,etc;
3. Die industry : copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc;
4. Decoration :acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
2. Advertising : billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox
mold, stamp, mould,etc;
3. Die industry : copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc;
4. Decoration :acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
Product Paramenters
|
ITEM
|
DESCRIPTION
|
|
Working area
|
1500x3000x500mm,
can customize up to your demands.
|
|
Spindle
|
4.5kw,
optional 3kw/6kw/9kw
|
|
Control system
|
MACH3,
optional NC Studio/ DSP/ LNC/ SYNTEC
|
|
Driving system
|
Servo motor and driver
|
|
Working table
|
T-slot aluminum / Vacuum
|
|
Inverter
|
Fuling
|
|
Transmission system
|
XY-axis rack gear, Z-axis TBI ball screw
|
|
Guide rail
|
Taiwan square HIWIN guide rail
|
|
Limit Switch
|
Japan Omron
|
|
Electrical components
|
France Schneider
|
|
Traveling speed
|
30m/min
|
|
Woerking speed
|
According to material
|
|
Voltage
|
AC220/380V
|
