Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fulree
-
Model Number:
-
Fulree
-
Output Frequency:
-
0-400HZ
-
Output Current:
-
20A MAX
-
Case Material:
-
no case
-
Working Temperature:
-
-40℃~ 80℃
-
Efficiency:
-
95%
-
Warranty:
-
12 Months
-
Certification:
-
CE/RoHS/FCC
-
Product Name:
-
12v to 5v power supply to led panel
-
Name:
-
24v to 5v power supply to led panel
Quick Details
-
Output Power:
-
51 - 100W
-
Input Voltage:
-
12V 24V
-
Output Voltage:
-
5V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fulree
-
Model Number:
-
Fulree
-
Output Frequency:
-
0-400HZ
-
Output Current:
-
20A MAX
-
Case Material:
-
no case
-
Working Temperature:
-
-40℃~ 80℃
-
Efficiency:
-
95%
-
Warranty:
-
12 Months
-
Certification:
-
CE/RoHS/FCC
-
Product Name:
-
12v to 5v power supply to led panel
-
Name:
-
24v to 5v power supply to led panel

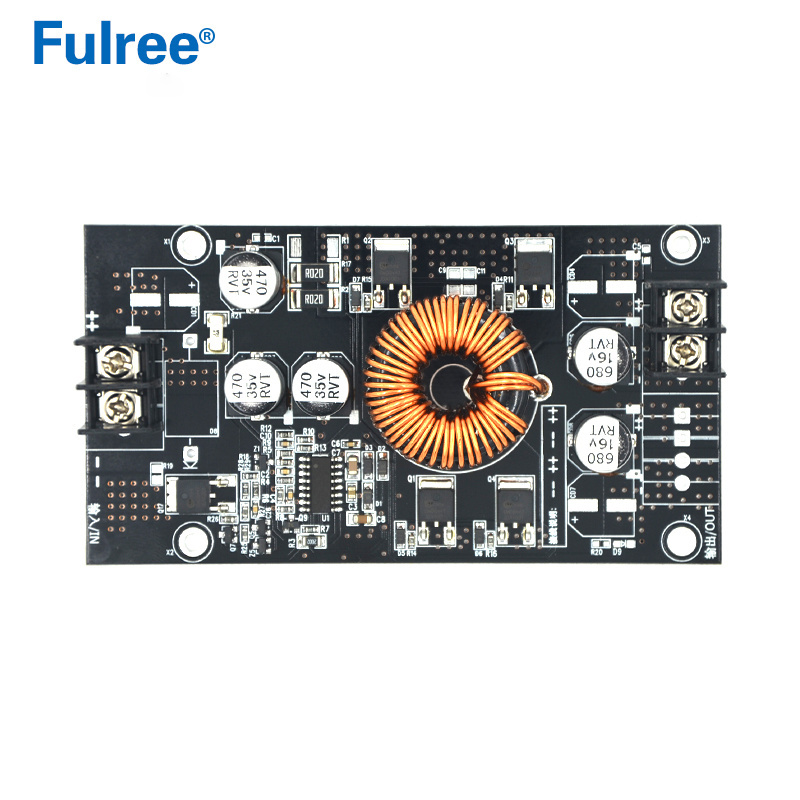

12V/24V to 5V 20A DC DC Step Down Converter Buck PCB Board Module Power Supply for P10 Car LED Screen Display Panel
|
Product Name |
Fulree DC DC Converter 12V24V to 5V 20A 100W |
|
|
Brand |
Fulree |
|
|
Model No. |
12240520 | |
|
Module Properties |
non-isolated buck module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
DC 12V 24V |
|
|
Input Voltage Range |
DC 10-35V |
|
|
Output |
||
|
Output Voltage |
DC 5V |
|
|
Output Current |
20A |
|
|
Output Power |
100W |
|
|
Conversion Efficiency |
95% | |
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 100mV |
|
|
No-load current |
<100mA |
|
|
Working Temperature |
-40~80℃ |
|
|
Waterproof Rating |
No |
|
|
Protection |
Over-current protection |
|
|
Over-voltage protection |
||
|
Overheat protection |
||
|
Short-circuit protection |
||
|
Application |
Car LED Display Screen | |
|
Certification |
CE/RoHS/FCC |
|
|
Case Material |
no case |
|
|
Product Size (L x W x H) |
111*60*17.5mm |
|
|
Product Weight |
90g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |
Option A:input 7.62 screw connector, output 7.62 screw connector
Option B:input 7.62 screw connector, output 7.62 screw connector*2
