Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, Files which Coreldraw Photoshop AutoCad can identify
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ketai
-
Dimension(L*W*H):
-
80*50*30cm
-
Weight (KG):
-
35 KG
-
Product name:
-
CNC laser cutting machine laser cut wood glass engraving machine 3040
-
Laser power:
-
40W / 50W
-
Laser tube:
-
Reci Efr Weiju Yongli
-
Function:
-
Cutting Engraving Non-metal Materials
-
Software:
-
Ruida Trocen CorelDraw AutoCAD Photoshop
-
Cutting Speed:
-
0 - 800mm/s
-
Working table:
-
400*600mm
-
Driving System:
-
Stepper Motor
-
Working voltage:
-
AC110V / 220V /240V.50-60HZ
Quick Details
-
Engraving Area:
-
400*300mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-1000mm/s, 0 - 1000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, Files which Coreldraw Photoshop AutoCad can identify
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ketai
-
Dimension(L*W*H):
-
80*50*30cm
-
Weight (KG):
-
35 KG
-
Product name:
-
CNC laser cutting machine laser cut wood glass engraving machine 3040
-
Laser power:
-
40W / 50W
-
Laser tube:
-
Reci Efr Weiju Yongli
-
Function:
-
Cutting Engraving Non-metal Materials
-
Software:
-
Ruida Trocen CorelDraw AutoCAD Photoshop
-
Cutting Speed:
-
0 - 800mm/s
-
Working table:
-
400*600mm
-
Driving System:
-
Stepper Motor
-
Working voltage:
-
AC110V / 220V /240V.50-60HZ

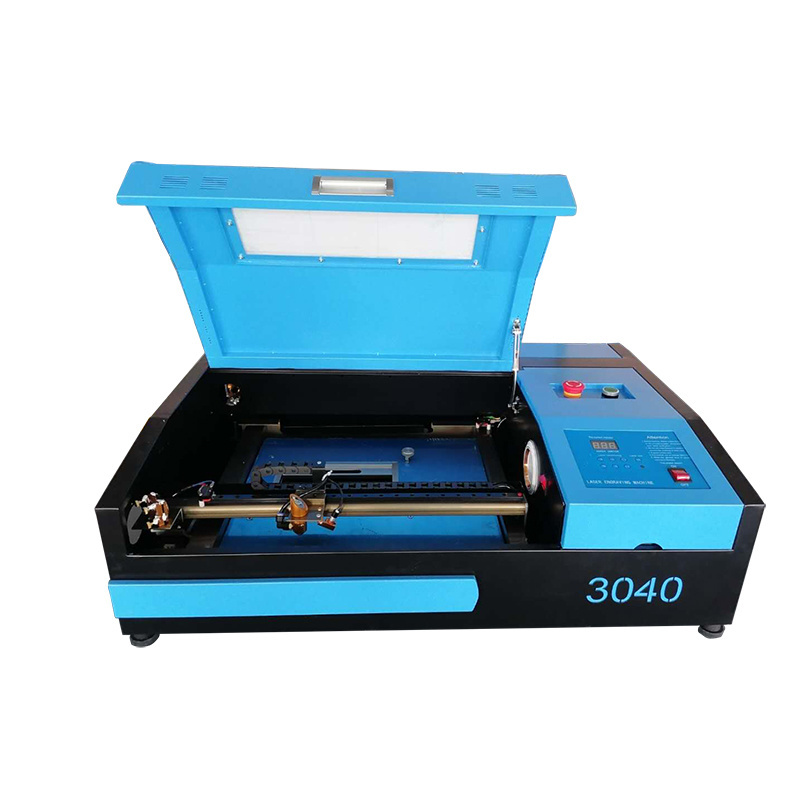

3040 CNC laser cutting machine laser cut wood glass engraving machine
Detailed Images
Control System
Parameters
| Laser power : | 50W (40W optional) |
| Laser type: | Hermetic CO2 glass tube |
| Guide Rail | Square guide rail |
| Laser head | Top laser head with air blow |
| Applicable Materials: | Acrylic,Glass,crystal,wood,leather,cloth,rubber,marble,ceramic,etc. |
| Working area: | 400*300*120 mm |
| Engraving speed: | 0-1000mm/s |
| Cutting speed | 0-800mm/s |
| Worktable: | Motorized lifting Honeycomb / Aluminum knife worktable |
| Locating precision: | <0.01 mm |
| Min shaping character: | Character: 2*2 mm,; letter: 1*1 mm |
| Operating temperature: | 5℃-35℃ |
| Resolution ratio: | <3000 dpi |
| Power supply: | AC220±10 percent 50 HZ 60HZ/AC110±10 percent50 HZ |
| Data transfer interface: | USB |
| USB Ports | 1 |
| System environment: | WINDOWS 7/WINDOWS 8/WINDOWS XP/MAC/Vista |
| Cooling way: | Water cooling and protection system |
| Graphic format supported: | The file which CorelDraw, Photoshop, AutoCAD can identify |
|
(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF, EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX). |
|
| USER MENU | Full English. |
| Protection System | Yes |
| Quality Guarantee | 2 year , quick wear parts 6 months |
| Dimensions(machine) | 80*50*30cm |
| Dimensions(package) | 90*60*40cm |
| Net/Gross Weight | 35 / 57 KG |
| Spare parts include | Software,USER MENU CD,Power cables, USB cables, Encrypted Dog,Water Pipe,Smoke Vent-pipe,Air Blow Pipe ,exhaust fan,air pump,water pump,Tools bag |
Sample Photos
