Quick Details
-
Alloy:
-
8011-O
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JEREL
-
Model Number:
-
JR-004
-
Product:
-
Pharmaceutical Strip aluminum foil AL30/PE30-40
-
Structure:
-
OP/ALU/PE
-
Width::
-
70-600mm
-
Application::
-
Pharmaceutical packaging
-
Certificate::
-
ISO9001 ,ISO14001
-
Thickness::
-
0.075-.085mm
-
Length:
-
approx 280meter/roll
-
Packaging::
-
Sea worthy packaging
-
Core ID:
-
76mm
-
Reel OD:
-
240mm
Quick Details
-
Use:
-
Pharmaceutical packaging
-
Type:
-
Roll
-
Thickness:
-
65-100micron
-
Alloy:
-
8011-O
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JEREL
-
Model Number:
-
JR-004
-
Product:
-
Pharmaceutical Strip aluminum foil AL30/PE30-40
-
Structure:
-
OP/ALU/PE
-
Width::
-
70-600mm
-
Application::
-
Pharmaceutical packaging
-
Certificate::
-
ISO9001 ,ISO14001
-
Thickness::
-
0.075-.085mm
-
Length:
-
approx 280meter/roll
-
Packaging::
-
Sea worthy packaging
-
Core ID:
-
76mm
-
Reel OD:
-
240mm
Products Description
PRITED STRIP ALUMINUM FOIL

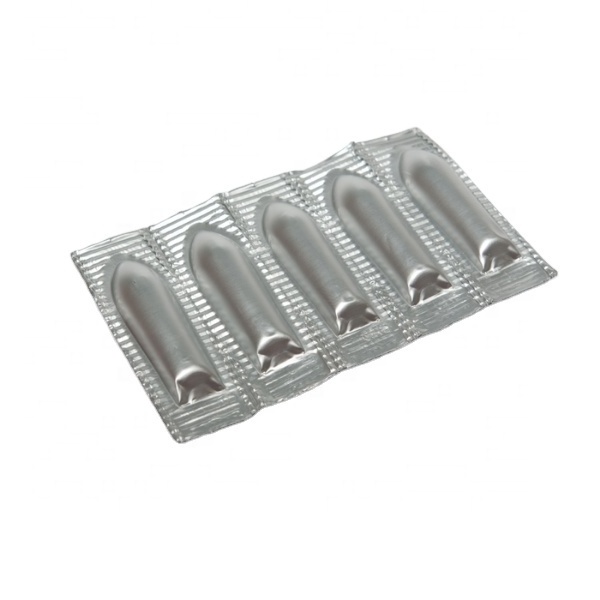

Strip aluminum foil, also called alu/pe composited foil, can resist vapor, oxygen and UV rays with good performance of aroma barrier.Widely applied in suppository packaging.
Pharmaceutical PET/AL/PE strip foil aluminum foil medical packaging
STRIP FOIL SPECIFICATION AND PACKING
Product Name
Strip Foil
Alloy 8021 O
Width ≤630mm
Thickness 60-90㎛
Construction alu30㎛/PE30-50㎛
ID 76mm/152mm(3 inches/6 inches)
ED 240mm
Length 400-600m/roll
Weight 114g/㎡(65㎛),20kg/roll(250mm width)
Packing PE film/Foam gasket/plastic plug/carton/pallet
Container Load 20-25 tons in 20 GP container
Alloy 8021 O
Width ≤630mm
Thickness 60-90㎛
Construction alu30㎛/PE30-50㎛
ID 76mm/152mm(3 inches/6 inches)
ED 240mm
Length 400-600m/roll
Weight 114g/㎡(65㎛),20kg/roll(250mm width)
Packing PE film/Foam gasket/plastic plug/carton/pallet
Container Load 20-25 tons in 20 GP container
STRIP FOIL FEATURES
ALU/PE: ALU sealing barrier, PE for heat sealing
Product Performance High barrier, easy to heat seal
Water Vapor Transmission Rate: the test data is less than 0.5g/㎡24h
Gas Transmission Rate: the test data is less than 0.05cm3/㎡24H 0.1MPa
Strip foil can absolutely resist vapor, oxygen and UV rays with good performance of aroma barrier.
Each blister is a single protection unit, no effect to barrier after opening first cavity. Strip foil is suitable to pack drugs
that easy to be affected in wet regions and tropics. Mostly applicable for suppository, tablets and capsules size from 3-4#.
Product Performance High barrier, easy to heat seal
Water Vapor Transmission Rate: the test data is less than 0.5g/㎡24h
Gas Transmission Rate: the test data is less than 0.05cm3/㎡24H 0.1MPa
Strip foil can absolutely resist vapor, oxygen and UV rays with good performance of aroma barrier.
Each blister is a single protection unit, no effect to barrier after opening first cavity. Strip foil is suitable to pack drugs
that easy to be affected in wet regions and tropics. Mostly applicable for suppository, tablets and capsules size from 3-4#.
|
Structure
|
●Alu30/PE30
●Alu30/PE40 ●Alu30/PE50 |
|
Specification
|
Width: less than 630m
Length : upon on client's requirement. Thickness: 75-85micron Inner core: 76mm Outer core:240mm or upon on client’s requirement Treatment: composite Type: roll Temper: Soft Alloy:8011 |
|
Feature
|
●With Good ductility, Suitable for double 0 to 3 capsules and small and dense tablet packing.
●With Good adhesiveness, 2 layers of high adhesion strength, machinery use or after a period of time not stratified. ●With good sealing property, without sand hole or pinhole, it will not frequently detect alarm in infrared online device ●Wider practicability, low speed and high speed machine can be used. |
|
Application
|
Pharmaceutical packaging for pills, tablets, powder, suppositories, capsules and outside covering, instead of PVC or PVC/PVDC or PTP blister use.
|
|
MOQ
|
200kg for each kind of product
|
|
Payment
|
T/T, L/C at sight, DP at sight
|
Our Company
STRIP ALUMINUM FOIL FROM YANGZHOU JEREL PHARMACEUTICAL NEW MATERIAL COMPANY.
Yangzhou Jerel Pharmaceutical New Material Co., Ltd. is a manufacturing enterprise specialized in drug packaging material production and development.
80 percent of our products are exported to all over the world, including South America, West Europe, the Middle East, Southeast Asia, South Asia, and Africa and so on. Our major customers consist of some international well-known enterprise like Pfizer, Sanofi, Novartis, Sami, Highnoon and so on.
We have passed several certificates such as ISO9001,ISO14001, DMF NO.27426 and DMF of China.
It is the professional technical specialists and quick-reaction sales team that guarantee the high-quality products, competitive price and first-rate service Jerel provide to our customers.
Jerel, established in 2007, has become a new promising company in the field of pharmaceutical packaging in China.
Main products are cold forming aluminum foil, PTP aluminum foil, strip aluminum foil and tropical aluminum foil.
Main products are cold forming aluminum foil, PTP aluminum foil, strip aluminum foil and tropical aluminum foil.
80 percent of our products are exported to all over the world, including South America, West Europe, the Middle East, Southeast Asia, South Asia, and Africa and so on. Our major customers consist of some international well-known enterprise like Pfizer, Sanofi, Novartis, Sami, Highnoon and so on.
We have passed several certificates such as ISO9001,ISO14001, DMF NO.27426 and DMF of China.
It is the professional technical specialists and quick-reaction sales team that guarantee the high-quality products, competitive price and first-rate service Jerel provide to our customers.
Our customers
Recommend Products
JEREL provide a variety of primary packing material for customer to choose, including:
Cold forming alu alu foil (OPA/ALU/PVC)
Blister aluminum foil (OP/ALU/HSL, OP/ALU/VC)
Strip aluminum foil (ALU/PE foil)
Tropical aluminum foil (OPA/ALU/VC)
PVC Rigid Film
PVC PVDC Rigid Film
PVC PE film
