Quick Details
-
Brand Name:
-
MSL
-
Model Number:
-
MSLCTX10
-
Shelf Life:
-
2years
-
Product name:
-
ct scan machine
-
Tiltangulation Range::
-
±30°
-
Sampling Rate::
-
1800 view/ cycle
-
Detector Type::
-
GOS ceramic solid detector
-
Detector Row::
-
24
-
Detector Thickness Per Row::
-
0.55mm
-
Aperture Size::
-
715mm
-
Scanning Collimation::
-
2x1.1mm;8x0.55mm;16x0.55mm;16x1.1m m
-
Min Scan Time (s/360°)::
-
0.72s
-
Voltage:
-
Voltage 380VAC±10%
Quick Details
-
Warranty:
-
2 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MSL
-
Model Number:
-
MSLCTX10
-
Shelf Life:
-
2years
-
Product name:
-
ct scan machine
-
Tiltangulation Range::
-
±30°
-
Sampling Rate::
-
1800 view/ cycle
-
Detector Type::
-
GOS ceramic solid detector
-
Detector Row::
-
24
-
Detector Thickness Per Row::
-
0.55mm
-
Aperture Size::
-
715mm
-
Scanning Collimation::
-
2x1.1mm;8x0.55mm;16x0.55mm;16x1.1m m
-
Min Scan Time (s/360°)::
-
0.72s
-
Voltage:
-
Voltage 380VAC±10%
Product Description

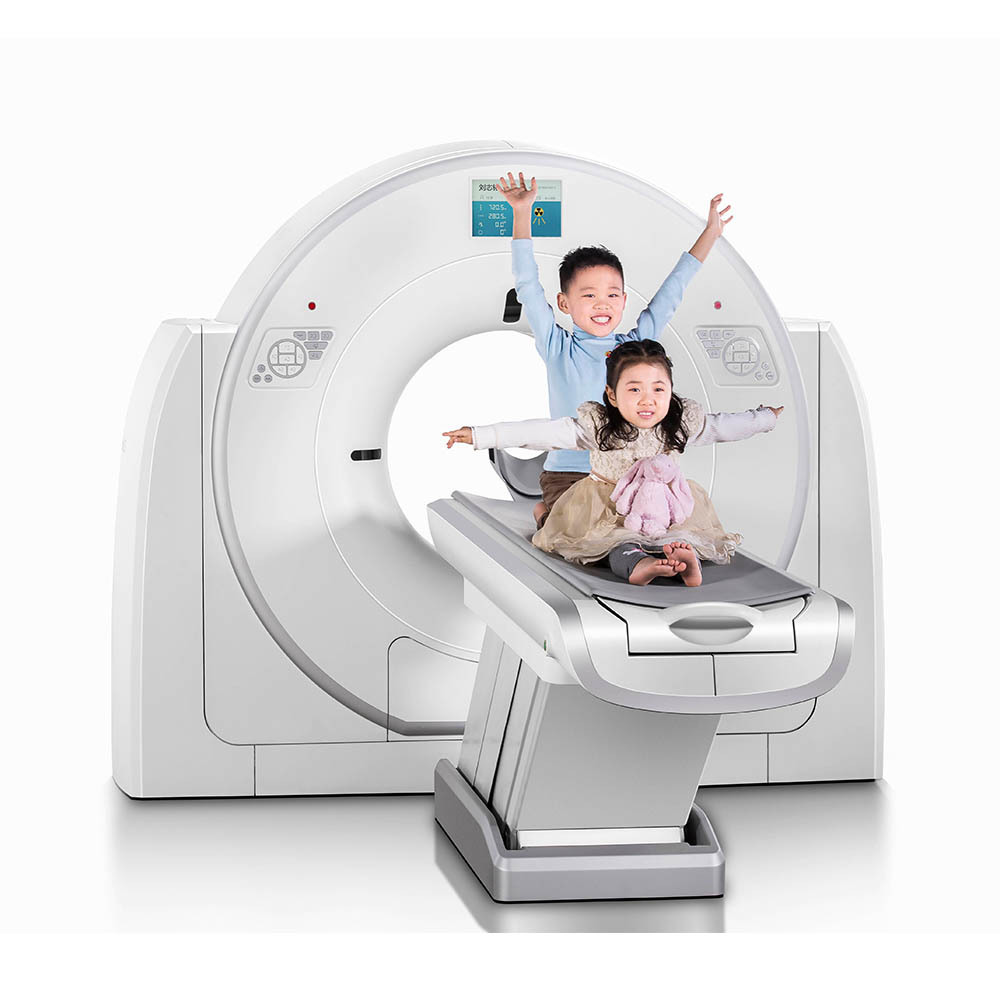

Hospital Radiology Computed Tomography Equipment Medical 32 Slice CT Scan Machine Price
CT Scanner 32-slice has been installed successfully in Zimbabwe &Senegal
MSLCTX10 CT system is completely developed by
Campo Imaging
.
It is the first CT product of Campo Image. P-Axial is a patent of MSLXTX10 CT system. It can obtain the
thinnest CT images in the 0.275 mm
and has obvious advantages in the application of inner ear imaging and pulmonary nodule detection.
32-slice dual energy imaging extended the application of CT dual energy imaging.
MSLCTX10 CT system provides high quality images and stable performance which can help hospitals to achieve comprehensive accurate diagnosis, and it will redefine the new standards of 32-slice CT imaging.
Product Details
|
Hospital Computed CT scan machine 32-slice System Dual-slice For whole-body tomography
|
|
|
|
Slip ring
|
Low-voltage slip ring
|
|
|
Aperture size
|
715mm
|
|
|
Tiltangulation range
|
±30°
|
|
|
Laser Positioning System
|
Provided, provide sagittal, coronal and internal and external cross-sectional positioning lines
|
|
|
Scanning Collimation
|
2x1.1mm; 8x0.55mm; 16x0.55mm; 16x1.1mm
|
|
|
Sampling rate
|
1800view/cycle
|
|
|
Min scan time (s/360°)
|
0.72s
|
|
|
Max FOV
|
500mm
|
|
|
Data transmission mode
|
Digital transmission
|
|
|
Cooling-down method
|
Air cooling heat dissipation
|
|
|
Detector type
|
GOS ceramic solid detector
|
|
|
Detector number
|
888x24
|
|
|
Detector Row
|
24
|
|
|
Detector channel per row
|
888
|
|
|
Detector thickness per row
|
0.55mm
|
|
|
X-ray System
|
|
|
|
*3.1 Focal Point
|
Bifocus
|
|
|
3.2 Focal Spot Size
|
0.7mmx0.8mm; 1.2mmx1.4mm
|
|
|
*3.3 Heat Storage Capacity
|
3.5 MHu
|
|
|
3.4 Max Anode Cooling Rate
|
8750W (12250 HU/sec)
|
|
|
3.5 Tube Life
|
100000 second exposure
|
|
|
3.6 Max Output of Tube Voltage
|
140kV
|
|
|
*3.7 Min Output of Tube Voltage
|
60kV
|
|
|
3.8 Output Voltage
|
60kV, 70kV, 80kV, 100kV, 120kV, 140kV
|
|
|
3.9 Max Output of Tube Current
|
350mA
|
|
|
*3.10 Min Output of Tube Current
|
10mA
|
|
|
*3.11 Max Power
|
42kW
|
|
|
3.12 Max Continuous Exposure Time
|
100s
|
|
|
4 Scanner Table
|
|
|
|
4.1 Horizontal Movement Range
|
0 ~ 1725mm
|
|
|
4.2 Max Scan Range
|
1650mm
|
|
|
*4.3 Max Horizontal Speed Range
|
300mm/s
|
|
|
4.4 Repetitive Positioning Accuracy
|
±0.25mm
|
|
|
*4.7 Max Load Capacity
|
205kg
|
|
|
Power Supply
|
|
|
|
Parameter
|
Condition
|
|
|
Voltage
|
380VAC±10%;
|
|
|
Frequency
|
50Hz±1Hz;
|
|
|
Power
|
≥55KVA;
|
|
