- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
0.8
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
660X570X450mm
-
Power (kW):
-
0.8
-
Weight (KG):
-
36
-
After-sales Service Provided:
-
Online support
-
Rack material:
-
6061 and 6063 Hard aluminum alloy
-
Engraving area:
-
400x300mm
-
Z-Axis Stroke:
-
60mm, Engraving depth depends on the length of the tool edge
-
Repeat positioning Accuracy:
-
≤0.03mm
-
Certification:
-
CE
-
Type of screw:
-
Ball screw
-
Spindle Motor:
-
NEW 0.8KW VFD water cooling spindle
-
Software Compatability:
-
Mach3
-
Engraving speed:
-
300-3000mm/min
Quick Details
-
Working Table Size(mm):
-
400x300
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
300 - 3000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
0.8
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
660X570X450mm
-
Power (kW):
-
0.8
-
Weight (KG):
-
36
-
After-sales Service Provided:
-
Online support
-
Rack material:
-
6061 and 6063 Hard aluminum alloy
-
Engraving area:
-
400x300mm
-
Z-Axis Stroke:
-
60mm, Engraving depth depends on the length of the tool edge
-
Repeat positioning Accuracy:
-
≤0.03mm
-
Certification:
-
CE
-
Type of screw:
-
Ball screw
-
Spindle Motor:
-
NEW 0.8KW VFD water cooling spindle
-
Software Compatability:
-
Mach3
-
Engraving speed:
-
300-3000mm/min

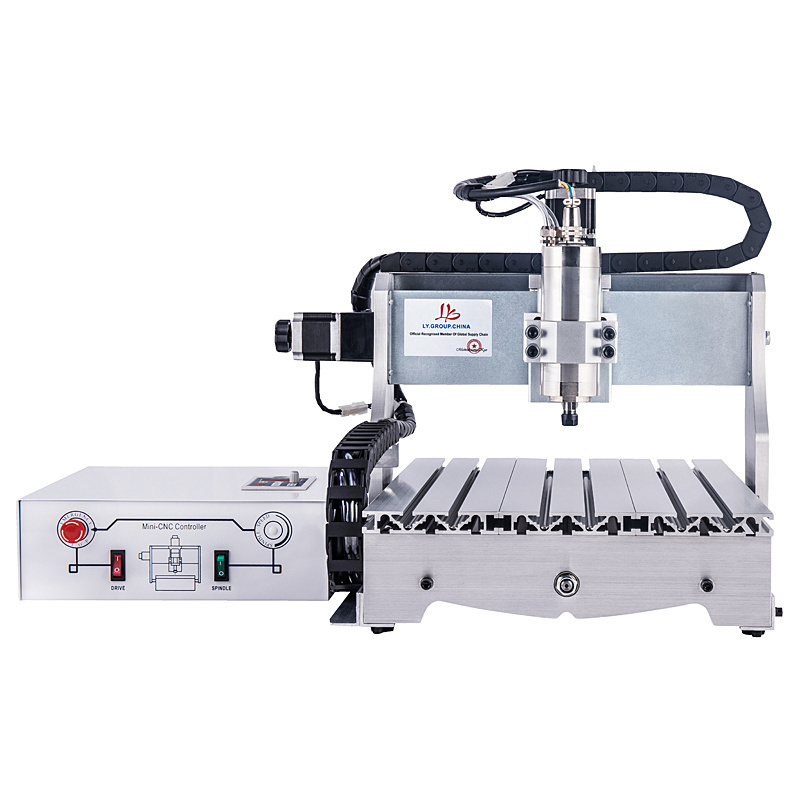

Best 4030 800W USB Port CNC Router Machine 3d 3 Axis Wood Carving Cutting Price for Mdf Door Kitchen Cabinet Furniture Making
Model and Technical Parameters
|
MODEL |
4030Z-S800 |
|||
|
Attribute |
LPT 3axis |
LPT 4axis |
USB 3axis |
USB 4axis |
|
Axis |
3axis |
4axis |
3axis |
4axis |
|
Interface |
LPT port |
LPT port |
USB port |
USB Port |
|
Limit switch |
No |
No |
No |
No |
|
Toolauto-checking |
No |
No |
No |
No |
|
Spindle Motor: |
800W |
800W |
800W |
800W |
|
Type of screw |
1605 Ball screw |
1605 Ball screw |
1605 Ball screw |
1605 Ball screw |
|
Weigh |
36KG |
40KG |
37KG |
41KG |
|
Machine Dimensions: |
660X570X450mm |
|||
|
Rack material: |
6061 and 6063 Hard aluminum alloy
|
|||
|
Engraving area: |
400X300mm |
|||
|
Z-Axis Stroke: |
60mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
≤60mm |
|||
|
Rail type: |
Chromeplate shaft+Linear Bearings,Surface hardening 61HRC |
|||
|
Spindle motor: |
NEW 0.8KW VFD water cooling spindle |
|||
|
Collet type: |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive: |
two-phase hybrid stepping motor 3A/PHASE,150N.cm, 8 segments drive. |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
≤0.03mm |
|||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||
|
Rotation Axis (4 th Axis) Description: |
Chuck Size: 50mm self-centering chuck Center height: H = 51mm Clamping diameter: 50mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 4:1 Stepper motor:NEW 57 type / 3A Stepper Drive: T65-axis drive Positioning accuracy: 0.075 ° Weight: 4kg |
|||
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Sale a and after-sale Service:
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free , 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
