Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Henry
-
Voltage:
-
380V/220v 50HZ(adjustable)
-
Dimension(L*W*H):
-
1580*1100*1800mm
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
1300 kg
-
Raw material:
-
Cement Sand Concrete
-
Color:
-
Customer's Demand
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Model:
-
QT4-40B
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 5760 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Henry
-
Voltage:
-
380V/220v 50HZ(adjustable)
-
Dimension(L*W*H):
-
1580*1100*1800mm
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
1300 kg
-
Raw material:
-
Cement Sand Concrete
-
Color:
-
Customer's Demand
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Model:
-
QT4-40B
Product Description:

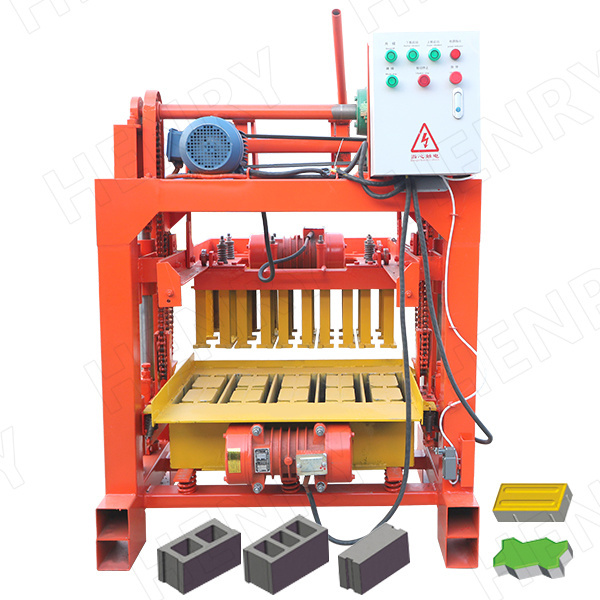

This block machine is a small fixed brick making machine with simple structure and reasonable design. A durable JZQ reducer is used on the top of the machine to take care of the lifting of the mold box. The indenter adopts a simple and practical hook design for easy operation. The vibration platform is welded by Q345 steel plate, and the connection part with the main engine is designed with rubber column, which has a good cushioning effect. The whole machine is equipped with 3 vibrators, which can provide strong excitation force, the brick forming speed is fast, and the compactness is good. The mold is welded with Q345 steel, which can be directly replaced to produce different brick types.
This block machine is a small fixed brick making machine with simple structure and reasonable design. A durable JZQ reducer is used on the top of the machine to take care of the lifting of the mold box. The indenter adopts a simple and practical hook design for easy operation. The vibration platform is welded by Q345 steel plate, and the connection part with the main engine is designed with rubber column, which has a good cushioning effect. The whole machine is equipped with 3 vibrators, which can provide strong excitation force, the brick forming speed is fast, and the compactness is good. The mold is welded with Q345 steel, which can be directly replaced to produce different brick types.
|
Specification Parameters
|
|
|
|
Over size
|
1580*1100*1800mm
|
|
|
Shaping cycle
|
40-45 seconds
|
|
|
Speed
|
2800 rpm
|
|
|
Voltage
|
220V/380V/(adjustable)
|
|
|
Upper vibrator
|
2.2KW
|
|
|
Nether vibrator
|
4.4KW
|
|
|
Total weight
|
1300KGS
|
|
