Factory price commercial pulverizer onion powder superfine grinding machine pumpkin powder ultra fine grinder

Factory price commercial pulverizer onion powder superfine grinding machine pumpkin powder ultra fine grinder

FOB Reference Price: Get Latest Price

≥1 Sets

US $12000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power (kW):: 13.5

Range of Spindle Speed(r.p.m):: 4000 - 4500 r.p.m

Place of Origin:: Liaoning, China

Brand Name:: WANDA

Voltage:: 380V (customizable)

Dimension(L*W*H):: 4200*1200*2800mm

Weight (KG):: 1000 KG

Marketing Type:: New Product 2023

Product name:: Fine Powder Grinding Machine

Function:: Powder Flour Grinding

Machine Type:: Grinder Mill

Feature:: Easy Operation

Item:: Superfine Grinding Machine

Keyword:: Fine Grinder

Usage:: Powder Milling

Key words:: Powder Crusher Grinding Machine

After Warranty Service:: 1 Year

Quick Details

Output (kg/h):: 10 - 1000 kg/h

Feeding Size (mm):: 1 - 15 mm

Output Size (mesh):: 80 - 450 mesh

Power (kW):: 13.5

Range of Spindle Speed(r.p.m):: 4000 - 4500 r.p.m

Place of Origin:: Liaoning, China

Brand Name:: WANDA

Voltage:: 380V (customizable)

Dimension(L*W*H):: 4200*1200*2800mm

Weight (KG):: 1000 KG

Marketing Type:: New Product 2023

Product name:: Fine Powder Grinding Machine

Function:: Powder Flour Grinding

Machine Type:: Grinder Mill

Feature:: Easy Operation

Item:: Superfine Grinding Machine

Keyword:: Fine Grinder

Usage:: Powder Milling

Key words:: Powder Crusher Grinding Machine

After Warranty Service:: 1 Year

Product Overview

Factory price commercial pulverizer onion powder superfine grinding machine pumpkin powder ultra fine grinder

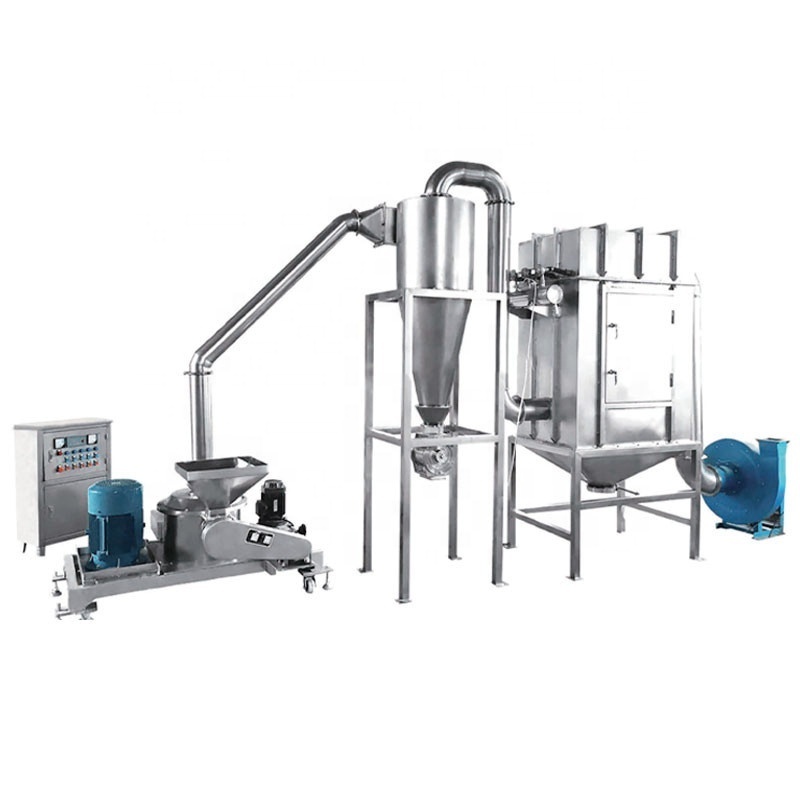

WFJ series superfine grinder is composed of main machine, auxiliary machine and electric control. It has compact design, reasonable structure, air selection type, no screen and no net. The machine is equipped with grading mechanism, which can make crushing and grading complete at one time. The negative pressure transport makes the heat generated in the chamber discharged continuously during the crushing operation, so it is also suitable for the crushing of heat-sensitive materials.

FEATURES AT A GLANCE

High Speed

Continuous Run

Wide Application

Air Selection Type

Reasonable Structure

Adjustable powder size

Hierarchy Configuration

Grinding main machine

Crushing cavity

Dust collectors

1. The machine is suitable for a wide range, continuous production process, discharging particle size adjustable.

2. Compact design, reasonable structure, with wind selection type, no screen. The machine is equipped with grading structure, which can make crushing and grading complete at one time.

Working Principle

The material enters the crushing chamber from the material gate through the screw conveyor, and is sheared and crushed by the high-speed rotating blade. The material is transported into the cyclone separator by means of negative pressure air transportation. Filtration and recycling, no dust flying in the production process, and can improve the utilization rate of materials and reduce enterprise costs.

PRODUCT SPECIFICATIONS

* Occupied area will be different because of different layout design according to customer's site.

APPLICATION SCOPE

Suitable for chemical products, food, cosmetics, dyes, resins, shells and other materials crushing and grading.

Materials that can be handled include: sugar, granulated sugar, salt, rice, corn, starch, oats, flour, soybeans, peas, lentils, mung beans, spices, spices, sweeteners, dried fruit, nuts, potato chips, crushed bread, cocoa powder, potato powder, coffee, milk powder, onion, dehydrated vegetables, lotus seeds, glucose, oat husk. Crushing and grading of fruit shell, ginger, Chinese prickly ash, pepper, pepper, oilwheat, soybean, star anise, cinnamon and other materials, the machine has reached the international advanced level. It is a new generation of crushing equipment with grinding, dust collecting and continuous discharging.
