Quick Details
-
Voltage:
-
380v or as customer's demand
-
Power:
-
depend on machine model and size
-
Dimension(L*W*H):
-
Depend on machine model and type
-
Weight:
-
Depend machine model and type on
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
-
Output Paper:
-
toilet paper, napkin paper, jumbo roll, facial tissue paper
-
Material of pulping:
-
rice straw, waste paper, virgin, wooden pulp
-
Paper width:
-
787-4200 mm
-
Material of Machine:
-
stainless steel,carbon steel or as customer's demand
-
Drive type:
-
Electric
-
Basis Weight:
-
13-30gsm
-
Capacity:
-
4t/d, 10t/d, or as customer's requirement
-
Working Speed:
-
150-180m/min or as customer's requirement
-
Certification:
-
ISO9001;SGS;CE;National patent
Quick Details
-
Production Capacity:
-
95%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINLONG
-
Voltage:
-
380v or as customer's demand
-
Power:
-
depend on machine model and size
-
Dimension(L*W*H):
-
Depend on machine model and type
-
Weight:
-
Depend machine model and type on
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
-
Output Paper:
-
toilet paper, napkin paper, jumbo roll, facial tissue paper
-
Material of pulping:
-
rice straw, waste paper, virgin, wooden pulp
-
Paper width:
-
787-4200 mm
-
Material of Machine:
-
stainless steel,carbon steel or as customer's demand
-
Drive type:
-
Electric
-
Basis Weight:
-
13-30gsm
-
Capacity:
-
4t/d, 10t/d, or as customer's requirement
-
Working Speed:
-
150-180m/min or as customer's requirement
-
Certification:
-
ISO9001;SGS;CE;National patent
Hot selling at oversea small manufacturing machines, handmade paper manufacturing machine
--------------------------------------------------------------------------------------------------------------------------------------------------------------
Specifications
Tssue paper machine and Tisse paper making machine
1.Good paper machinery
2. Energy conservation
3.Operate easily
4. Excellent service after sales
1 Brief Description
JL series high-speed tissue paper making machine suitable for making fixed quantity and high-grade life paper and culture paper .It spurns the ancient cylinder mouldl machine's abuse of low copy speed ,high quantitation ,low efficiency and complex operation ,which changes common cylinder mould vat into oblique mount hydration board vat .It has high automaticity and is easy to operate .It has tens of improvement ,such as change the common adjustable arc board vat into pressure vat ,change the atmospheric pressure sizing moulding into force pressure sizing moulding ,change the traditional manual pressurizing adjustment into air power pressurizing and change the scrapper into movable air power .Its main characteristics are low sizingconsistency ,large pressure ,evenness ,quick mould and good evenness ,wide quantitation scope ,high vehicle speed ,large output ,low energy consumption ,compact conformation and stable operation .It is the renewal product of common cylinder mould machine .dard:1092.1575.1760.1880.2362,2640,2900,mm

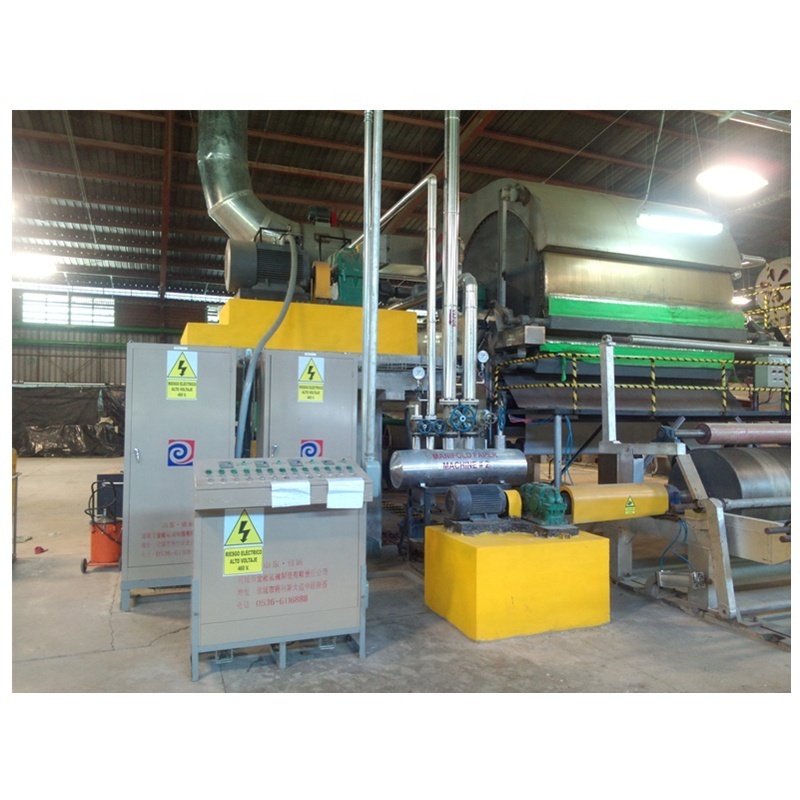

2 The detailed picture of the machinery
3 Machine Drawing
4 P rocess Flow Diagram
Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump——bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanket——paper making machine——drying——roll paper——the big finished jumbo paper —— process machine
1. toilet paper machine (rewinder machine——cutting paper machine——small roll paper)
2. napkin paper machine(plate paper slitting machine —— napkin paper machine —— napkin paper
3. facial tissue paper (plate paper slitting machine —— facial tissue paper machine —— facial tissue paper
5 Finished Paper
6 Exhibition
Got any ideas? click here & mail to us now
Pre-Sales Service:
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients
- Training periodically high qualified service technician.
After-sales Service:
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
Why choose JINLONG?
♥ 18 years experiences in Paper and Pulp industry ,7 years professional export on tissue and paper machines and q uick response within 12 hours
1.low cost :
- all the machine ,we make it ourself to reduce the cost of our customer.
2.Genuine product with excellent quality :
- we choose our material very strict,
- all the material come to our factory must pass the quality test
- substandard goods are returned to the supplier.
3. Engerneers available to serve oversea:
4. quick delivery:
- the company provide just in time delivery with its streamlined supply chain
5.cost saving
- we take strong attention to every detail in the manufacturing process,
- the quality control in our factory is very strict,
- all defective semi-manufactures must be treated again or reject.
- all the machine must be checked out ,then deivered to our customer.
- all about that pushing up the price,
- what we want to do is give our customer a good quality product with stable working and long lived.
