Quick Details
-
Warranty:
-
1 - 2 years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Emean
-
Model Number:
-
VG-404G
-
Speed:
-
1500/1800rpm
-
Output Type:
-
AC Three Phase
-
Power range:
-
6.5kw to 1000kw
-
Copper Wire:
-
100% 200°C H Class
-
Insulation Class:
-
H
-
Wheels:
-
With Wheels
-
Certificate:
-
CE, ISO9001:2008
-
Certification:
-
CE/ISO/COC/CIQ/SONCAP
Quick Details
-
Rated Voltage:
-
110v/120v/220v/230v/240/380V/400V/415V
-
Rated Current:
-
Depends on voltage
-
Frequency:
-
50/60HZ
-
Warranty:
-
1 - 2 years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Emean
-
Model Number:
-
VG-404G
-
Speed:
-
1500/1800rpm
-
Output Type:
-
AC Three Phase
-
Power range:
-
6.5kw to 1000kw
-
Copper Wire:
-
100% 200°C H Class
-
Insulation Class:
-
H
-
Wheels:
-
With Wheels
-
Certificate:
-
CE, ISO9001:2008
-
Certification:
-
CE/ISO/COC/CIQ/SONCAP
Emean company owned by
Fujian Epos electric machinery co., Itd
and Fuzhou Emean Electric Machinery Co.,Ltd LTD that is a high-techenterprise integrating R&D, production and sales, and has always promoted high-quality power products to the international market.
The products are widely sold more than 102 countries and regions such as Southeast Asia South America Middle east Africa and Furope. Etc
Product parameters
|
We have power from 3kw-2000kw,
any interesting please contact with us to quote the best price for you
|
|
|
|
|
||||
|

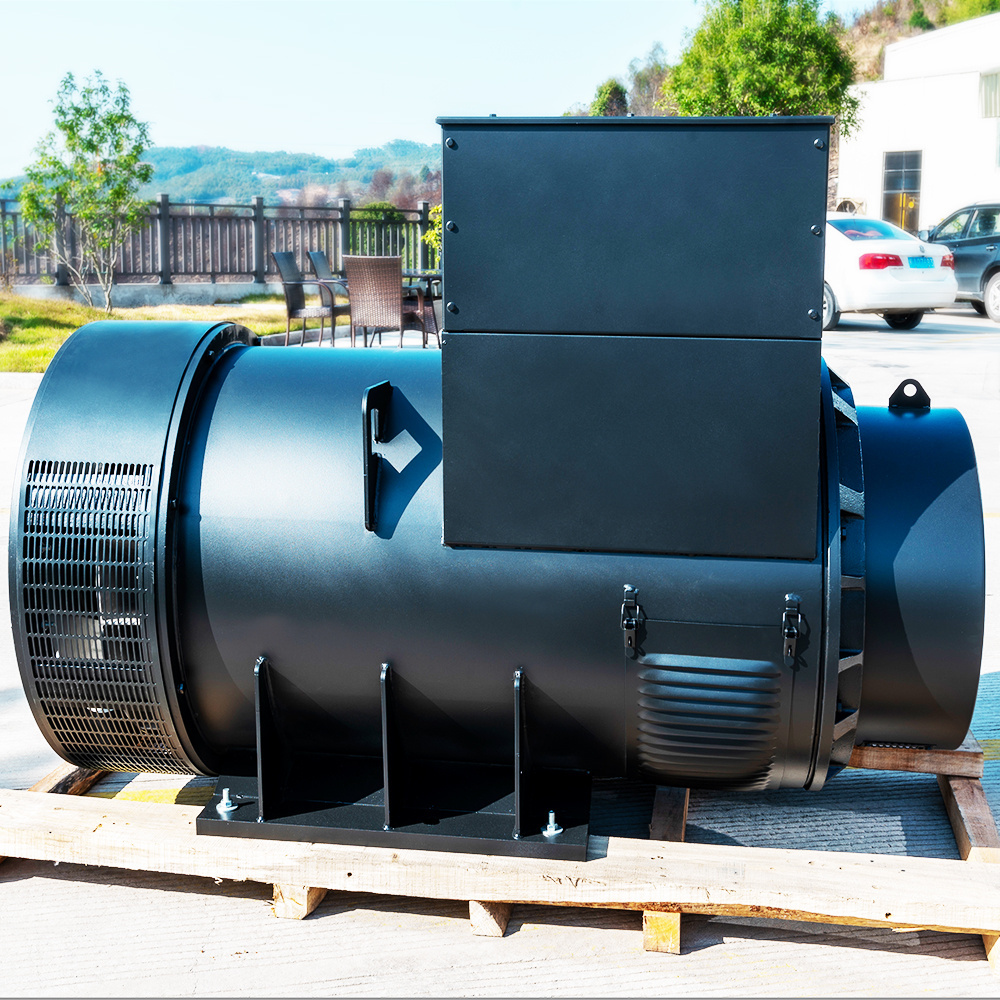

Brushless Alternator Specifications
3 phase H-Class Temperature-rise(125°C) Winding 311 |
|
|
|
|
||||
|
Details
Alternator
|
Brand
|
China Stanford, original Stanford, Marathon, Lehua Somer
|
|
|
||||
|
|
Power factor(COSΦ)
|
0.8
|
Type
|
Brushless sel-excited
|
||||
|
|
Frequency (Hz)
|
50/60
|
Speed rpm
|
1500/1800
|
||||
|
|
Insulation Grade
|
H
|
THF/TIF
|
THF≤2%, TIF≤50
|
||||
|
|
Protection Grade
|
IP23
|
Terminal
|
12
|
||||
|
Three Phase/Single Phase H-class(125℃/40℃)
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Rated Output
|
|
Standard Core Length
|
Standard SAE
No.
|
Size Weight
|
|
|
|||||||
|
|
50Hz
|
60Hz
|
|
|
N.W
|
G.W
|
Package Size
|
|||||||
|
|
KW
|
KW
|
|
|
kg
|
kg
|
cm
|
|||||||
|
VG-164A
|
6.8
|
8
|
L=65
|
4#7.5
|
85
|
95
|
53x55x59
|
|||||||
|
VG-164B
|
8.8
|
10
|
L=80
|
4#7.5
|
90
|
100
|
53x55x59
|
|||||||
|
VG-164C
|
10.8
|
12.8
|
L=100
|
4#7.5
|
96
|
106
|
53x55x59
|
|||||||
|
VG-164D
|
12.8
|
16
|
L=115
|
4#7.5
|
99
|
109
|
53x55x59
|
|||||||
|
VG-184ES
|
15
|
18
|
L=130
|
4#7.5
|
116
|
126
|
58x55x59
|
|||||||
|
VG-184E
|
18
|
22
|
L=150
|
3#11.5
|
120
|
130
|
58x55x59
|
|||||||
|
VG-184F
|
22
|
26
|
L=190
|
3#11.5
|
150
|
160
|
67x55x59
|
|||||||
|
VG-184G
|
25
|
30
|
L=230
|
3#11.5
|
156
|
166
|
67x55x59
|
|||||||
|
VG-184H
|
30
|
36
|
L=255
|
3#11.5
|
216
|
226
|
74x55x59
|
|||||||
|
VG-184J
|
32
|
38
|
L=285
|
3#11.5
|
226
|
236
|
74x55x59
|
|||||||
|
VG-224C
|
34
|
40
|
L=134
|
3#11.5
|
235
|
255
|
82x55x81
|
|||||||
|
VG-224D
|
40
|
48
|
L=160
|
3#11.5
|
250
|
270
|
82x55x81
|
|||||||
|
VG-224E
|
48
|
58
|
L=186
|
3#11.5
|
270
|
290
|
91x55x81
|
|||||||
|
VG-224F
|
58
|
70
|
L=248
|
3#11.5
|
310
|
330
|
91x55x81
|
|||||||
|
VG-224G
|
68
|
80
|
L=309
|
3#11.5
|
350
|
370
|
96x55x81
|
|||||||
|
VG-274C
|
80
|
96
|
L=165
|
3#11.5
|
385
|
415
|
91x65x87
|
|||||||
|
VG-274D
|
96
|
115
|
L=205
|
3#11.5
|
405
|
435
|
91x65x87
|
|||||||
|
VG-274E
|
112
|
135
|
L=230
|
3#11.5
|
455
|
485
|
100x65x87
|
|||||||
|
VG-274F
|
125
|
150
|
L=285
|
3#11.5
|
500
|
530
|
100x65x87
|
|||||||
|
VG-274G
|
144
|
180
|
L=340
|
3#11.5
|
550
|
580
|
105x65x87
|
|||||||
|
VG-274H
|
160
|
195
|
L=375
|
3#11.5
|
600
|
630
|
110x65x87
|
|||||||
|
VG-274J
|
180
|
220
|
L=410
|
3#11.5
|
720
|
760
|
115x70x90
|
|||||||
|
VG-274K
|
200
|
240
|
L=450
|
3#11.5
|
740
|
780
|
115x70x90
|
|||||||
|
VG-444C
|
200
|
240
|
L=275
|
1#14
|
850.5
|
910
|
130x77x99
|
|||||||
|
VG-444D
|
240
|
300
|
L=340
|
1#14
|
915.5
|
975
|
130x77x99
|
|||||||
|
VG-444ES
|
260
|
320
|
L=410
|
1#14
|
995.5
|
1055
|
130x77x99
|
|||||||
|
VG-444E
|
280
|
340
|
L=420
|
1#14
|
995.5
|
1055
|
130x77x99
|
|||||||
|
VG-444FS
|
300
|
360
|
L=500
|
1#14
|
1123.5
|
1183
|
139x77x99
|
|||||||
|
VG-444F
|
320
|
385
|
L=500
|
1#14
|
1123.5
|
1183
|
139x77x99
|
|||||||
|
VG-544C
|
360
|
440
|
L=350
|
0#14
|
1250
|
1350
|
146x84x100
|
|||||||
|
VG-544D
|
400
|
480
|
L=430
|
0#14
|
1358
|
1450
|
146x84x100
|
|||||||
|
VG-544E
|
480
|
600
|
L=500
|
0#14
|
1498
|
1598
|
146x84x100
|
|||||||
|
VG-544F
|
550
|
680
|
L=575
|
0#14
|
1653
|
1753
|
154x848100
|
|||||||
Product Configuration and Details
|
1.Overload protection for safe running
|
|
2.Top quality & Easy Maintenance
|
|
3.Stamford technology & high-quality materials
|
|
4.Single bearing or Double bearing
|
|
5.Easy to be connected with power networks or other generator sets
|
|
6.4 POLE, Brushless, Self-excited, H class insulation, IP23, A.V.R. 100% Copper
|
|
7.Farrand Series AC Brushless alternators are conformity to GB755, IECBS5000, VDE0530,NEMA MG1-22 & IEC34, C 22.2-100standards
|
|
8.The 2/3 pitch windings avoid excessive neutral currents, ensure low waveform distortion.
|
|
9.Low-frequency protection & exterior voltage adjustments.
|
