Quick Details
-
Color Print Speed:
-
N/A
-
Max. Resolution:
-
203dpi(8dots/mm)
-
Brand Name:
-
Cashino
-
Model Number:
-
CSN-350B
-
Place of Origin:
-
Fujian, China
-
Reservoir:
-
DRAM:2M FLASH:2M
-
Power:
-
DC 24V/2.5A
-
Size:
-
220L*150W*150H mm
-
Paper type:
-
tear off and peel off
-
Barcode:
-
1D,2D
-
Black mark sensor:
-
Photoeletric sensor
-
Weight:
-
1.5kg
-
Media type:
-
Continous,sticker,fan-fold,etc.
-
Printing Command:
-
Compatible with POS/ESC Comand Set
Quick Details
-
Interface Type:
-
RS323+USB+LAN
-
Max Paper Size:
-
16mm~82mm
-
Black Print Speed:
-
127mm/sec
-
Color Print Speed:
-
N/A
-
Max. Resolution:
-
203dpi(8dots/mm)
-
Brand Name:
-
Cashino
-
Model Number:
-
CSN-350B
-
Place of Origin:
-
Fujian, China
-
Reservoir:
-
DRAM:2M FLASH:2M
-
Power:
-
DC 24V/2.5A
-
Size:
-
220L*150W*150H mm
-
Paper type:
-
tear off and peel off
-
Barcode:
-
1D,2D
-
Black mark sensor:
-
Photoeletric sensor
-
Weight:
-
1.5kg
-
Media type:
-
Continous,sticker,fan-fold,etc.
-
Printing Command:
-
Compatible with POS/ESC Comand Set

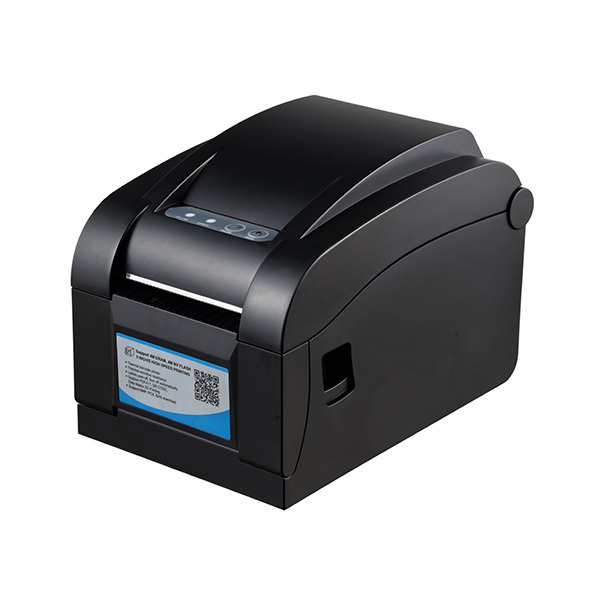

80mm QR Code Label Paper Adhesive Sticker Thermal Printer for logistics sticker printer
Brief:
The most efficient solution for your professional labeling, filing and mailing needs, the CSN-350B saves you time and money at the office. Connect a CSN-350B to your PC or Mac and you are ready to print labels directly from Microsoft,Word or Outlook, QuickBooks, CardScan, Mac Address Book and other popular programs. Print impressive address, file folder labels, name badges and more without the extra work and hassle of printing sheet labels on a standard desktop printer. Thermal printing technology eliminates the cost of ink or toner and the printer’s compact design makes it an easy and attractive addition to any modern workspace
Feature:
- Support Thermal Receipt Roll Paper & Lable Paper
- Support paper width from 16mm to 82mm
- Support printer head pressure adjustment
- Support paper auto verify
- Automatical temperature control
- Easy paper-roll installation.
- Easy paper jam clearance.
- Easy maintenance
- Communication
- Post
- Retail
- Logistics
Specification:
|
Printing method |
Thermal line printing |
|
|
Resolution |
203dpi(8dots/mm) |
|
|
Print width |
16mm~82mm |
|
|
Print speed |
127mm/sec. (Max.); 101mm/sec. (Min.) |
|
|
Memory |
DRAM: 2M ; FLASH: 2M |
|
|
Print head temperature sensor |
Thermal sensitive resistance |
|
|
Print head position sensor |
Microswitch |
|
|
Black mark sensor |
Photoeletric sensor |
|
|
Interface |
Parallel/RS232C+USB/LAN |
|
|
Barcode font&Graphics |
Barcode |
CODE128, EAN128, ITF, CODE39, CODE93, EAN13,EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5,CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5,UPC-E, UPCE+2, UPC-E+5, CPOST, MSI, MSIC,PLESSEY, ITF14, EAN14 |
|
Internal font |
FONT 0 to FONT 8 ; Simplified Chinese,Traditional Chinese,Korean |
|
|
Enlargement&rotation |
1to10 times enlargement in both directions; 0°, 90°, 270°, 360°rotation |
|
|
Graphics |
Black and white PCX and BMP files can be downloaded into FLASH and DRAM |
|
|
Media |
Media type |
Continous,sticker,fan-fold,etc. |
|
Media width |
16mm~82mm |
|
|
Media diameter |
Max.85mm |
|
|
Media core diameter |
Min.25mm |
|
|
Paper off type |
Tear off & peel off |
|
|
Power |
Imput |
24VDC, 2.5A |
|
Environment condition |
Work |
5~45,20~80%RH |
|
Storage |
-40~55 ,≤93%RH(40) |
|
|
Physical dimension |
Dimension |
220*150*150mm( L*W*H) |
|
Weight |
1.5KG |
