Quick Details
-
Power:
-
4kw
-
Min. Lifting Height:
-
1.5m
-
Table Size:
-
11300*2000*mm
-
Overall Dimensions:
-
11300*2000*1500mm
-
Weight:
-
3200 kg
-
Application:
-
Loading
-
Keywords:
-
mobile hydraulic yard ramp
-
Color:
-
Customers' Requirements
-
Material:
-
High-duty Steel Structure
-
Lifting power:
-
Manual or electric
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GRADIN
-
Power:
-
4kw
-
Min. Lifting Height:
-
1.5m
-
Table Size:
-
11300*2000*mm
-
Overall Dimensions:
-
11300*2000*1500mm
-
Weight:
-
3200 kg
-
Application:
-
Loading
-
Keywords:
-
mobile hydraulic yard ramp
-
Color:
-
Customers' Requirements
-
Material:
-
High-duty Steel Structure
-
Lifting power:
-
Manual or electric

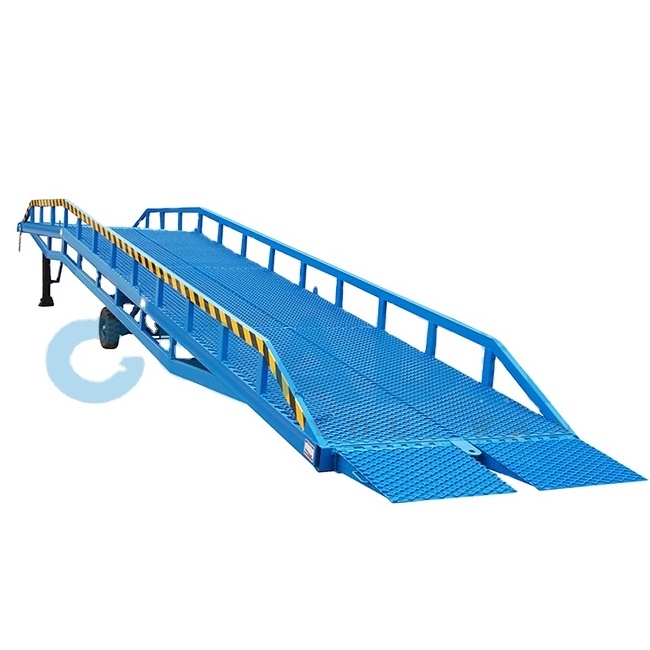

Mobile hydraulic dock ramp for container loading Yard ramp
Mobile container load ramp is designed with load capacity 6-30 tons, making the goods loading and unloading easier from container by forklift. It is widely used in the wharf,the platform,warehouse and also according to the different needs of users, its dimension and load bearin g can be customized.
A,The yard ramp can be designed and produced according to customers' requirements.
B,The ramp lifting power : by manual hand lifting and electric for your choice.
C,The platform is anti-slip checkered steel plate to guarantee good anti-slip performance of the platform
D,We use solid tyres instead of the pneumatic tyres which will be more safety and easy to control during operation, it will extend the tyres and the ramps service life.
E,Adopting imported sealing member to guarantee good sealing performance of the hydraulic syste
m.
| Model | Loading Capacity | Overall Length | Overall Width | Height Range | Weight |
| DCQ-Y-6 | 6000kg | 11300mm | 2000mm | 1100-1800mm | 2400kg |
| DCQ-Y-8 | 8000kg | 11300mm | 2000mm | 1100-1800mm | 2700kg |
| DCQ-Y-10 | 10000kg | 11300mm | 2000mm | 1100-1800mm | 2900kg |
| DCQ-Y-12 | 12000kg | 11300mm | 2200mm | 1100-1800mm | 3100kg |
| DCQ-Y-15 | 15000kg | 11300mm | 2200mm | 1100-1800mm | 3500kg |
