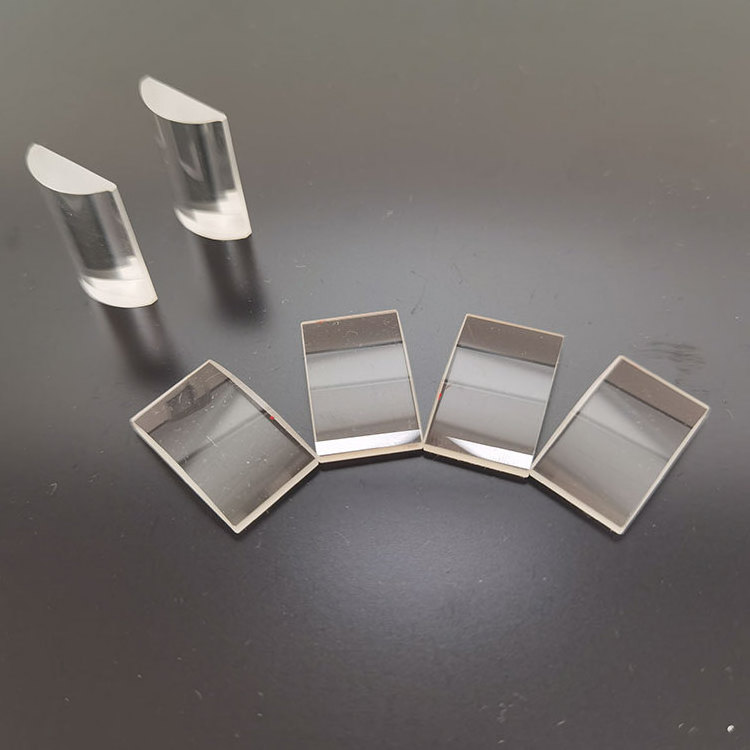

k9 glass nir coated convex cylindrical lens prism
k9 glass nir coated convex cylindrical lens prism
k9 glass nir coated convex cylindrical lens prism
k9 glass nir coated convex cylindrical lens prism
k9 glass nir coated convex cylindrical lens prism
k9 glass nir coated convex cylindrical lens prism
k9 glass nir coated convex cylindrical lens prism
k9 glass nir coated convex cylindrical lens prism

k9 glass nir coated convex cylindrical lens prism

FOB Reference Price: Get Latest Price
≥5 Pieces
US $19.99
≥50 Pieces
US $3.99
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Jilin, China
Brand Name:
ZOOLIED
Model Number:
N006
Material:
Fused Silica, BK7, H-ZF13, etc
Dimension:
3mm-250mm
Wavelength:
VIS, UV or IR
Surface Quality:
60/40 or 40/20
Flatness:
L/2
Bevel:
Protective bevel as needed
Clear Aperture:
≥90%
Coating:
Uncoated/AR/BBAR/HR/Metellic
Application:
Laser or medical

Quick Details

Usage:
Optical
Structure:
Plano-convex
Shape:
Spherical
Place of Origin:
Jilin, China
Brand Name:
ZOOLIED
Model Number:
N006
Material:
Fused Silica, BK7, H-ZF13, etc
Dimension:
3mm-250mm
Wavelength:
VIS, UV or IR
Surface Quality:
60/40 or 40/20
Flatness:
L/2
Bevel:
Protective bevel as needed
Clear Aperture:
≥90%
Coating:
Uncoated/AR/BBAR/HR/Metellic
Application:
Laser or medical
Material
Fused Silica, BK7, H-ZF13, etc
Shape
Cylindrical Lens
Dimension
3mm-250mm
Wavelength
VIS, UV or IR
Surface Quality
60/40 or 40/20
Flatness
L/2
Bevel
Protective bevel as needed
Clear Aperture
≥90%
Coating
Uncoated/AR/BBAR/HR/Metellic
Application
Laser or medical
Zoolied Cylinder Lens production has the following advantages: high-quality customized cylindrical lenses suitable for all ultraviolet to infrared applications, prototype production through mass production quantities, high concentricity, support for custom sizes, and excellent image quality. Zoolied is committed to manufacturing high-precision cylindrical lenses from rapid proofing to mass production. Our lenses are made of BK7, fused silica and other glass materials. What is a Cylindrical Lens? A Cylindrical Lens is a lens that focuses light on a line instead of a point, such as a Spherical Lens . One or more curved surfaces of the Cylinder Lens is part of the cylindrical surface, and the image through the cylindrical lens is focused into a straight line parallel to the lens surface and intersecting the tangent plane. The lens compresses the image in the direction perpendicular to this line and keeps it in the direction parallel to it (in the tangent plane). In a light sheet microscope, a cylindrical lens is placed in front of the illumination objective to produce a light sheet for imaging. The cylindrical lens focuses or expands light on only one axis. They can be used to focus light into thin lines in optical metrology, laser scanning, spectroscopy, laser diode, acousto-optic, and optical processor applications. They can also be used to expand the output of a laser diode into a symmetrical beam. Cylindrical lenses are widely used in communication applications such as wireless sensors, 40G/100G modules, and laser applications such as pump laser modules. Zoolied offers a variety of Optical Glass Lenses, such as Ball Lens, Optical Aspherical Lens, Endoscope Lens. Zoolied provides multiple anti-reflection coating options for the Ultraviolet (UV), visible, or Infrared (IR) and also provides uncoated Optical Glass Prism based on K9 optical glass,N-bk8 glass and UV fused silica.
