Quick Details
-
Place of Origin:
-
Henan, China
-
Product name:
-

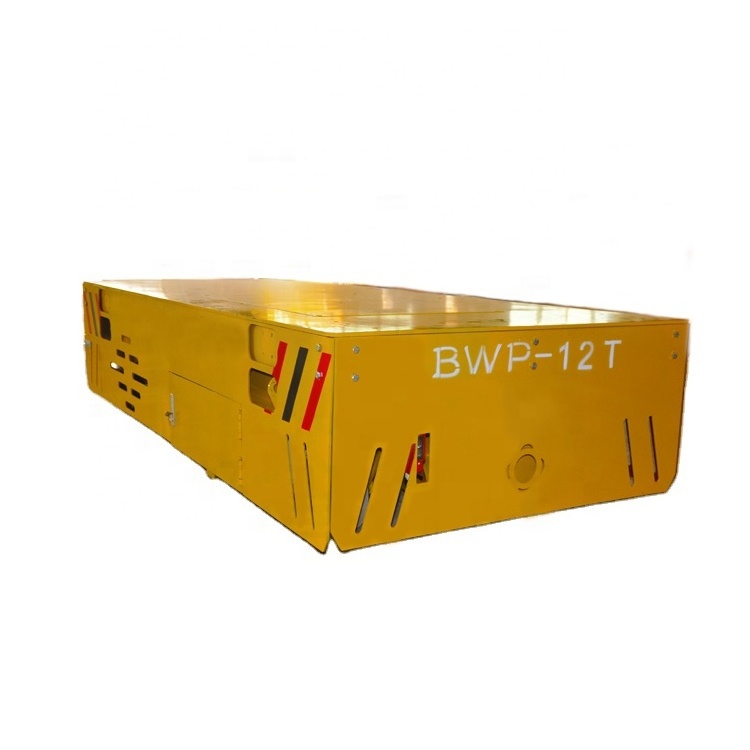

Wireless Remote Control Trackless Electric Transfer Cart
-
Application:
-
Industry
-
Usage:
-
Wide Usage
-
Color:
-
Requirements
-
Size:
-
Customized Size
-
Capacity:
-
1-300ton
-
Material:
-
Q345
-
Advantage:
-
360 degree turning around
-
Operation Type:
-
Remote
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
2000
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Henan, China
-
Product name:
-
Wireless Remote Control Trackless Electric Transfer Cart
-
Application:
-
Industry
-
Usage:
-
Wide Usage
-
Color:
-
Requirements
-
Size:
-
Customized Size
-
Capacity:
-
1-300ton
-
Material:
-
Q345
-
Advantage:
-
360 degree turning around
-
Operation Type:
-
Remote
Product Overview
The battery power trackless transfer cart is an alternative transfer cart for rail transfer cars. It overcomes many inconvenience of rail-type electric transfer carts. The trackless electric transfer carts can finish free-turning without rail in the workshop and workshop. There is no need to lay rails, so it does not affect traffic, does not hinder production, and the flat car is more flexible, the operation is more humanized.
Electric flat cars use large-capacity lead-acid or lithium battery packs to provide energy, DC motor speed control drive technology, multi-wheel hydraulic steering technology and dual operation modes of wire control and remote control. The solid rubberized wheels walk directly on the ground. The operation of electric flat cars is not restricted by the site.
Features
1. It is not restricted by the track and can travel on the ground.It can turn 360 degrees;
2. Suitable for all kinds of environments.It can be used indoors or outdoors in high temperature explosion-proof and other environments;
3. Suitable for long distance operation;
4. Customized for you.Custom table size, operating speed,load,etc.Meet your requirements;
5. Equipped with safety warning and automatic stop device;
6.Simple structure and low cost;
7.Not limited by the use time, relative to the battery-powered flat cart;
8.The maximum running distance can meet 200m.
Product Parameter
|
Model
|
BWP-2T
|
BWP-5T
|
BWP-10T
|
BWP-20T
|
BWP-30T
|
BWP-50T
|
BWP-100T
|
|
Rated load
|
2t
|
5t
|
10t
|
20t
|
30t
|
50t
|
100t
|
|
Length(mm)
|
2000
|
2200
|
2300
|
2400
|
3500
|
5500
|
6600
|
|
Width(mm)
|
1500
|
2000
|
2000
|
2200
|
2600
|
2500
|
3000
|
|
Heigth(mm)
|
450
|
500
|
550
|
600
|
700
|
800
|
1200
|
|
Wheel Base (mm)
|
Φ250
|
Φ300
|
Φ350
|
Φ400
|
Φ450
|
Φ600
|
Φ600
|
|
Motor Power (Kw)
|
2*1.2
|
2*1.5
|
2*2.2
|
2*4.5
|
2*5.5
|
2*7.5
|
40
|
|
Battery Capacity(Ah)
|
250
|
180
|
250
|
400
|
450
|
500
|
1000
|
|
Battery Voltage (V)
|
24
|
48
|
48
|
48
|
48
|
72
|
72
|
|
Running Speed (m/min)
|
0-30
|
0-30
|
0-30
|
0-25
|
0-25
|
0-25
|
0-25
|
Product Details
Application
Application scope: aerospace, military industry, machinery manufacturing, automobile industry, heavy industry manufacturing, mold manufacturing, engineering machinery, shipbuilding, port cargo yard, steel plate distribution, iron and steel metallurgy, mining transportation and other industries.
1.What is the size and load of this Transfer cart?
The size and load of our Transfer cart are customized design according to your requirement.
The size and load of our Transfer cart are customized design according to your requirement.
2.How should I operate this Transfer cart?
The Transfer cart is controlled by pendant & remote radio control. The controller could be a push button or joy-sticker.
The Transfer cart is controlled by pendant & remote radio control. The controller could be a push button or joy-sticker.
3.Is there any braking system on this Transfer cart?
Yes, there are electromagnetic brakes on the Transfer cart. When the Transfer cart is power off, the brake will work
automatically. And there are emergency stop buttons on the remoter and the Transfer cart, you can push it for the emergency stop.
Yes, there are electromagnetic brakes on the Transfer cart. When the Transfer cart is power off, the brake will work
automatically. And there are emergency stop buttons on the remoter and the Transfer cart, you can push it for the emergency stop.
4.What is the warranty period? What kind of service do you offer in the warranty period?
The warranty period for our product is 12 months from the time we delivery, during the warranty period, we will send spare
parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our
engineer is available to your factory for maintenance.
parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our
engineer is available to your factory for maintenance.
