Quick Details
-
Brand Name:
-
YIYU
-
Model Number:
-
YYW3000DS
-
Product name:
-
Testing Machine
-
Application:
-
Industrial
-
Function:
-
Compression Strength
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Hydraulic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIYU
-
Model Number:
-
YYW3000DS
-
Product name:
-
Testing Machine
-
Application:
-
Industrial
-
Function:
-
Compression Strength
Company Overview
Product Description

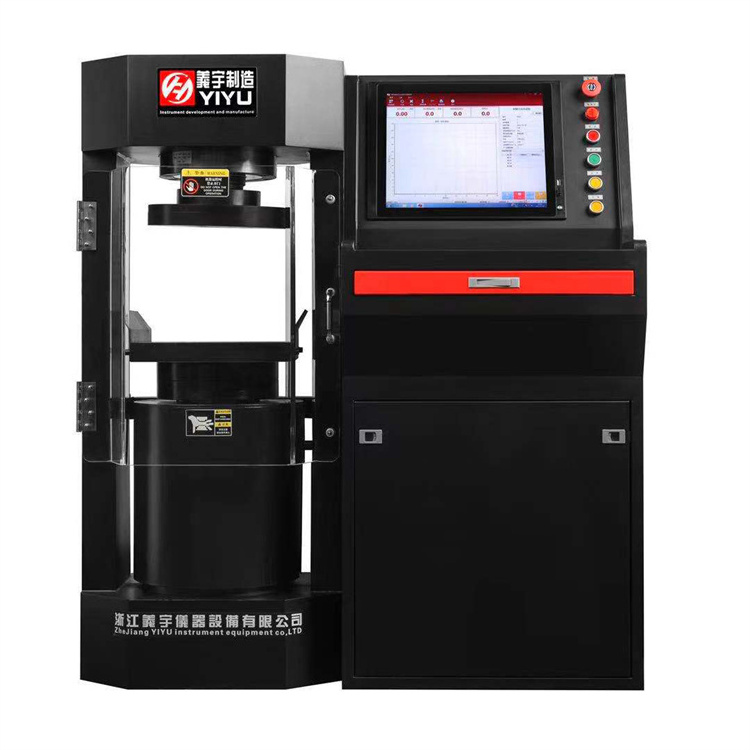

YYW-DS series microcomputer controlled electro-hydraulic servo press testing machine is an electro-hydraulic servo pressure testing machine with force closed loop control, with constant stress control and load holding functions.
The
main machine structure is made of high-strength material precision machining, with strong rigidity and good stability
main machine structure is made of high-strength material precision machining, with strong rigidity and good stability
|
Maximum testing force of testing machine
|
2000kN
|
3000kN
|
|
Grade of accuracy
|
level 0.5
|
level 0.5
|
|
Relative error of test force indication value
|
within ±0.5％
|
within ±0.5％
|
|
Test force measurement range
|
1%～100%FS
|
1%～100%FS
|
|
Compress the maximum net space
|
330mm
|
335mm
|
|
Maximum stroke of piston
|
200mm
|
200mm
|
|
Electrical source
|
AC220V±10%，2.3kW
|
AC220V±10%，2.3kW
|
|
Main engine dimensions (length × width × height)
|
540×400×1270mm
|
700×500×1500mm
|
|
Control cabinet size (length × width × height) :
|
600×450×1270mm
|
600×500×1500mm
|
|
Kg net weight:
|
1200kg
|
2300kg
|
