Quick Details
-
Model Number:
-
JCW-CST02 INSU
-
Function:
-
Double side wire stripping, double side terminal crimping
-
Wire Range:
-
0.03-2mm2 (4mm2 on request)
-
Cutting Length:
-
40-9999mm
-
Stripping Length:
-
1.5-10mm
-
Peripheral:
-
CFM, Belt Conveyor
-
Weight:
-
388kg
-
Stripping Increment:
-
0.1mm
-
Productivity:
-
3000 pcs/hr (L≤100mm)
-
Dimension:
-
L 1000 x W 800 x H 1500mm
-
Cutting Tolerance:
-
1mm+0.002 x L
Quick Details
-
Usage:
-
Multifunctional
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCWelec
-
Model Number:
-
JCW-CST02 INSU
-
Function:
-
Double side wire stripping, double side terminal crimping
-
Wire Range:
-
0.03-2mm2 (4mm2 on request)
-
Cutting Length:
-
40-9999mm
-
Stripping Length:
-
1.5-10mm
-
Peripheral:
-
CFM, Belt Conveyor
-
Weight:
-
388kg
-
Stripping Increment:
-
0.1mm
-
Productivity:
-
3000 pcs/hr (L≤100mm)
-
Dimension:
-
L 1000 x W 800 x H 1500mm
-
Cutting Tolerance:
-
1mm+0.002 x L

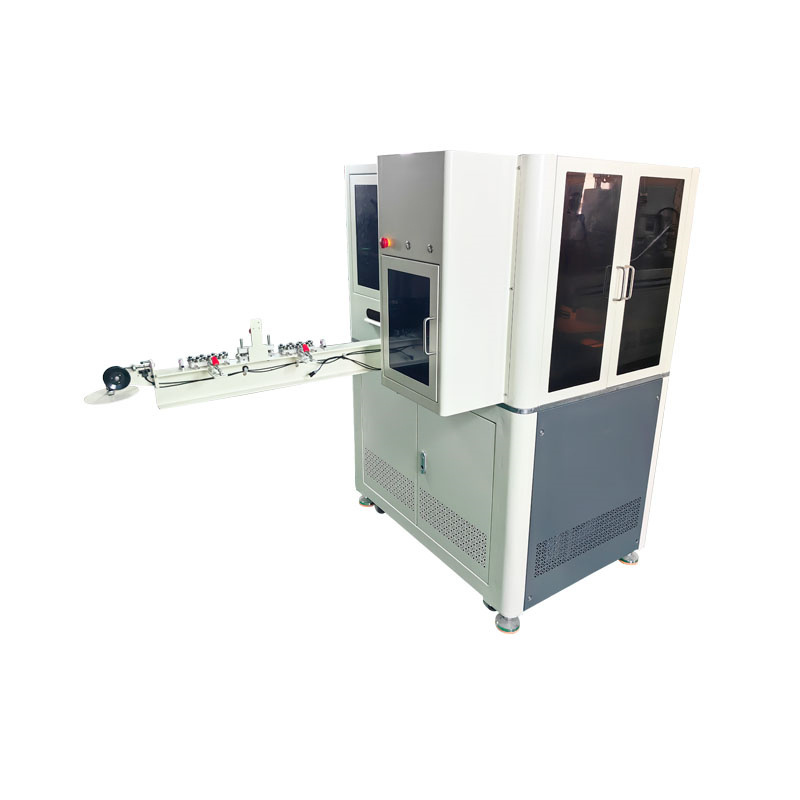

Automated Insulated Terminal Crimping Machine
Important member of CST02 family
Servo motor controlled crimping presses
Apply to both insulated and non-insulated terminals
Twist conductor before crimping
Servo motor controlled crimping presses
Apply to both insulated and non-insulated terminals
Twist conductor before crimping
|
Model
|
CST02 INSU
|
CST02
|
CST02B
|
CST05
|
|||
|
Function
|
Wire cutting, Single / Dual-end strip and twist, Single / Dual-end crimp, Cut depth, Pull-off length, Insulated terminal,
non-insulated terminal, etc |
Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, etc
|
Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Strip length
|
Wire pre-feeder, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, Crimp position
|
|||
|
Wire cross-section
|
0.1 - 2 mm² ( AWG 28 -14 )
|
|
AWG 32 -18
|
0.03-2mm²(AWG32-14 )
|
|||
|
Strip length
|
1.5 - 10 mm
|
|
0.1 - 15 mm
|
Front Side:0.2-8mm Rear Side:0.1-10mm
|
|||
|
Cut length ( L )
|
45 - 99999 mm
|
|
10 - 9999 mm
|
22 - 99999 mm
|
|||
|
Crimp force
|
20KN(2.0tons)[40 KN on request][Servo model ]
|
|
18 KN [ 1.8 tons ]
|
20 KN ( 2.0 tons )
|
|||
|
Detector
|
Wire lack, Terminal crimping, Wire knot, Air pressure [ CFM on request ]
|
|
|
|
|||
|
Production rate
|
900 - 10000 pcs/h by 100 mm wire length, insulated terminal
|
4000 pcs/h by 100 mm wire length
|
4500 pcs/h by 100 mm wire length
|
3600 pcs/h [ cutting length 50mm, crimp one side ]
|
|||
|
Power supply
|
AC 110 - 220V ± 10%, 50 / 60 Hz
|
|
|
|
|||
|
Air supply
|
0.4 - 0.6 MPa [ Clean and dry air ]
|
|
|
0.5 - 0.7 MPa [ Clean and dry air ]
|
|||
|
Weight
|
388KG
|
358KG
|
290 KG
|
460KG
|
|||
|
Dimensions
|
L 1000 x W 800 x H 1500mm
Straightener: 800 mm
|
L 800 x W 700 x H 1500mm
|
L 780 x W 650 x H 1380mm
|
L 1400 x W 1000 x H 1800mm
|
|||
