- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Tuodi
-
Model Number:
-
TDL-6108A
-
Input Voltage(V):
-
5V
-
Lamp Luminous Flux(lm):
-
150
-
Working Temperature(℃):
-
-20 - 40
-
Working Time (hours):
-
12
-
PCs/ Ctn:
-
80
-
Packing Dimension:
-
400*25*25MM
-
Product Weight（kg）:
-
220
-
Product name:
-
TDL-6108A
-
LED color:
-
Warn White+Cool White
-
Power:
-
3W
Quick Details
-
Lamp Body Material:
-
Aluminum
-
Design Style:
-
EUROPEAN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tuodi
-
Model Number:
-
TDL-6108A
-
Input Voltage(V):
-
5V
-
Lamp Luminous Flux(lm):
-
150
-
Working Temperature(℃):
-
-20 - 40
-
Working Time (hours):
-
12
-
PCs/ Ctn:
-
80
-
Packing Dimension:
-
400*25*25MM
-
Product Weight（kg）:
-
220
-
Product name:
-
TDL-6108A
-
LED color:
-
Warn White+Cool White
-
Power:
-
3W
What is led motion sensor light?
Feature:
1.Energy-saving&convenient
Dual induction lamp:
PIR senor + light sensor
Activated by the detection of moving body heat, the lighting will stay on for a preset period of time usually 15 seconds.it can be customized according to customer's requirements.. If body heat is no longer detected, the time period will elapse and the load will be switched off ,compared with traditi
o
nal push
-
button light it's more convenient.
it will only light on in a dark condition which means even people pass by if the light cond
i
tion is enough the light will not light on which is en
er
gy-saving .
2.modern & humanized design
A ll the lights is design by our engineer team,according to the different shape,size,material,application condition,detecting range,installation,detecting angle,connection,power source we desig n ed different lights.even for o p en light we have different characterist i cs,functions.
What is the specification ?
|
Induction mode |
PIR motion sensor |
|
Lithium battery |
4000mAh/ 3.7v |
|
Working current |
337mA± 10% |
|
Power |
3 W + / - 10% |
|
Optical flux |
132LM± 10% |
|
CRI |
≥ 80 |
|
Color temperature |
6000-6700 k |
|
Delay time |
15S(± 2S) |
|
N o. of lamp beads |
48PCS |
|
Induction distance |
≥ 3M |
|
Induction beam Angle |
Around rotary scope about 110° , Tilt range about 80° |
|
Light control illumination |
≤ 10LUX |
|
Service temperature |
-10-40℃ |
|
Weight |
168 g |
|
Product size |
400*25*25mm(thickness including induction probe) |

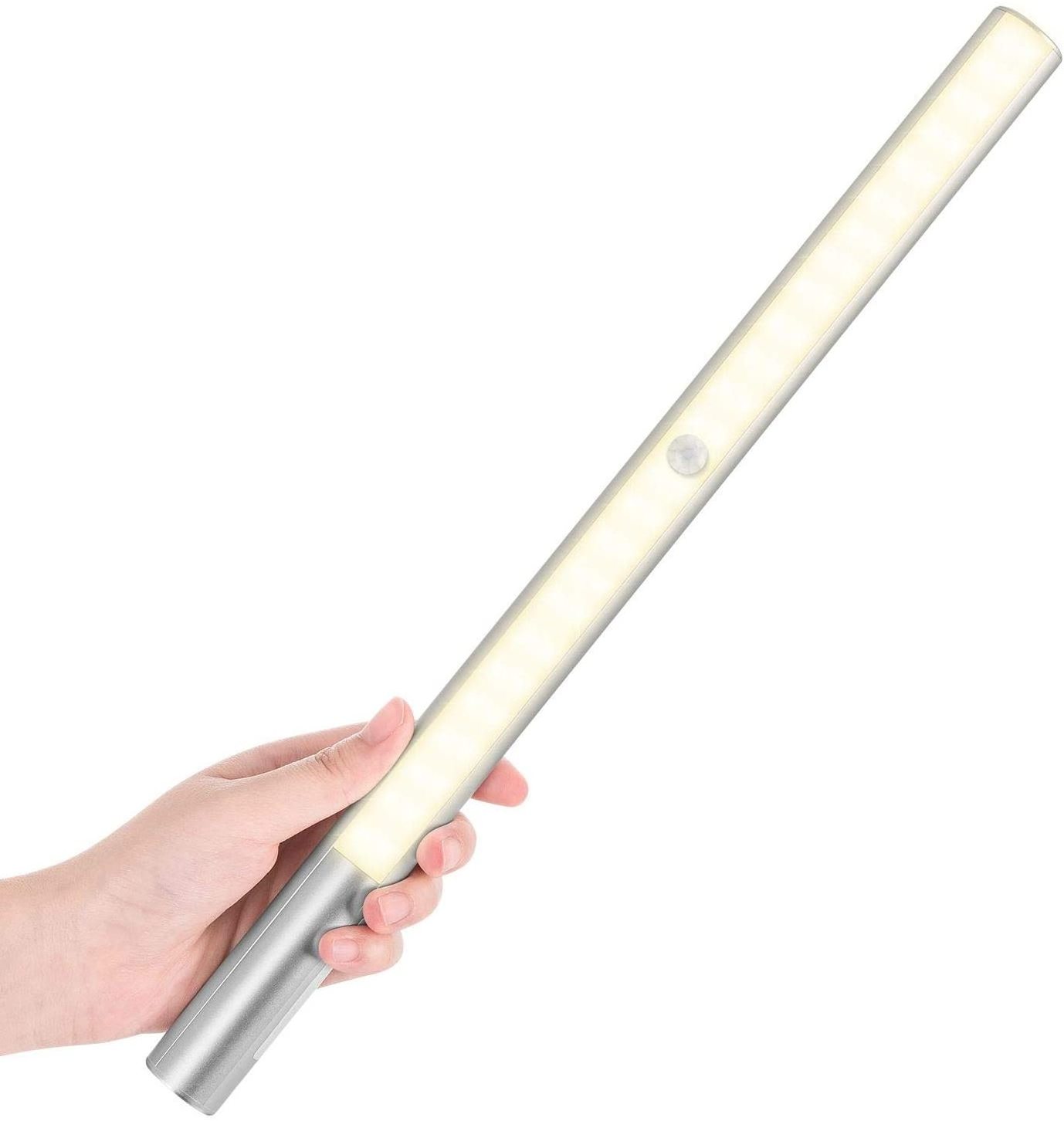

Prod u ct photos
Y ou may like
Packing & shipping & trade term
Packing
white inner box
1pcs/white box
143pcs/outer box
size of outer box:392*228*392mm
Gross weight of outer box:17.4KG
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time:
1-3
days for samples
;
5-25
days for batch goods.
Payment Terms
1. Payment:
T/T, Western Union, PayPal
;
30%
deposits;
70%
balance before delivery.
Why choose us?
1.Your inquiry related to our products or prices will be replied in 12 hours
2.Well-trained and experienced staffs to answer all your
i
nquires in fluent English
3.Strong OEM&ODM,any your customized products we can help you to design and put into production
4.Protection of your sales area, ideas of design and all your private information
5.strong engineering team, can help you resolve any problem in time.
About Us
Shenzhen Tuodi Electronics Co. Ltd was established in 2005,is a diversified company specializing in the developing and producing LED sensor light ,PIR motion switch,microwave sensor switch ,PIR motion sensor module,IR sensor switch and power supply.Our company is located at Bao ’ an Shenzhen,which cover an area of 3000 square meters.With the consistent an devote and creativity of Tuodi group,during the several years,we also passed some certifications,such as CE and Rohs,Tuodi brand has gained a great popularity in both of China and the oversea market.
industrial park(front gate)
production lin e
Take part in the exhibition
C ertifications & patents
FAQ
Q1.what' is the MOQ for order?
A1:100 0 PCS,also acc e pt trial order like samples order
Q2.What is the warranty for order?
A2: we have 2 years warranty.If any quality problems on our side occur r ed in 2 years we will send customer new products for replacement .
Q3.What's the color of the led?
A3:We have both white and warm white
Q4:Does the delay time can be adjusted?
A4.it need factory to preset before you order, usually the delay time is 15s
Q5.what kind of battery it need ?
A5: our product have two model,lithium battery and dry battery .
Q6.What is the lasting ti me of the battery?
A6:the normal lasting time is :3-6months depends on your using frequency
Q7.it will only light on at night ?
A7:Yes,it will only light on at night because it has light senor in.if you want it light on both daylight and night you can tell us before ordering.
Q 8 . Can I have my logo and choose other size ?
A8 : Sure ,we accept the customization because we have our own factory ,we can try our best to do your requirement.
