Quick Details
-
Application:
-
outdoors, Building Facade Cleaning
-
Design Style:
-
Industrial
-
Type:
-
ZLP
-
Place of Origin:
-
China
-
Brand Name:
-
Jiuchuang
-
Model Number:
-
zlp250/zlp500/zlp630/zlp800
-
Material:
-
Steel or Aluminum alloy
-
Voltage:
-
220V/380V
-
Certifications:
-
ISO9001:2000 & CE
-
Surface Treatment:
-
Painting & Hot-dip galvanized
-
Lifting height:
-
100m
-
Rated Loading:
-
100-1000kg
-
Platform Length:
-
according to customer's needs
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
outdoors, Building Facade Cleaning
-
Design Style:
-
Industrial
-
Type:
-
ZLP
-
Place of Origin:
-
China
-
Brand Name:
-
Jiuchuang
-
Model Number:
-
zlp250/zlp500/zlp630/zlp800
-
Material:
-
Steel or Aluminum alloy
-
Voltage:
-
220V/380V
-
Certifications:
-
ISO9001:2000 & CE
-
Surface Treatment:
-
Painting & Hot-dip galvanized
-
Lifting height:
-
100m
-
Rated Loading:
-
100-1000kg
-
Platform Length:
-
according to customer's needs

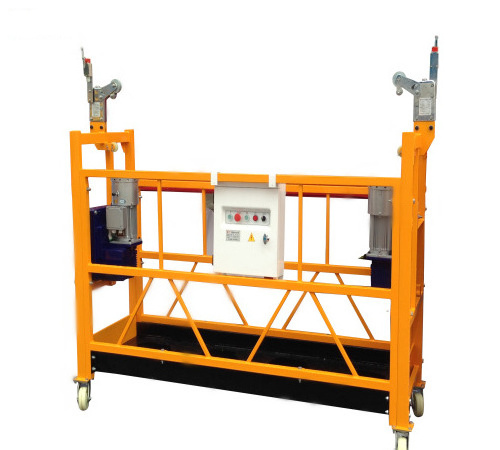

ZLP Suspended Platform building window glass cleaning machine
ZLP Series gondola is an ideal working access for facade works of high-rising buildings as facde construction, decoration,maintenance and so on ,And it is also widely used into elevator installation,ship building and repair,or in other works such as big-size tank,bridge,embankment and chimney.
consists of the components as below: hoists, safety locks, electric control system, suspend platform, suspension mechanism, counter weight, steel rope, etc
Technical dates:
Suspension Mechanism and Platform:
Surface treatment with hot galvanized craft,the steel is not easy to rust.The service life can be as long as 15 years,more durable than spraying process
Hoist:
With famous brand of motor, large braking torque
Inside gear technique (machining-heat treatment-fine machining-surface nitridation-fine grinding), high precision, long services life.
Lubrication oil is 220# industry gear oil.
Safety lock:
The lock cylinder uses special stainless steel, with strong impact resistance, higher toughness, wear resistant, long services life,safe and reliable.
Electric control box:
The electric components uses famous brand,CHNT,SCHNEIDER,quality is guaranteed.
Perfect circuit design,including leakage protection, current overload protection, emergency braking. Operate simply, safe and reliable.
Wire rope:
Our supplier is Jiangsu Fasten Steel cord Co.,Ltd."FASTEN"is famous brand in china
Cable:
Using National Standard cable3*1.8+2*1.5 and 3*2.5+2*1.5. The using life is longer than Non National Standard.
More photos of the machine:
|
Rated load |
630KG |
|||
|
Lifting speed |
9-11M/MIN |
|||
|
Platform Length |
6M=2 M+2M+2M
|
|||
|
Lifting height |
100M |
|||
|
Suspension mechanism |
2pieces |
Hot dipping galvanized |
||
|
Electric panel |
1piece |
Schneider contactor |
||
|
Surface: galvanized + baking finish, double protect |
||||
|
Intelligent control technology |
||||
|
Phase lose protector |
||||
|
Power failure when open the door |
||||
|
Hoist |
2pieces |
Model |
LTD6.3 |
|
|
Rated lifting force |
6.3KN |
|||
|
Motor power |
1.5KW |
|||
|
Voltage |
220V 3PHASE/380V 3PHASE |
|||
|
Pure Aluminum alloy shell: whole life warranty |
||||
|
Safety lock |
2pieces |
Allowable impulsive force |
30KN |
|
|
Locking rope distance |
≤ 100MM |
|||
|
Locking rope angle |
3 ° -8 ° |
|||
|
Electric cable |
100m/roll |
|||
