Quick Details
-
Brand Name:
-
LEDODM
-
Model Number:
-
SL-2110-700D
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Flux(lm):
-
18-22lm/led
-
Warranty(Year):
-
2-5 Years
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30 - 45
-
LED Light Source:
-
SMD2110
-
LED Brand:
-
Hongli/Everlight
-
LED Chip:
-
Epistar/Sanan
-
LED Quantity:
-
300LEDs/M, 360LEDs/M, 700 LEDs/m
-
PCB Width:
-
4mm, 5mm, 8mm
-
12V Cutting Mark:
-
Each 3LEDs with a cutting mark
-
24V Cutting Mark:
-
Each 6LEDs with a cutting mark
-
Package:
-
5M/Reel, 10M/Reel
Quick Details
-
Color Temperature(CCT):
-
2700K/3000K/4000K/6000K
-
Control Mode:
-
Touch Control, APP Control, Remote Control, Switch Control, Voice control, Sensor control, Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEDODM
-
Model Number:
-
SL-2110-700D
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Flux(lm):
-
18-22lm/led
-
Warranty(Year):
-
2-5 Years
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30 - 45
-
LED Light Source:
-
SMD2110
-
LED Brand:
-
Hongli/Everlight
-
LED Chip:
-
Epistar/Sanan
-
LED Quantity:
-
300LEDs/M, 360LEDs/M, 700 LEDs/m
-
PCB Width:
-
4mm, 5mm, 8mm
-
12V Cutting Mark:
-
Each 3LEDs with a cutting mark
-
24V Cutting Mark:
-
Each 6LEDs with a cutting mark
-
Package:
-
5M/Reel, 10M/Reel

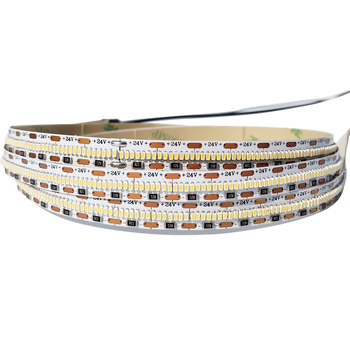

HIGH DENSITY 2110 LED Strip 300LEDs/M 360LEDs/M 700LEDs/M, CRI 90, 3 Years Warranty
Comparison:
First: 700LEDs/M
Second: 360LEDs/M
Third: 300LEDs/M
Parameters:
|
Shenzhen Ledodm Lighting Co.,Ltd Multiple choices and customized services for you |
|||||||
| MODEL NO. | LED TYPE | LED QTY | VOLTAGE | POWER | PCB SIZE | COLOR | IP GRADE |
| SL-2110-700D | SMD2110 | 700LEDS/M | DC24V | 18W/M | L5000*W8MM |
2700K 3000K 4000K 5000K 6000K RED GREEN BLUE |
IP20
IP65
IP66
IP68 |
| SL-2110-360D | 360LEDS/M | 18W/M | L5000*W8MM | ||||
| SL-2110-300D | 300LEDS/M | 16W/M | L5000*W8MM | ||||
| SL-2110-300D5 | 300LEDS/M | 14W/M | L5000* W5MM | ||||
| SL-2110-280D | 280LEDS/M | 12W/M | L5000* W4MM | ||||
| SL-2110-240D | 240LEDS/M | DC12V/24V | 14.4W/M | L5000*W8MM | |||
| SL-2110-180D | 180LEDS/M | 12W/M | L5000*W8MM | ||||
| SL-2110-180D4 | 180LEDS/M | 12W/M | L5000* W4MM | ||||
| SL-2110-120D | 120LEDS/M | 9.6W/M | L5000*W8MM | ||||
| SL-2110-60D | 60LEDS/M | 4.8W/M | L5000*W8MM | ||||
SMD2110 LED STRIP IN 5MM WIDTH , 300LEDS/M, 3000K , DC24V, IP20, 3 YEARS WARRANTY
SMD2110 LED STRIP IN 8MM WIDTH,
300LEDS/M, 3000K
, DC24V,
IP65
, 3 YEARS WARRANTY
SMD LED STRIP 2110, 300LEDS/M, 3000K , 24V, 8MM IN WIDTH, IP20 , 18W/M, 3 YEARS WARRANTY
SMD2110 LED STRIP, 700LEDS/M, DC24V, 6000K , 18W/M, IP20 , 3 YEARS WARRANTY
SMD2110 LED STRIP, 700LEDS/M, DC24V, 6000K , 18W/M, IP68 , 3 YEARS WARRANTY
Introduction
The newest LED SMD 2110 with small size 2.1* 1.0mm, produced with epistar chip and copper high bracket, is the best innovation for led strip light, better color consistency and strong led bracket. Different modes of SMD2210 led strips for choice. 60LEDs/M, 120LEDs/M.180LEDS/m, 224LEDs/M, 240LEDs/m, 280LEDs/M, 300LEDs/M. 308LEDs/M. 360LEDs/m and 700LEDs/m. Color temperature rangesfrom 2700K to 6500K. and red. green, blue are all available. Small size led can be high density quantity on one row led strip lights, perfect for led linear lighting.
Product Features:
- 3 Years Warranty
- 90+ High CRI
- Dimmable Brightness
- 120° Beam Angle
- Single Bin LED Availble
- 3 MacAdam Available
- 3M Adhesive Tape
IP20 ----Non-waterproof, Using it in indoor and keep away from rain wet
IP65 ---- Anti small water drop, fit on damp location
IP66/IP67 ---- Anti big water drop, fit on outdoor exterior building
IP68 ---- Fully waterproof, it also be placed in the swimming pool
Application:
ABOUT LEDODM
.
LEDODM'S Production Process:
DELIVERY TIME:
3-15 days after confirming order, detail delivery date should be decided according to production season and order quantity.
If you need more files of our price list, data sheet, catalog etc, please leave a message, we will get back to you soon.
