Quick Details
-
Range of Spindle Speed(r.p.m):
-
160 - 1360 r.p.m
-
Max. Turned Length (mm):
-
800 mm
-
Spindle Motor Power(kW):
-
0.55
-
Year:
-
2021
-
Place of Origin:
-
CHINA JIANGSU
-
Brand Name:
-
SMAC
-
Model Number:
-
HQ800
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1130x580x1100mm
-
Weight (KG):
-
245 KG
-
Swing over bed:
-
420mm
-
Distance between centers:
-
500mm/ 800mm
-
Max. longitudinal travel:
-
440mm/740mm
-
Max. cross travel:
-
200mm
-
Taper of spindle:
-
MT4
-
Spindle hole:
-
28mm
-
Step of spindle speed:
-
7 steps
-
Range of spindle speed:
-
160-1360rpm
-
Barrel travel:
-
70mm
-
Taper of center:
-
MT3
Quick Details
-
Max. Length of Workpiece (mm):
-
420
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
28
-
Range of Spindle Speed(r.p.m):
-
160 - 1360 r.p.m
-
Max. Turned Length (mm):
-
800 mm
-
Spindle Motor Power(kW):
-
0.55
-
Year:
-
2021
-
Place of Origin:
-
CHINA JIANGSU
-
Brand Name:
-
SMAC
-
Model Number:
-
HQ800
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1130x580x1100mm
-
Weight (KG):
-
245 KG
-
Swing over bed:
-
420mm
-
Distance between centers:
-
500mm/ 800mm
-
Max. longitudinal travel:
-
440mm/740mm
-
Max. cross travel:
-
200mm
-
Taper of spindle:
-
MT4
-
Spindle hole:
-
28mm
-
Step of spindle speed:
-
7 steps
-
Range of spindle speed:
-
160-1360rpm
-
Barrel travel:
-
70mm
-
Taper of center:
-
MT3
Recommend Products
Products Description

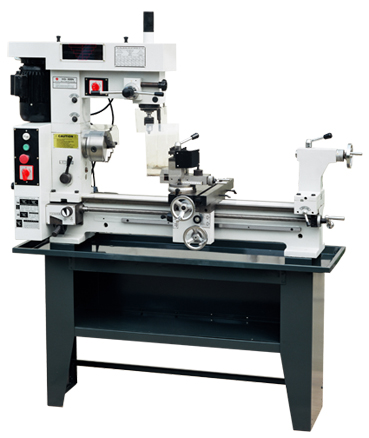

Multi-purpose lathe mill drill machine HQ800:
Compact, versatile combination machine.
Adjustable height drill/mill head increase capacity.
Characteristic
Fine feed handle and clutch for precision milling.
Spindle is supported by high precision bearing.
T-slot cross slide.
Power longitudinal feed allows threading.
High precision chuck.
Specifcation
|
|
MODEL
|
HQ500/HQ800
|
|
TURNING
|
Swing over bed
|
420mm(16-5/9")
|
|
|
Distance between centers
|
500mm/ 800mm(20"/31-1/2")
|
|
|
Max. longitudinal travel
|
440mm/740mm(17-1/3"/29-1/8")
|
|
|
Max. cross travel
|
200mm(7-7/8")
|
|
|
Taper of spindle
|
MT4
|
|
|
Spindle hole
|
φ28mm(1-1/9")
|
|
|
Step of spindle speed
|
7 steps
|
|
|
Range of spindle speed
|
160-1360rpm
|
|
|
Barrel travel
|
70mm(2-3/4")
|
|
|
Taper of center
|
MT3
|
|
|
Metric thread range
|
0.2-6mm
|
|
|
Inch thread range
|
4-120T.P.I
|
|
|
Longitudinal range of automatic feeding
|
0.05-0.35mm/ 0.002-0.014"
|
|
|
Cross range of automatic feeding
|
0.05-0.35mm/0.002-0.014"
|
|
DRILLING & MILLING
|
Max. drilling capacity
|
φ22mm(7/8")
|
|
|
Worktable size (L×W)
|
475×160mm(18/1-2"×6-2/7)
|
|
|
Max. end mill
|
φ28mm(1-1/9")
|
|
|
Max. face mill
|
φ80mm(3-1/7")
|
|
|
Distance between spindle center and column
|
285mm(11-2/9")
|
|
|
Distance between spindle and worktable
|
306mm(12")
|
|
|
Headstock travel of up and down
|
110mm(4-1/3")
|
|
|
Spindle taper
|
MT3
|
|
|
Step of spindle speed
|
16steps
|
|
|
Range of spindle speed
|
120-3000r.p.m
|
|
|
Swivel degree of headstock
|
±360°
|
|
MOTOR
|
Motor power
|
0.55kw
|
|
SHIPMENT DATA
|
Packing size
|
1130×580×1100mm
|
|
|
N. weight/G .weight
|
245kg/280kg
|
|
|
Loading amount
|
40pcs/20’container
|
