Quick Details
-
Brand Name:
-
ORL
-
Keywords:
-
H fin economizer
-
Product name:
-

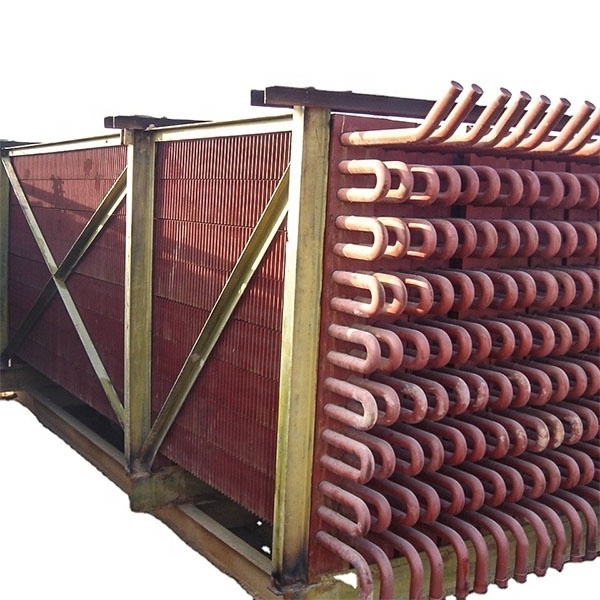

Biomass Steam Boiler Heat Exchanger H Fin Tube Stack Economizer
-
Application:
-
biomass steam boiler
-
Color:
-
Customer's Requirement
-
Material:
-
Carbon Steel
-
Usage:
-
Boiler Auxiliary Accessory
-
Advantage:
-
High Efficiency
-
Certificate:
-
ISO9001CE
-
Weight:
-
customized
-
color:
-
Customers' Requirement
Quick Details
-
Type:
-
BOILER ECONOMIZER
-
Weight (KG):
-
6200
-
Place of Origin:
-
JIANGSU, CHINA
-
Brand Name:
-
ORL
-
Keywords:
-
H fin economizer
-
Product name:
-
Biomass Steam Boiler Heat Exchanger H Fin Tube Stack Economizer
-
Application:
-
biomass steam boiler
-
Color:
-
Customer's Requirement
-
Material:
-
Carbon Steel
-
Usage:
-
Boiler Auxiliary Accessory
-
Advantage:
-
High Efficiency
-
Certificate:
-
ISO9001CE
-
Weight:
-
customized
-
color:
-
Customers' Requirement
Product Description
H-Fin Tube Boiler Economizer: Pioneering Efficiency and Sustainability
The H-Fin Tube Boiler Economizer works by extracting waste heat from boiler flue gases and utilizing it to preheat the boiler's feedwater. This process of waste heat recovery and preheating significantly bolsters the overall efficiency of your boiler system, leading to considerable fuel savings and diminished operating costs.
Advantages
Exceptional Efficiency:
Our economizer harnesses waste heat to dramatically enhance the thermal efficiency of your boiler system.
Fuel and Cost Savings: By mitigating the heat generated by the boiler, our economizer decreases fuel consumption, resulting in long-term cost savings.
Fuel and Cost Savings: By mitigating the heat generated by the boiler, our economizer decreases fuel consumption, resulting in long-term cost savings.
Enhanced Heat Transfer:
The unique H-fin design augments the surface area for heat transfer, resulting in superior efficiency.
Durability:
Crafted from premium materials, our H-Fin Tube Economizer offers exceptional durability and long service life.
Eco-friendly: By reducing fuel consumption, our economizer helps lower CO 2 emissions, thus promoting more sustainable operations.
Eco-friendly: By reducing fuel consumption, our economizer helps lower CO 2 emissions, thus promoting more sustainable operations.
Economizer Maintenance: Preserving Efficiency and Longevity
Economizer maintenance is a vital part of ensuring the overall efficiency and longevity of a boiler system. This process generally involves a series of standard and special projects tailored to the specific needs of your system. Here's a rundown of some typical maintenance activities:
Cleaning the Tubes:
Regular cleaning of the outer tube walls to remove accumulated ash is essential to maintain optimal heat transfer efficiency.
Tube Inspection and Replacement: Regular checks should be performed on the tubes for signs of wear, deformation, or corrosion. Any tubes or bends that fail to meet the standards should be promptly replaced.
Support and Anti-Wear Device Maintenance: The supports, tube clamps, and anti-wear devices should be regularly inspected and repaired or replaced as necessary.
Tube Inspection and Replacement: Regular checks should be performed on the tubes for signs of wear, deformation, or corrosion. Any tubes or bends that fail to meet the standards should be promptly replaced.
Support and Anti-Wear Device Maintenance: The supports, tube clamps, and anti-wear devices should be regularly inspected and repaired or replaced as necessary.
Collector Support Adjustment:
The collector support should be checked and adjusted as needed to ensure proper alignment and operation.
Interior Cleaning: The manhole should be opened regularly to check for internal corrosion and scaling, and to clean the interior.
Tube Alignment: The tube rows should be correctly aligned to ensure optimal operation and heat transfer.
Tube Creep Measurement: Regular measurements of tube creep can help detect potential issues early and prevent serious problems down the line.
Special Maintenance Procedures: In addition to these standard procedures, some special maintenance projects might be required based on the specific needs and condition of your system:
Weld Repair or Tube Replacement: If there are a large number of defective welds on the serpentine tubes, or if more than 5% of the tubes need replacement, these issues should be addressed promptly.
Acid Cleaning: The economizer may require acid cleaning to remove scale and other deposits that can reduce efficiency.
Economizer Replacement: In some cases, it may be necessary to replace the entire economizer unit.
Collector Replacement: If the collector is damaged or not working efficiently, it may need to be replaced.
Surface Adjustment: If needed, the heating surface of the economizer can be increased or decreased by more than 10% to optimize its performance.
These regular and special maintenance tasks will help keep your economizer—and by extension, your boiler system—in top operating condition, maximizing its efficiency, and lifespan.
Interior Cleaning: The manhole should be opened regularly to check for internal corrosion and scaling, and to clean the interior.
Tube Alignment: The tube rows should be correctly aligned to ensure optimal operation and heat transfer.
Tube Creep Measurement: Regular measurements of tube creep can help detect potential issues early and prevent serious problems down the line.
Special Maintenance Procedures: In addition to these standard procedures, some special maintenance projects might be required based on the specific needs and condition of your system:
Weld Repair or Tube Replacement: If there are a large number of defective welds on the serpentine tubes, or if more than 5% of the tubes need replacement, these issues should be addressed promptly.
Acid Cleaning: The economizer may require acid cleaning to remove scale and other deposits that can reduce efficiency.
Economizer Replacement: In some cases, it may be necessary to replace the entire economizer unit.
Collector Replacement: If the collector is damaged or not working efficiently, it may need to be replaced.
Surface Adjustment: If needed, the heating surface of the economizer can be increased or decreased by more than 10% to optimize its performance.
These regular and special maintenance tasks will help keep your economizer—and by extension, your boiler system—in top operating condition, maximizing its efficiency, and lifespan.
Economizer types
We can manufacture three types of boiler economizer, bare tube economizer, H-finned tube economizer and spiral finned tube economizer.
1.Bare Tube Economizer
Bare tube economizers are commonly used in large power plants and industrial boilers where the quality of feedwater is high and there's less risk of scaling or deposits.
Typically, these economizers are made from carbon steel, alloy steel, or stainless steel tubes depending on the operating conditions and corrosiveness of the flue gases.
2.H-Finned Tube Economizer
H-finned tube economizer is high efficient heat exchanger economizer which is consisted of H-finned tubes. H-finned tube economizer can enlarge the heat exchange area and reduce the number of tubes. It also can increase the flue gas flow area in order to reduce the flue gas flow speed and abrasion.H-finned tube can be made as double H finned tubes , with high rigidness to fit long tube row.
3.Spiral Finned Tube Economizer
The spiral finned tube economizer is a newly designed heat transfer equipment, consists of spiral fin tubes to overcome the serious abrasion and short service time.
Product Paramenters
|
Tube Material
|
Carbon steel (such as ASTM A179 or ASTM A192), Stainless steel (e.g., ASTM A213), or Alloy steel (e.g., ASTM A335)
|
|
Fin Material
|
Aluminum and copper
|
|
Header and Manifold Material
|
Carbon steel or Stainless steel
|
|
Material standard
|
ASTM,ASME, EN or GB etc.
|
|
Dimension
|
Customization
|
|
Applications
|
Power plants, Industrial manufacturers, Commercial buildings, Maritime industry, and Waste-to-energy plants
|
|
Process
|
Tube Preparation --> Fin Manufacturing --> Fin Attachment --> Quality Control
|
Related Products
Boiler superheater
Boiler header
Boiler waterwall panel
Why Choose Us
SUZHOU ORL POWER ENGINEERING CO.,LTD
ORL is a leading compamy of manufacturing industrial boilers, power plant boilers and boiler parts(including steam drum,waterwall panel,heater,economizer,evaporator,superheater,H-finned economizer,spirial fin tube,air preheaters,heat exchangers,flues etc.),We supply clients with seamless steel tubes/pipes(ASME,EN or BS).
Service
ORL provides our customer with full range of services including boiler design,fabrication,installation and commissioning, boiler maintenance,and supervision at site.Our pruduct and service include design and manufacture industrial boilers,pressure vessels and tanks,and pressure parts for power plant boilers(600MW,or 1000 MW).
Certificates
Verification Certificates of equipments: ASTM, ASME, EN, GB, IBR etc
.
Logistics
For 90% of shipment,we will go by sea,to all main continents such as Middle East,Africa,Oceania and Europe etc.Either by container or RORO/Bulk shipment.
Customers
We are a professional manufacturer of industrial boilers in China.With the scientific progressive conception of rapid introduction,we make our machinery cover all over the overseas market.We have been producing our goods with mature techniques and first-class quality.
FAQ
Q1:How long is the warranty period?
1) All products are manufactured under ORL strict fabrication procedures, in accordance with the ISO or ASME / CE / GB codes.
2) Each process is operated by professional and skilled workers, supervised by professional QC.
3) Materials are traceable, and all processes are recorded and put in Data Book. Data Book will be provided to customer together with the product.
Before sales:
Boiler design, Thermo calculation, Strength calculation, boiler on-site measurement, vessel design, boiler consultancy, ITP (Inspection and Test Plan), Project fabrication schedule, etc.
After sales:
1. Technical training of the supply equipment as per customer requirements.
2. We promise replacement under warranty.
3. We can supply the maintenance spare parts.
4. Regular contact / call back, or visit customers.
5. On time response to email and phone calls of your complaints or consultation.
We provide 12 months warranty for our products.
Q2:How do you control the quality?
Q3:What certifications do you have?
We can supply the products with ASME / CE / GB certificates, certified by international third-party, such as TUV, ABS, SGS, BV, Lloyd’s, etc.
Q4:What kind of service do you provide?
Q5:Are you a factory or trading company, where are you located？
We are a professional boiler design and manufacturing group company with over 20years experience in the power industry. We are 80km (1.5 hours by car) away from Shanghai. We offer pickup service at Shanghai airport for your visit.
