Our tube fittings stainless steel, compression tube fitting and stainless steel tubing fittings, stainless steel tube fittings, are designed availablely in many connections and configurations. Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FD-LOK
-
Model Number:
-
C
-
Available size:
-
1/16"-1 1/2"(2mm to 38mm)
-
Working Pressure:
-
6000 psi
-
Product name:
-
Swagelok Type Union Cross Stainless Steel Tube Fittings
-
Certificate:
-
ISO 9001:2008
-
Pressure:
-
6000psi
-
Body material:
-
316 S.S
-
Brand:
-
FD-LOK
-
Application:
-
Industry
-
Usage:
-
Gas Oil
-
MOQ:
-
1 Piece
-
Certification:
-
BV, CE, ISO
Quick Details
-
Technics:
-
Forged
-
Shape:
-
Cross
-
Head Code:
-
Hexagon
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FD-LOK
-
Model Number:
-
C
-
Available size:
-
1/16"-1 1/2"(2mm to 38mm)
-
Working Pressure:
-
6000 psi
-
Product name:
-
Swagelok Type Union Cross Stainless Steel Tube Fittings
-
Certificate:
-
ISO 9001:2008
-
Pressure:
-
6000psi
-
Body material:
-
316 S.S
-
Brand:
-
FD-LOK
-
Application:
-
Industry
-
Usage:
-
Gas Oil
-
MOQ:
-
1 Piece
-
Certification:
-
BV, CE, ISO
Product Description

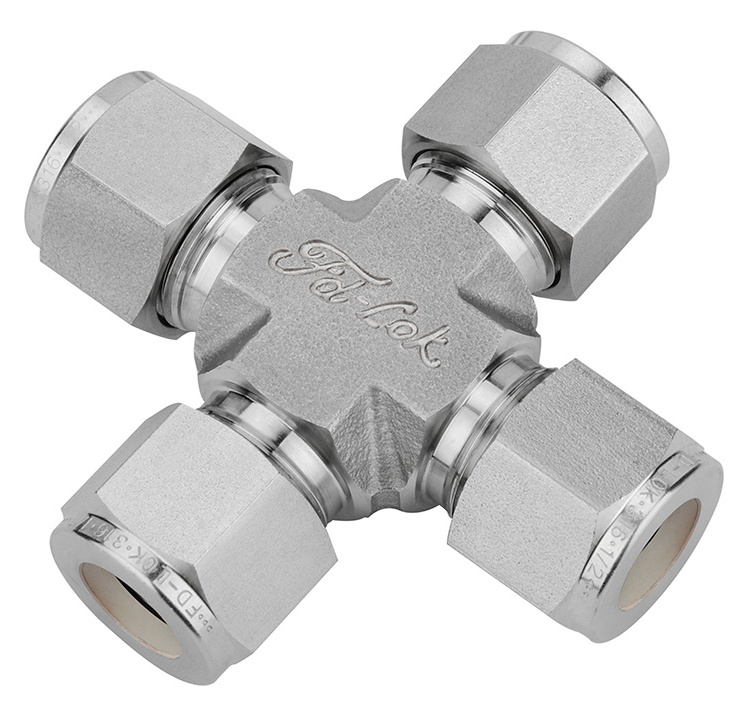

Product Name: Swagelok type union Cross Stainless Steel Tube Fittings
1) Available sizes: 1/16 ~ 1 1/2 in. and 2 ~ 38mm
2) Nominal pressure: 6000 psi
3) Applicable temperature: 150 ~ 400°C
4) Applicable medium: Oil, Water, Gas and other corrosive or noncorosive medium
5) The material for manufacture: 304, 316, 316L,304L
6) The demands for fitting pipes: φ4 toφ42
7) Cone thread: G, R, GPT, NPT, BSP, DIN, UNF, PT,etc.
8) Consistent gaugeability upon initial installation.
9) Safe, reliable and leak-proof connection, easy installation and sufficient pull-up, no torque transmission.
10) Specified secification available upon request.
|
Product name
|
Swagelok type union Cross Stainless Steel Tube Fittings
|
|
|
||
|
Material
|
316SS,316L,304SS,304L
|
|
|
||
|
Working temperature
|
6000 psi
|
|
|
||
|
Size
|
1/16"- 1 1/2"(2mm to 38 mm)
|
|
|
||
|
Technics
|
Forged bar stock
|
|
|
||
|
Connection
|
Double ferrules tube fittings
|
|
|
||
|
Applicable medium
|
oil,gas,water or other medium
|
|
|
||
|
Payment term
|
stock products 100% payment before shipping out . In generally,30% deposit , 70% balance against B/L copy, L/C is also acceptable. Other payment method is negotiable
|
|
|
||
|
Packaging
|
each one in poly bag and small box, then in export wooden case
|
|
|
||
|
Other service |
We can provide you the below detailed support :
1.Providing the catalog to choose . 2.The drawing to confirm 3.Test report 4.Quality assurence 5.Free sample can be sent to test quality before place an order 6.Professional packaging and delivery |
|
|
||
|
|
|
|
|
||
Related Products
Our Certifications
Our Company
Workshop
Our workshop
Exhibition
Our Exhibition
Main Products
Tube fitting
Needle valve & Ball valve
FD-LOK needle valves has 10 different types,needle valve have several tips can be choosed, such as Blunt Tip, Regulating Tip, Soft Tip and Non-rotating Tip.
Three way ball valves widely used in many solution systems. We also provide them in parts. We provide stainless steel ball valves not only in 316, but also special materials such as inconel, monel, hastelloy, incolloy, duplex and super duplex.
Block &Bleed valve
FD-LOK Double block and bleed valves is including DBB valve series, Single block and bleed valves and bleed valves series, DB series, SB series. Different materials can be choosed, such as Stainless steel, Duplex, Inconel, Monel.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer,not trading company.
Q: Why choose you?
A: We are factory,so we have advantages in quality control ,competitive price and fast delivery.
Q: What is your terms of payment ?
A: T/T, L/C, D/A, D/P
