Quick Details
-
Color:
-
Full Color
-
Panel Size:
-
320 mm * 160 mm
-
Place of Origin:
-
Henan, China
-
Model Number:
-
P4
-
Brightness:
-
2000nit
-
pixel density:
-
65200
-
Contrast Ratio:
-
5000:1
-
Color Depth:
-
Full Color
-
Lifespan (hours):
-
≥100,000 Hours
-
IP Rating:
-
IP65
-
HS Code:
-
8531200000
-
Resolution:
-
256*192 Dots
-
View Angle（H/V）:
-
160~160
-
Warranty:
-
3 Years
-
Material:
-
Die-cast Aluminum
-
Refresh rate:
-
3840Hz
-
Max Power Consumption:
-
520 W/SQM
-
Ave.Power Consumption:
-
220 W/SQM
-
Pixel Structure:
-
SMD2121
-
White balanced brightness(nits):
-
1500-6500CD/m
-
Cabinet resolution(W*H):
-
256*128dots
-
Weight (KG):
-
15±0.5KG
-
Transparent rate:
-
85% contrast 7000:01:00
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
Pingcai
-
Color:
-
Full Color
-
Panel Size:
-
320 mm * 160 mm
-
Place of Origin:
-
Henan, China
-
Model Number:
-
P4
-
Brightness:
-
2000nit
-
pixel density:
-
65200
-
Contrast Ratio:
-
5000:1
-
Color Depth:
-
Full Color
-
Lifespan (hours):
-
≥100,000 Hours
-
IP Rating:
-
IP65
-
HS Code:
-
8531200000
-
Resolution:
-
256*192 Dots
-
View Angle（H/V）:
-
160~160
-
Warranty:
-
3 Years
-
Material:
-
Die-cast Aluminum
-
Refresh rate:
-
3840Hz
-
Max Power Consumption:
-
520 W/SQM
-
Ave.Power Consumption:
-
220 W/SQM
-
Pixel Structure:
-
SMD2121
-
White balanced brightness(nits):
-
1500-6500CD/m
-
Cabinet resolution(W*H):
-
256*128dots
-
Weight (KG):
-
15±0.5KG
-
Transparent rate:
-
85% contrast 7000:01:00
Product Description
Specification

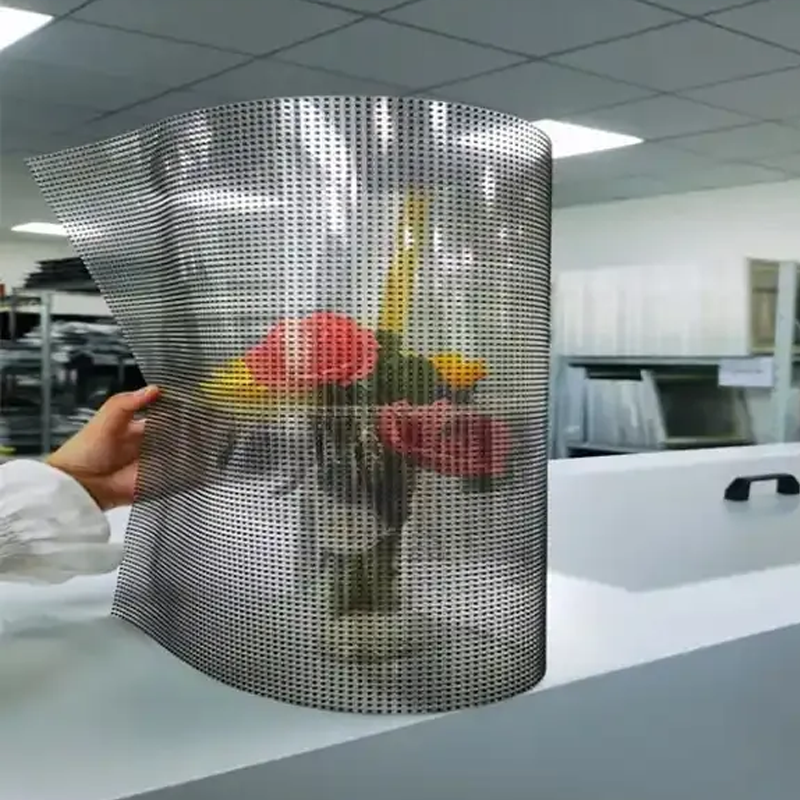

1.Great transparency from 95%.
2. High brightness 200-2500 nits for different application.
3. Ultra light and thin cabinet , save your transportation cost .
4. Good daylighting and delicate decoration , Light,thin, strong structure , Super thin design with only 80mm thickness.
5. No need to change any Building Structure for installation.
6. Front and rear maintenance both are ok .
7. Good heat dissipation.
2. High brightness 200-2500 nits for different application.
3. Ultra light and thin cabinet , save your transportation cost .
4. Good daylighting and delicate decoration , Light,thin, strong structure , Super thin design with only 80mm thickness.
5. No need to change any Building Structure for installation.
6. Front and rear maintenance both are ok .
7. Good heat dissipation.
|
Product model
|
|
P3.91
|
P4
|
P1.25
|
P1.379
|
P2
|
P2.5
|
P3
|
||||||
|
Module
|
Pixel structure
|
SMD2121
|
SMD2121
|
SMD2727
|
SMD3535
|
SMD2121
|
SMD2121
|
SMD2121
|
||||||
|
|
Pixel pitch(mm)
|
3.91
|
4
|
1.25
|
1.379
|
2
|
2.5
|
3
|
||||||
|
|
screen resolution(dot/m)
|
32,768
|
62,500
|
640,000
|
52,5625
|
25,0000
|
160,000
|
111,111
|
||||||
|
Cabinet
|
cabinet size(mm)(W*H*D)
|
1000*1000*80mm
|
|
|
|
|
|
|
||||||
|
|
Cabinet resolution(W*H)
|
256*128dots
|
240*240 dots
|
512*384 dots
|
464*348 dots
|
320*240
|
256*192
|
192*192 |
||||||
|
|
weight (KG)
|
15±0.5KG
|
|
|
|
|
|
|
||||||
|
Optical parameters
|
White balanced brightness(nits)
|
1500-6500CD/m
|
|
|
|
|
|
|
||||||
|
|
Color temperature(K)
|
2000-9300
|
|
|
|
|
|
|
||||||
|
|
Viewing Angle(°)
|
Horizontal view 160°/Vertical view 140°
|
|
|
|
|
|
|
||||||
|
|
Transparent rate
|
95%
|
|
|
|
|
|
|
||||||
|
|
contrast
|
7000:01:00
|
|
|
|
|
|
|
||||||
|
Electrical parameter
|
Peak power consumption (W/㎡)
|
600
|
600
|
600
|
600
|
600
|
600
|
600
|
||||||
|
|
average power consumption (W/m
2
)
|
200
|
|
|
|
|
|
|
||||||
|
|
power supply requirements
|
AC100-240V (50-60Hz)
|
|
|
|
|
|
|
||||||
|
Performance
|
Drive way
|
16/8S
|
10/8S
|
64/8S
|
58/8S
|
40/8S
|
32/8S
|
32/8S
|
||||||
|
|
frequency (Hz)
|
50&60
|
|
|
|
|
|
|
||||||
|
|
Refresh rate (Hz)
|
≥1920
|
≥1920
|
＞3K
|
＞3K
|
＞3K
|
≥1920/3840
|
≥1920/3840
|
||||||
|
Parameter
|
lifespan
|
100000h
|
|
|
|
|
|
|
||||||
|
|
Working stability temperature（℃）
|
-25 – 80
|
|
|
|
|
|
|
||||||
|
|
Storage stability temperature(℃)
|
-40 – 80
|
|
|
|
|
|
|
||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
