Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Doortec
-
Model Number:
-
HH115
-
Type:
-
Sliding
-
Max door weight(single):
-
1*150kg
-
Max door weight(double):
-
2*130kg
-
Door leaf width:
-
700-1300mm
-
Opening speed:
-
150-500mm/s(Adjustable)
-
Closing speed:
-
100-450mm/s(Adjustable)
-
Voltage:
-
AC90-240V 50Hz-60Hz
-
Operating Temperature:
-
-20℃~70℃
-
Square motor:
-
24V 55W brushless DC motor
-
Name:
-
high quality commercial interior glass door,automatic sliding door
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Hotel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Doortec
-
Model Number:
-
HH115
-
Type:
-
Sliding
-
Max door weight(single):
-
1*150kg
-
Max door weight(double):
-
2*130kg
-
Door leaf width:
-
700-1300mm
-
Opening speed:
-
150-500mm/s(Adjustable)
-
Closing speed:
-
100-450mm/s(Adjustable)
-
Voltage:
-
AC90-240V 50Hz-60Hz
-
Operating Temperature:
-
-20℃~70℃
-
Square motor:
-
24V 55W brushless DC motor
-
Name:
-
high quality commercial interior glass door,automatic sliding door

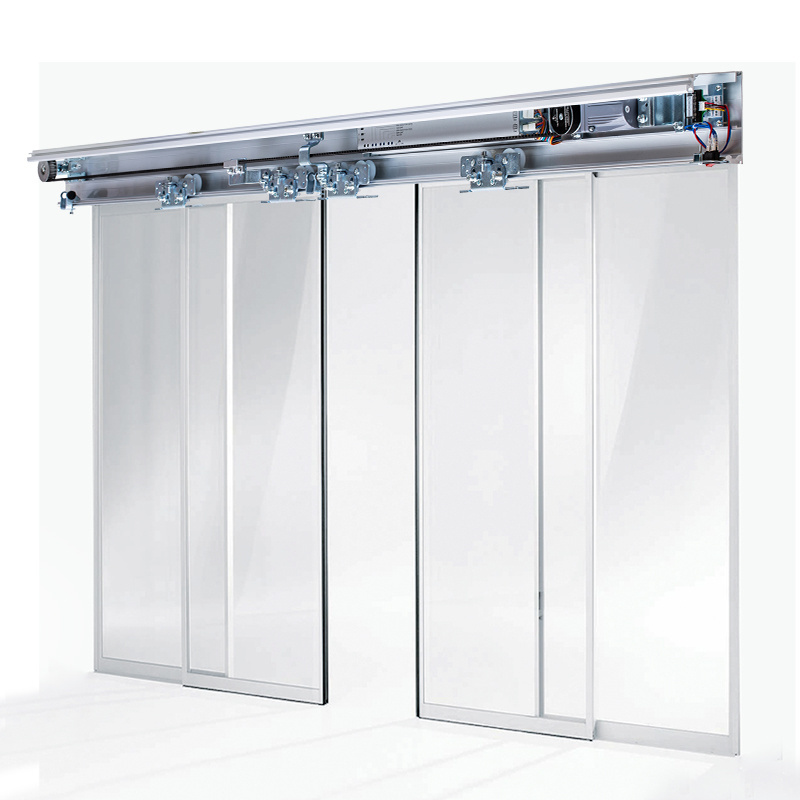

Doortec commercial interior glass door automatic sliding door HH115
|
Specifications
|
HH115
|
|
|
||
|
Door leaf mode
|
Single-opening
|
|
Double-opening
|
||
|
Door leaf weight
|
Max 150kg
|
|
Max 2*130kg
|
||
|
Door leaf width
|
DW=700-1300mm
|
|
DW=600-1250mm
|
||
|
Voltage
|
AC 90-240V, 50Hz-60Hz
|
|
|
||
|
Opening speed
|
15-45cm/s (Adjustable)
|
|
|
||
|
Closing speed
|
10-43cm/s (Adjustable)
|
|
|
||
|
Opening time
|
0-9second (Adjustable)
|
|
|
||
|
Manual open force
|
<40N
|
|
<50N
|
||
|
Motor
|
24V,80W brushless DC motor
|
|
|
||
|
Operating temperature
|
-20℃ ~ +70℃
|
|
|
||
DATA Of HH115 Automatic sensor sliding door operator
Microprocessor control technology and advanced mechanical manufacture
Auto closing when power one, and self-learning when actived
Digital screen ,easy and exact to adjust working data
Brushless DC motor ,long working life (2 million times tested) and low noise (less than 40dp)
Anti-clamp when close and open
Function terminals for electronic lock ,access keypad ,function keypad ,function remote and so on
Special terminals for anti-clamp side sensor ,more safety
Square motor for narrow door entrance (HH115)
Doortec Automatic door Co.,Ltd. is a leading manufacturer of automatic sliding door ,automatic swing door ,automatic folding door,telescopic door,hospital door,break up system ,sensors ,control systems and releative accessories .
Packing details:
the motor ,the controller ,connection board, pulley,belt ,hanger ,stopper ,senor and other spare parts will be packed in each small box ,and boxes will be packed into one carton.
the aluminum rail will be packed into another carton .
Delivery details:
2 to 10days after payment received
